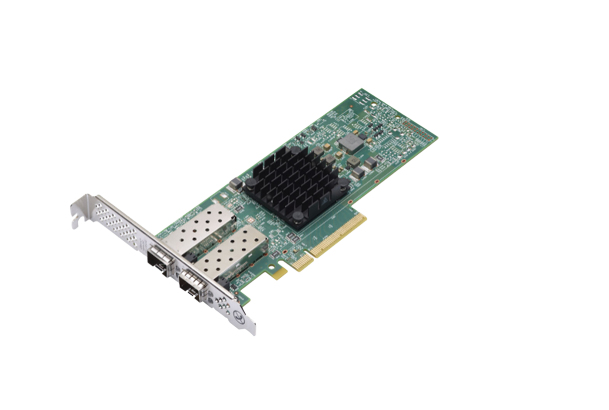

4XC7A08237 network card Internal Fiber 25000 Mbit/s
Model 4XC7A08237EAN 889488497300
17 specifications
- Speed25000 Mbit/s
- ConnectivityWired
- ColourBlack, Green, Stainless steel
- InternalYes
- Operating temperature (T-T)0 - 55 °C
- Width167 mm
Overview
- Speed
- 25000 Mbit/s
- Connectivity
- Wired
- Colour
- Black, Green, Stainless steel
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 55 °C
- Width
- 167 mm
- Brand
- Lenovo
- Category
- Network Card
- Model
- 4XC7A08237
- Part number
- 4XC7A08237
- EAN / UPC
- 889488497300
- Also known as
- Lenovo 4XC7A08237 network card Internal Fiber 25000 Mbit/s
Specifications
17 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber optic connector | SFP28 |
| Fiber ports quantity | 2 |
| PCI version | 4.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 25000 Mbit/s |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | Server |
| Product colour | Black, Green, Stainless steel |
| Compatible products | SR635 V3 (7D9H / 7D9G) SR655 V3 (7D9F / 7D9E) SR645 V3 (7D9D / 7D9C) SR665 V3 (7D9B / 7D9A) SR630 V3 (7D72 / 7D73) SR650 V3 (7D75 / 7D76) SR850 V3 (7D97 / 7D96) SR860 V3 (7D94 / 7D93) SR630 V2 (7Z70 / 7Z71) SR650 V2 (7Z72 / 7Z73) SR670 V2 (7Z22 / 7Z23) SR635 (7Y98 / 7Y99) SR655 (7Y00 / 7Z01) SR645 ( |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | VMware vSphere Hypervisor (ESXi) 6.7 U3 VMware vSphere Hypervisor (ESXi) 7.0 VMware vSphere Hypervisor (ESXi) 7.0 U1 VMware vSphere Hypervisor (ESXi) 7.0 U2 VMware vSphere Hypervisor (ESXi) 7.0 U3 VMware vSphere Hypervisor (ESXi) 8.0 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 65 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 167 mm |
| Height | 63 mm |
