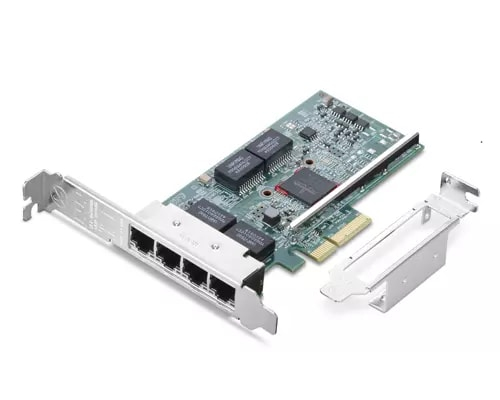

4XC1K80847 network card Internal Ethernet 1000 Mbit/s
Model 4XC1K80847EAN 195892084266
23 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight80 g
- InternalYes
- Operating temperature (T-T)0 - 55 °C
- Width132.1 mm
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 80 g
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 55 °C
- Width
- 132.1 mm
- Brand
- Lenovo
- Category
- Network Card
- Model
- 4XC1K80847
- Part number
- 4XC1K80847
- EAN / UPC
- 195892084266, 4571592567234
- Also known as
- Lenovo 4XC1K80847 network card Internal Ethernet 1000 Mbit/s
Specifications
23 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 4 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 1588, IEEE 802.1as, IEEE 802.3az |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | Server |
| Certification | CE/UL/FCC/IC/ACA/BSM/MSIP/VCCI |
| Compatible products | ThinkStation |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Operating relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 132.1 mm |
| Depth | 65.6 mm |
| Weight | 80 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 177 mm |
| Package depth | 144 mm |
| Package height | 53 mm |
| Package weight | 120 g |
