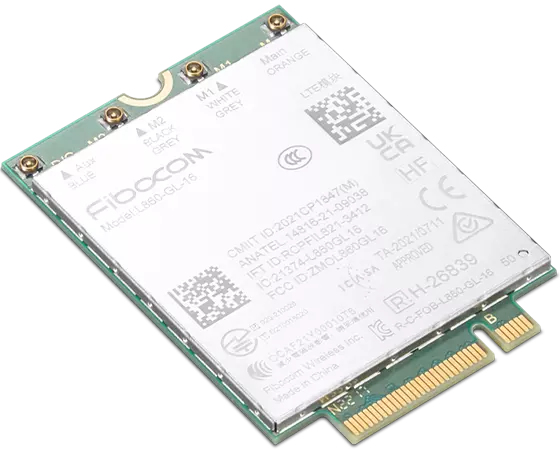

Lenovo 4XC1K20992 network card Internal WWAN 1000 Mbit/s

4XC1K20992 network card Internal WWAN 1000 Mbit/s

Model 4XC1K20992EAN 195892069256

22 specifications

Speed1000 Mbit/s
ConnectivityWireless
Weight6.2 g
InternalYes
Windows operating systems supportedWindows 10, Windows 11
Operating temperature (T-T)-10 - 55 °C

See all specifications

Overview

Speed: 1000 Mbit/s
Connectivity: Wireless
Weight: 6.2 g
Internal: Yes
Windows operating systems supported: Windows 10, Windows 11
Operating temperature (T-T): -10 - 55 °C

Brand: Lenovo
Category: Network Card
Model: 4XC1K20992
Part number: 4XC1K20992
EAN / UPC: 195892069256
Also known as: Lenovo 4XC1K20992 network card Internal WWAN 1000 Mbit/s

Specifications

22 specifications in 7 groups

Ports & interfaces

Specification	Value
Connectivity technology	Wireless
Host interface	M.2
Interface	WWAN

Network

Specification	Value
Maximum data transfer rate	1000 Mbit/s
Mobile network generation	4G
MU-MIMO	Yes

Design

Specification	Value
Internal	Yes
Component for	PC/Laptop
Antenna design	Internal
Certification	CE for EU, KCC for Korea, IFT for Mexico, NTC for Philippines, ICASA for South Africa, NCC for Taiwan.
Compatible products	ThinkPad X1 Nano Gen 2 & X1 Yoga Gen 7

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 11

Operational conditions

Specification	Value
Operating temperature (T-T)	-10 - 55 °C
Operating relative humidity (H-H)	5 - 95%

Weight & dimensions

Specification	Value
Width	30 mm
Depth	42 mm
Height	2.3 mm
Weight	6.2 g

Packaging data

Specification	Value
Package width	53 mm
Package depth	144 mm
Package height	177 mm
Package weight	30 g
