Lenovo 49Y7970 network card Internal Ethernet 10000 Mbit/s
Model 49Y7970
22 specifications
- Speed10000 Mbit/s
- ConnectivityWired
- ColourBlack, Green, Stainless steel
- InternalYes
- Operating temperature (T-T)0 - 55 °C
- Width69 mm
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired
- Colour
- Black, Green, Stainless steel
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 55 °C
- Width
- 69 mm
- Brand
- Lenovo
- Category
- Network Card
- Model
- 49Y7970
- Part number
- 49Y7970
- Also known as
- Lenovo 49Y7970 network card Internal Ethernet 10000 Mbit/s
Specifications
22 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1Qau, IEEE 802.1p, IEEE 802.3ad, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| iSCSI support | No |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Product colour | Black, Green, Stainless steel |
| Chipset | Intel® X540-T2 |
| Compatible products | x3250 M6, x3550 M5, x3650 M5, x3850 X6/x3950 X6, nx360 M5, x3100 M5, x3250 M5, x3500 M5, x3550 M5, x3650 M5, |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -20 - 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 69 mm |
| Depth | 168 mm |
| Height | 15 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Compare Lenovo 49Y7970 network card Internal Ethernet 10000 Mbit/s
Compare any products- Lenovo 49Y7970 network card Internal Ethernet 10000 Mbit/s vsLenovo 0A89424 network card Internal Ethernet 1000 Mbit/sCompare specs

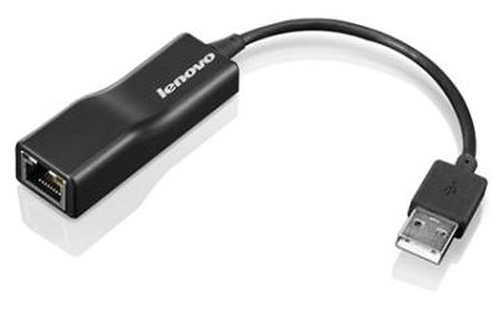

- Lenovo 49Y7970 network card Internal Ethernet 10000 Mbit/s vsLenovo USB 2.0 - EthernetCompare specs

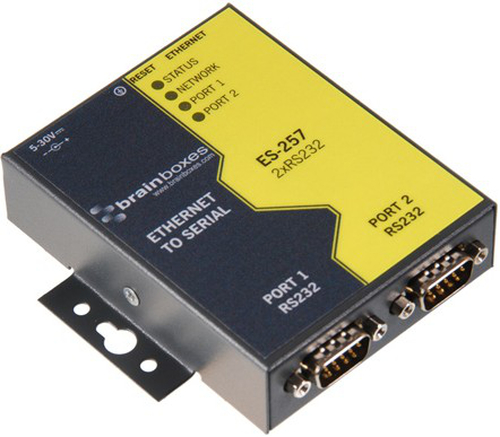

- Lenovo 49Y7970 network card Internal Ethernet 10000 Mbit/s vsLenovo ES-257 Ethernet 100 Mbit/sCompare specs

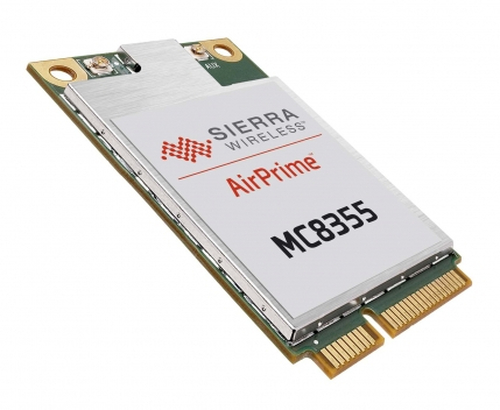

- Lenovo 49Y7970 network card Internal Ethernet 10000 Mbit/s vsLenovo GOBI 3000 Mobile BroadbandCompare specs
- Lenovo 49Y7970 network card Internal Ethernet 10000 Mbit/s vsDigicom WPE300-P01 Internal WLAN 300 Mbit/sCompare specs
- Lenovo 49Y7970 network card Internal Ethernet 10000 Mbit/s vsTP-Link 150Mbps Wireless N Nano USB AdapterCompare specs

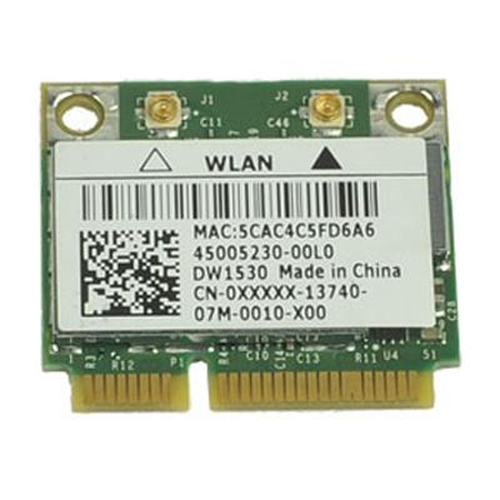

- Lenovo 49Y7970 network card Internal Ethernet 10000 Mbit/s vsDell WLAN 802.11 a/b/g/n Mini CardCompare specs
