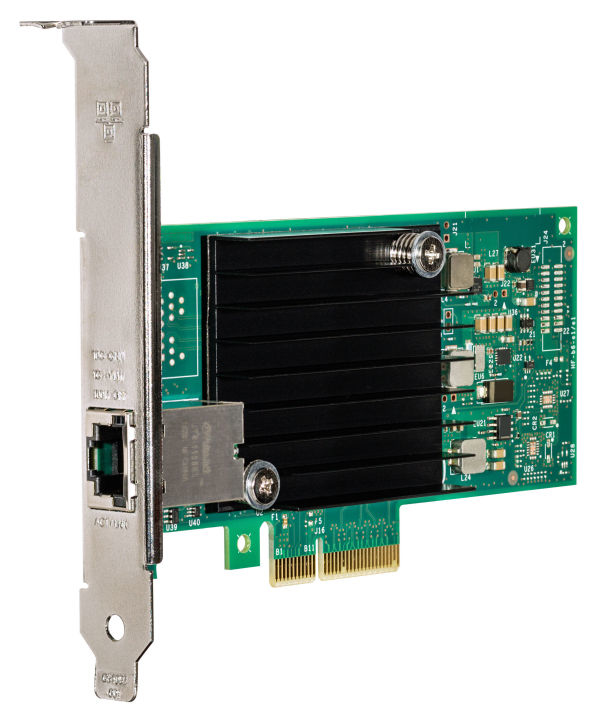

Lenovo 00MM850 network card Internal Ethernet 10000 Mbit/s
Model 00MM850EAN 889488078141
33 specifications
- Speed10000 Mbit/s
- ConnectivityWired
- ColourBlack, Green
- InternalYes
- Operating temperature (T-T)5 - 55 °C
- Width16 mm
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired
- Colour
- Black, Green
- Internal
- Yes
- Operating temperature (T-T)
- 5 - 55 °C
- Width
- 16 mm
- Brand
- Lenovo
- Category
- Network Card
- Model
- 00MM850
- Part number
- 00MM850
- EAN / UPC
- 889488078141, 8894880781416
- Also known as
- Lenovo 00MM850 network card Internal Ethernet 10000 Mbit/s
Specifications
33 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI Card form factor | Full-height (low-profile) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1Qbg, IEEE 802.1p, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3an, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Jumbo frames | 9500 |
| Jumbo frames support | Yes |
| VLAN tagging | Yes |
| LAN controller | Intel® X550 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | Server |
| Product colour | Black, Green |
| LED indicators | Yes |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Microsoft Windows Server 2012 R2 Microsoft Windows Server 2012 Microsoft Windows Server 2016 Red Hat Enterprise Linux 6 Server x64 Edition Red Hat Enterprise Linux 7 SUSE Linux Enterprise Server 12 SUSE Linux Enterprise Server 11 for AMD64/EM64T SUSE Linux Enterprise Server 11 with Xen for AMD64/EM6 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 5 - 55 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating altitude | 0 - 3048 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 16 mm |
| Depth | 134 mm |
| Height | 69 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Other features
| Specification | Value |
|---|---|
| Flow control support | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel® Virtualization Technology (Intel® VT) | VT-c |
| Receive Side Scaling (RSS) | Yes |
