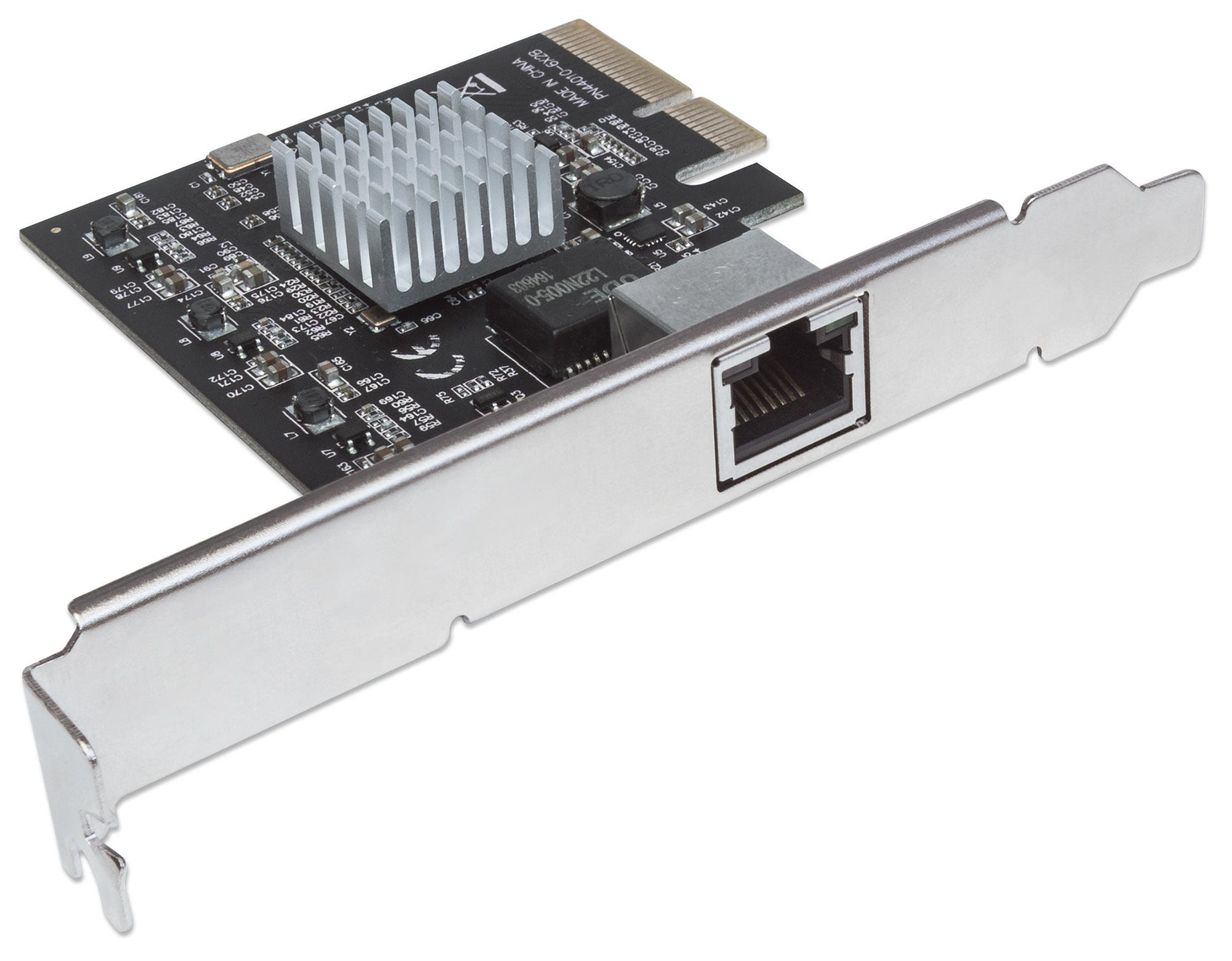

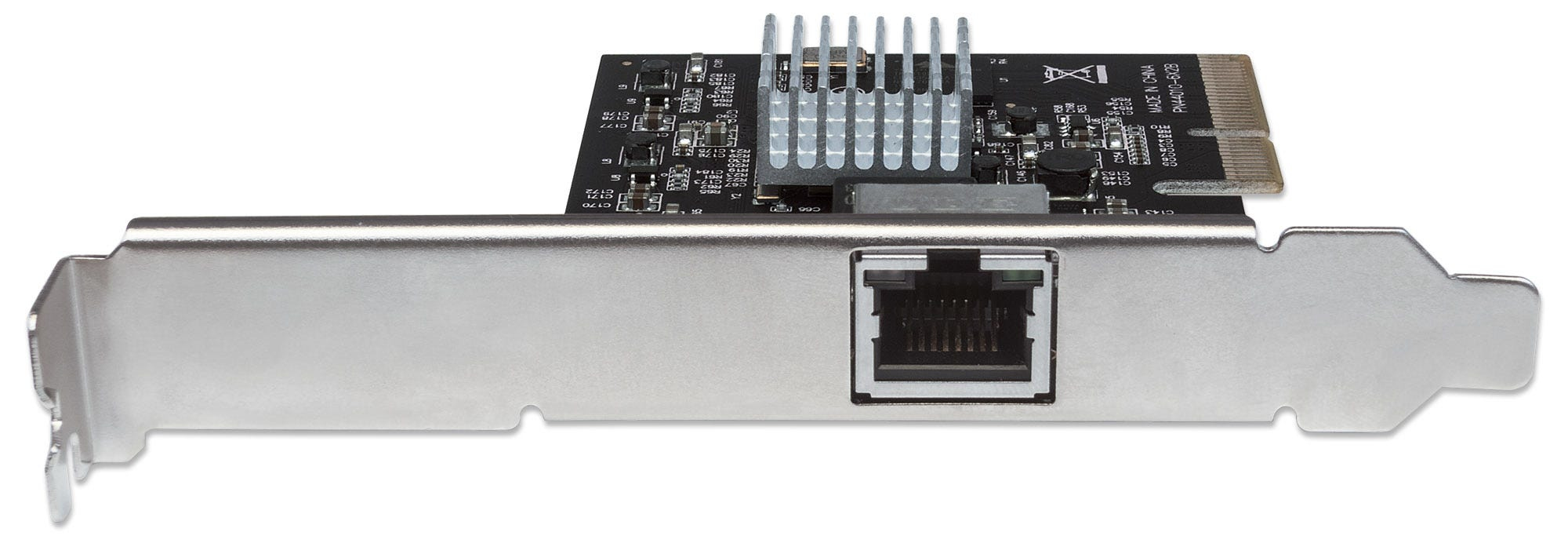

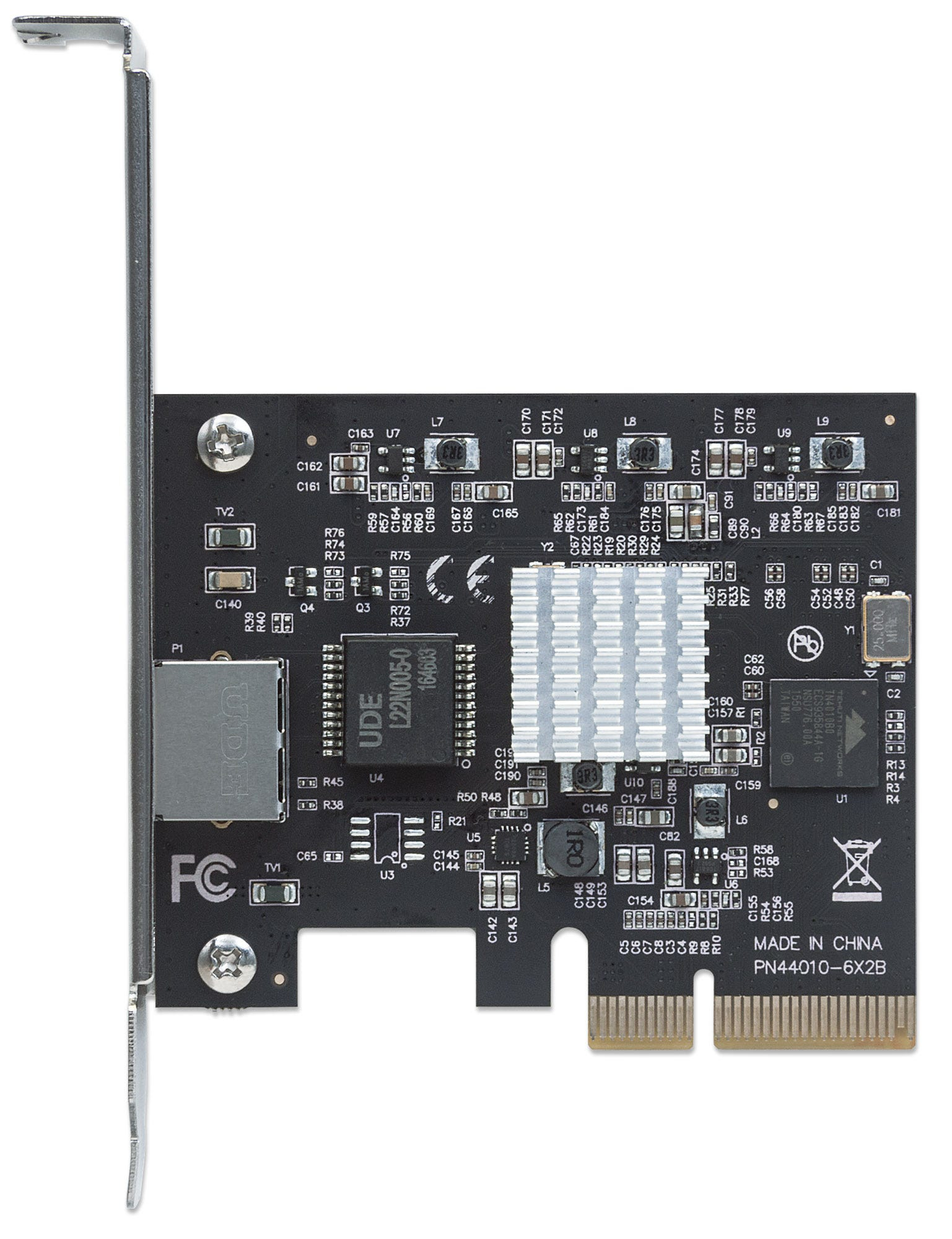

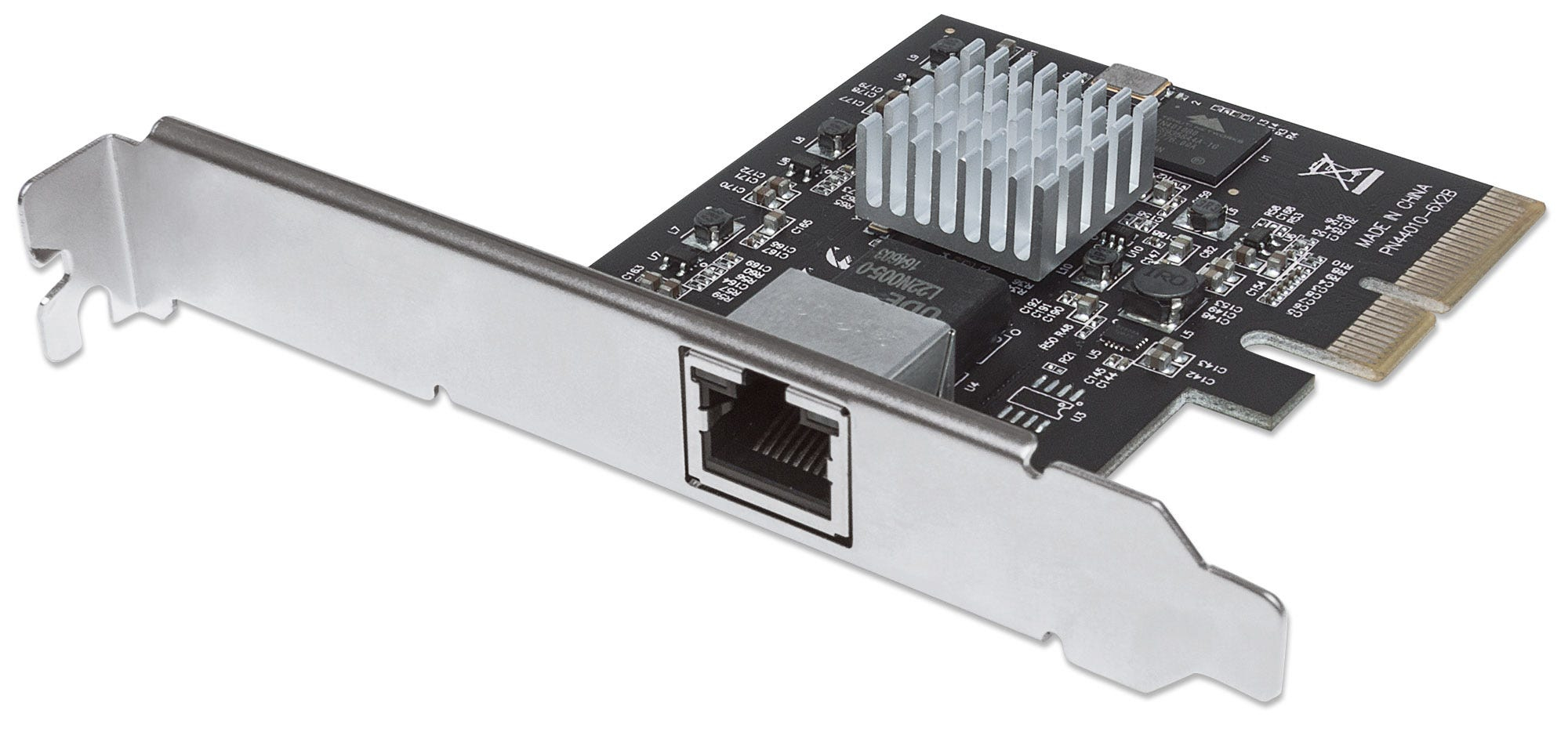

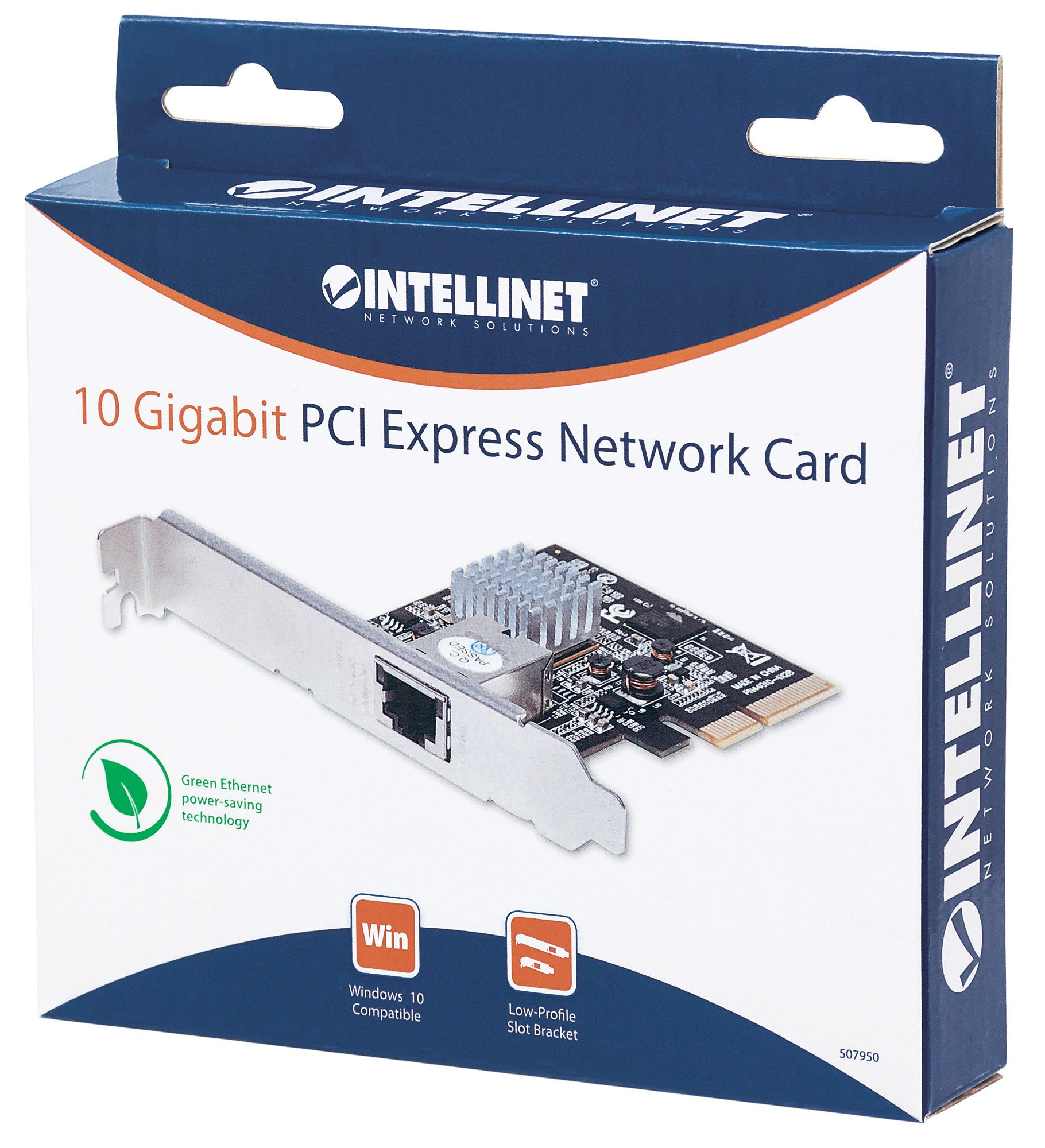

Intellinet 10 Gigabit PCI Express Network Card, 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1-Port PCI Express 2.0

Intellinet 10 Gigabit PCI Express Network Card, 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1-Port PCI Express 2.0

Model 507950EAN 766623507950

28 specifications
  • Speed10000 Mbit/s
  • ConnectivityWired
  • Weight65.2 g
  • InternalYes
  • Operating temperature (T-T)0 - 50 °C
  • Width21 mm
See all specifications

Overview

Speed
10000 Mbit/s
Connectivity
Wired
Weight
65.2 g
Internal
Yes
Operating temperature (T-T)
0 - 50 °C
Width
21 mm
Brand
Intellinet
Category
Network Card
Model
507950
Part number
507950
EAN / UPC
766623507950
Also known as
Intellinet 10 Gigabit PCI Express Network Card, 10GBASE-T, 5GBASE-T, 2.5GBASE-T, 1-Port PCI Express 2.0

Specifications

28 specifications in 10 groups

Ports & interfaces

Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet
Ethernet LAN (RJ-45) ports1
PCI version2.0

Network

Maximum data transfer rate10000 Mbit/s
Networking standardsIEEE 802.1Q, IEEE 802.3ab, IEEE 802.3an, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3u
Ethernet LANYes
Ethernet interface type10 Gigabit Ethernet
Ethernet LAN data rates10,100,1000,1200,2500,5000,10000 Mbit/s
Cabling technology10GBase-T

Design

InternalYes
ChipsetTehuti TN4010
LED indicatorsActivity, Link, Speed
CertificationFCC B, CE

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64,
Mac operating systems supportedMac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra
Server operating systems supportedWindows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016

Operational conditions

Operating temperature (T-T)0 - 50 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width21 mm
Depth122 mm
Height81 mm
Weight65.2 g

Packaging data

Low-profile bracketYes

Technical details

Compliance certificatesRoHS

Logistics data

Harmonized System (HS) code85176990

Other features

Quick start guideYes
