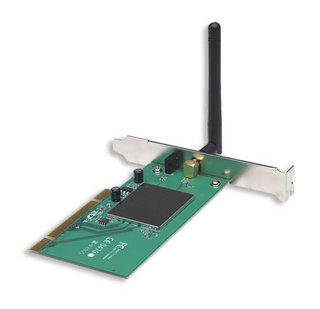

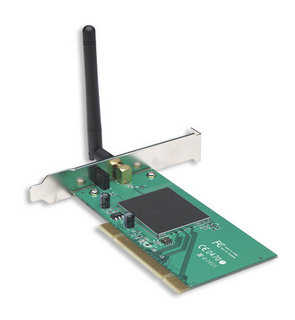

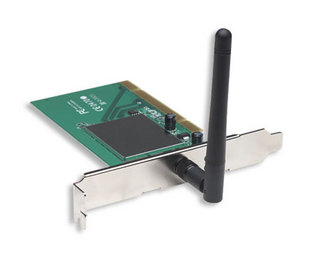

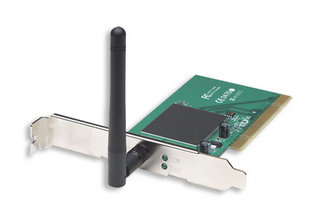

Intellinet 501682 network card Internal WLAN 108 Mbit/s

Intellinet 501682 network card Internal WLAN 108 Mbit/s

Model 501682EAN 766623501682

26 specifications
  • Speed108 Mbit/s
  • ConnectivityWireless
  • Weight76 g
  • InternalYes
  • Operating temperature (T-T)0 - 40 °C
  • Width121 mm
See all specifications

Overview

Speed
108 Mbit/s
Connectivity
Wireless
Weight
76 g
Internal
Yes
Operating temperature (T-T)
0 - 40 °C
Width
121 mm
Brand
Intellinet
Category
Network Card
Model
501682
Part number
501682
EAN / UPC
766623501682
Also known as
Intellinet 501682 network card Internal WLAN 108 Mbit/s

Specifications

26 specifications in 7 groups

Ports & interfaces

Connectivity technologyWireless
Host interfacePCI
InterfaceWLAN

Network

Maximum data transfer rate108 Mbit/s
Networking standardsIEEE 802.11b, IEEE 802.11g
Wi-FiYes
Wi-Fi bandSingle-band (2.4 GHz)
Frequency range2.412 - 2.484 GHz
WLAN data transfer rates supported1,2,5.5,6,9,11,12,18,24,36,48,54 Mbit/s
ModulationDSSS, OFDM
Security algorithms128-bit WEP, 64-bit WEP, WPA-PSK
Maximum indoor range100 m
Maximum outdoor range300 m

Design

InternalYes
AntennaYes
ChipsetAtheros
LED indicatorsYes

System requirements

Windows operating systems supportedWindows 2000, Windows 2000 Professional, Windows 98SE, Windows ME, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows V

Operational conditions

Operating temperature (T-T)0 - 40 °C
Operating relative humidity (H-H)10 - 95%

Weight & dimensions

Width121 mm
Depth133 mm
Height21.6 mm
Weight76 g

Other features

Gain2 dBi
Connection to PCYes
