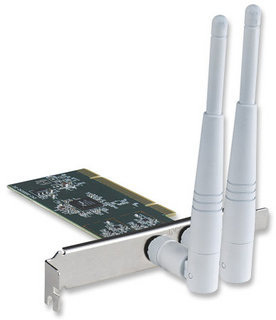

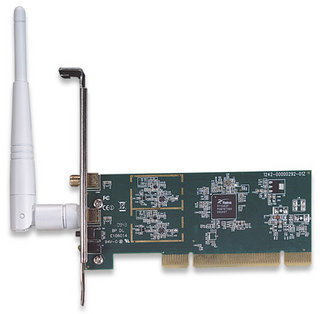

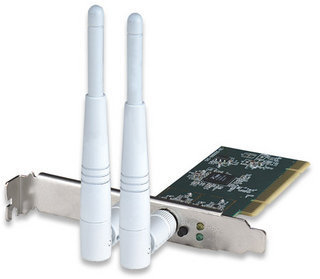

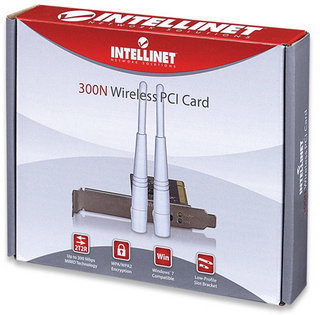

Intellinet 300N Internal WLAN 300 Mbit/s

Intellinet 300N Internal WLAN 300 Mbit/s

Model 300NPart no. 525176EAN 168141655234

32 specifications
  • Speed300 Mbit/s
  • ConnectivityWireless
  • Weight275 g
  • InternalYes
  • Minimum processor300 MHz
  • Operating temperature (T-T)0 - 55 °C
See all specifications

Overview

Speed
300 Mbit/s
Connectivity
Wireless
Weight
275 g
Internal
Yes
Minimum processor
300 MHz
Operating temperature (T-T)
0 - 55 °C
Brand
Intellinet
Category
Network Card
Model
300N
Part number
525176
EAN / UPC
168141655234, 172302836158, 766623525176, 7666235251766
Also known as
Intellinet 300N Internal WLAN 300 Mbit/s

Specifications

32 specifications in 8 groups

Ports & interfaces

Connectivity technologyWireless
Host interfacePCI
InterfaceWLAN

Network

Maximum data transfer rate300 Mbit/s
Networking standardsIEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11n
Wi-FiYes
Wi-Fi bandSingle-band (2.4 GHz)
Frequency range2.4 - 2.4835 GHz
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi standards802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported11,54,300 Mbit/s
Modulation16-QAM, 64-QAM, BPSK, CCK, DBPSK, DQPSK, DSSS, OFDM, QPSK
Security algorithms128-bit WEP, 64-bit WEP, CCX v4, WEP, WPA, WPA2

Design

InternalYes
Antenna connector typeRP-SMA
ChipsetRalink RT3062
Receiver sensitivity- 300 Mbps OFDM: -61 dBm +/- 1.5 dBm - 54 Mbps OFDM: -65 dBm +/- 1.5 dBm - 11 Mbps CCK: -79 dBm +/- 1.5 dBm
CertificationFCC, CE

System requirements

Windows operating systems supportedWindows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Wi
Minimum processor300 MHz

Operational conditions

Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-20 - 65 °C
Operating relative humidity (H-H)0 - 55%

Weight & dimensions

Width128 mm
Depth121 mm
Height22 mm
Weight275 g

Packaging content

ManualYes

Other features

Gain3 dBi
Quick start guideYes
Link/Act LEDYes
Power LEDYes
