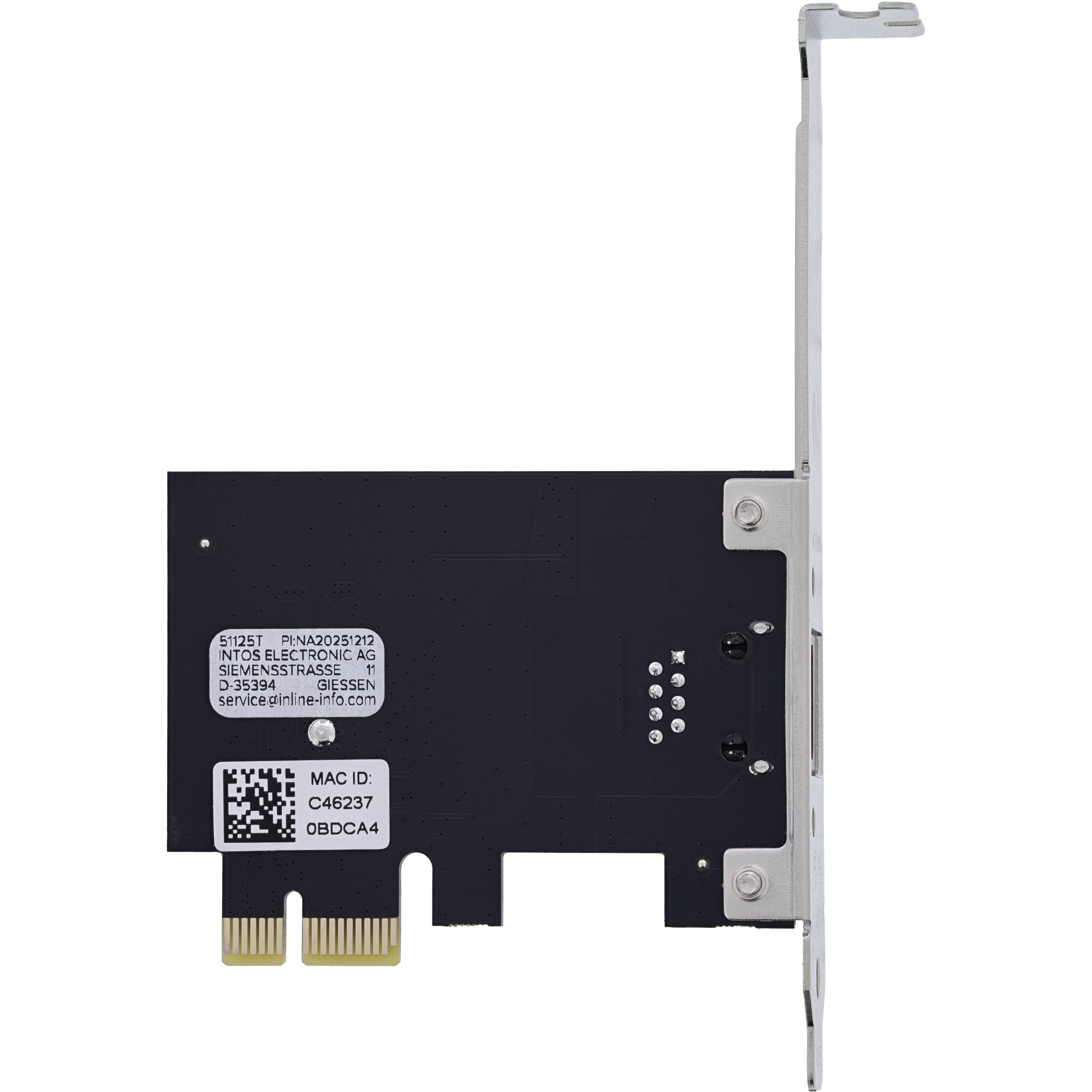

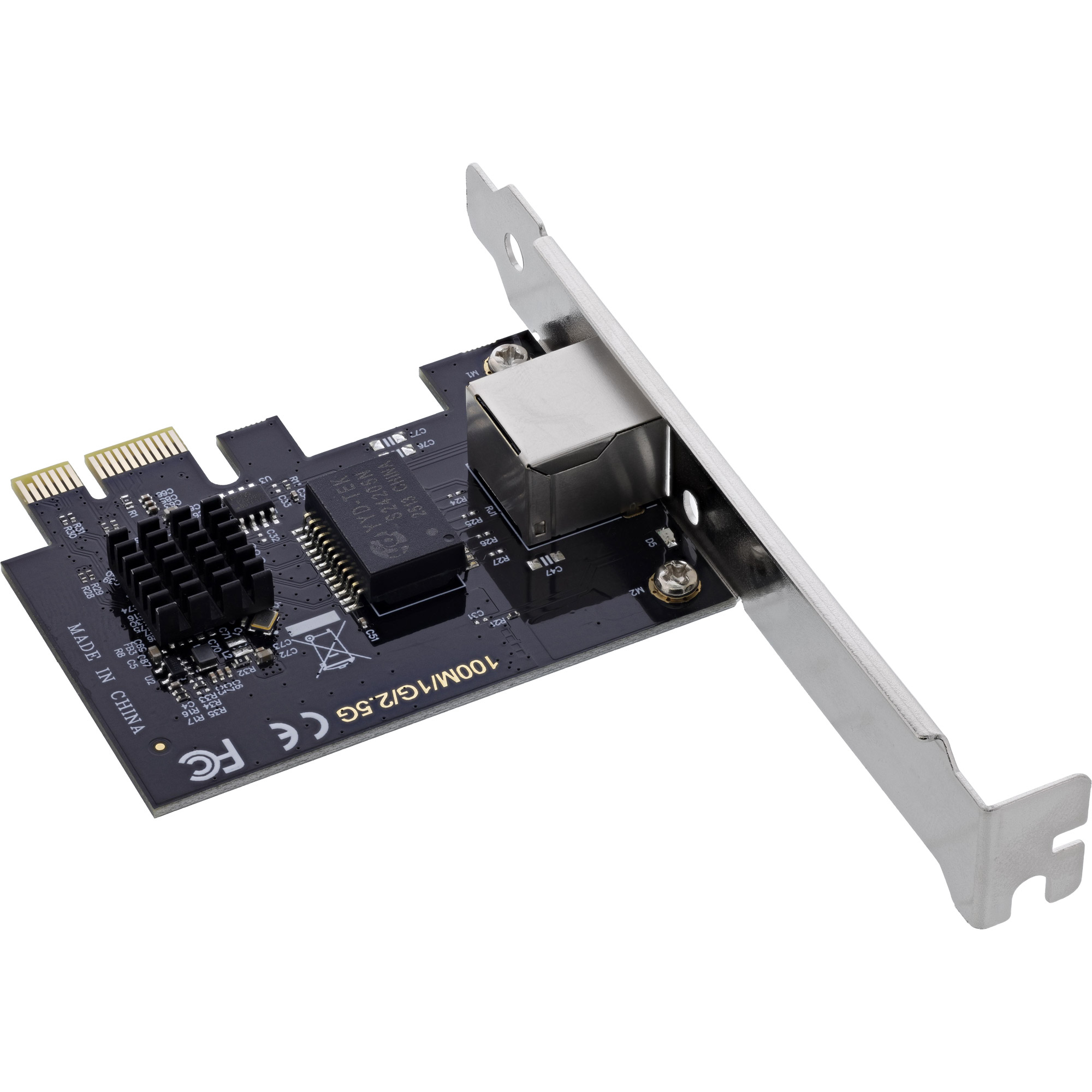

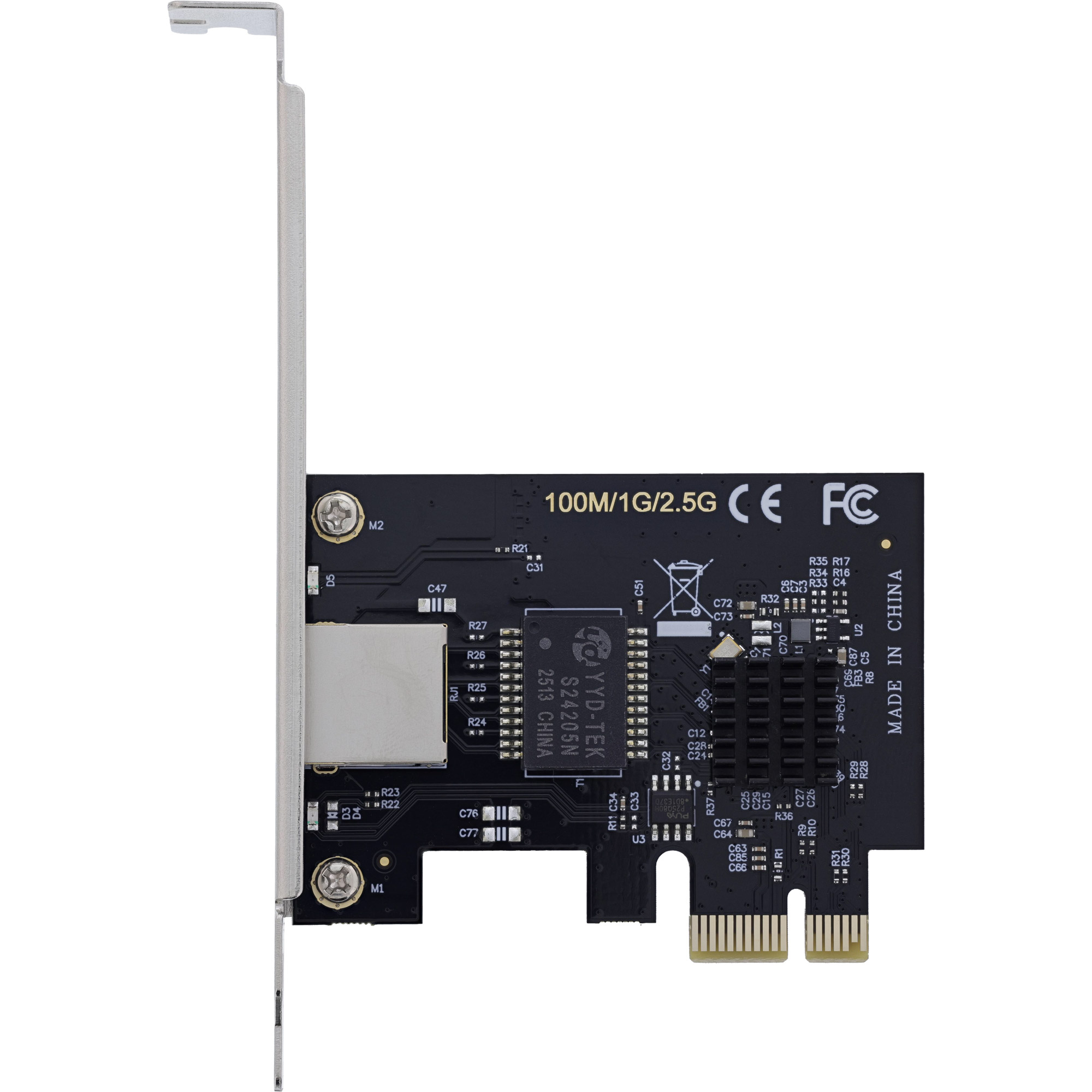

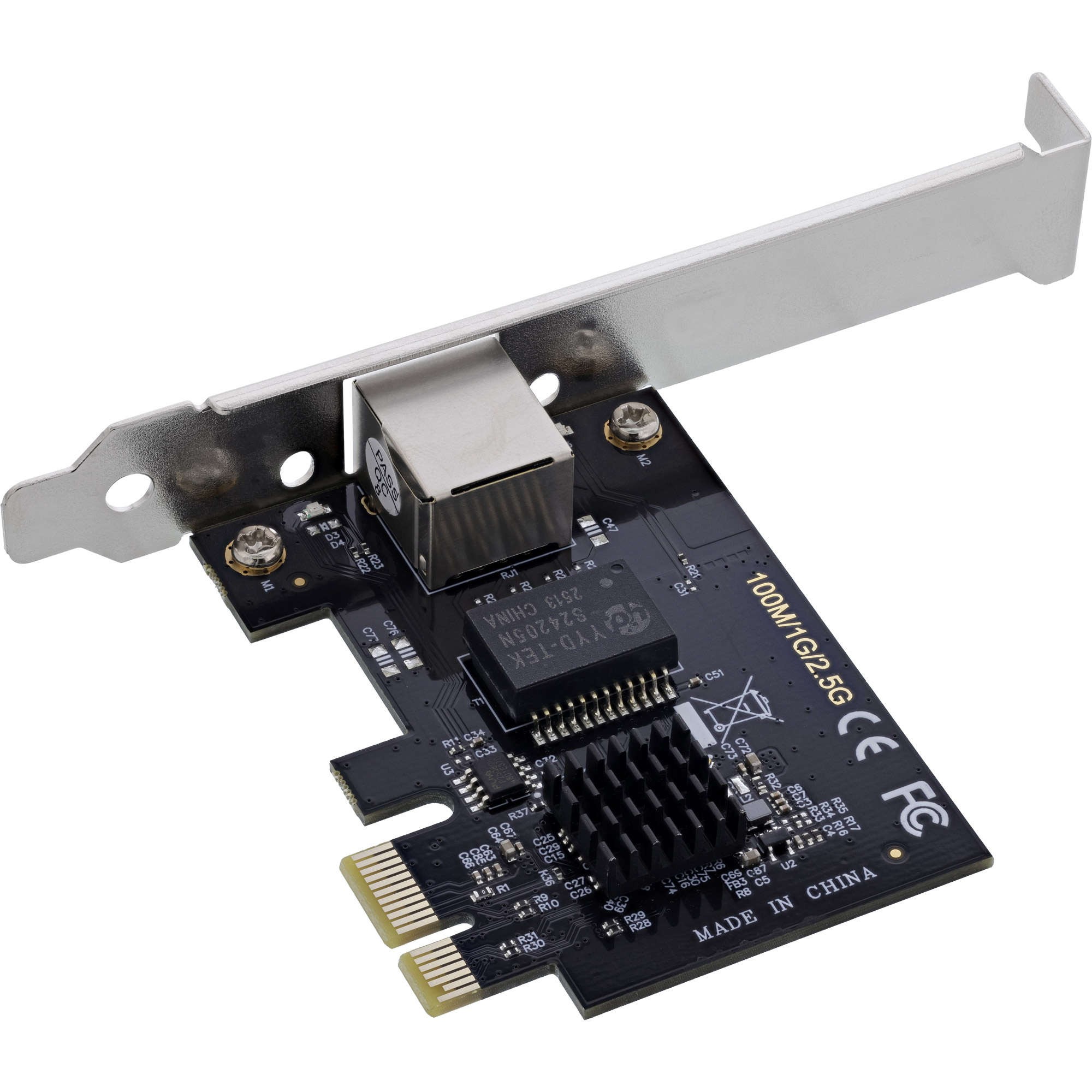

51125T network card Internal Ethernet 2500 Mbit/s
Model 51125TEAN 4043718349197
36 specifications
- Speed2500 Mbit/s
- ConnectivityWired
- Weight2 kg
- InternalYes
- Operating temperature (T-T)0 - 70 °C
- Width85 mm
Overview
- Speed
- 2500 Mbit/s
- Connectivity
- Wired
- Weight
- 2 kg
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 70 °C
- Width
- 85 mm
- Brand
- InLine
- Category
- Network Card
- Model
- 51125T
- Part number
- 51125T
- EAN / UPC
- 4043718349197
- Also known as
- InLine 51125T network card Internal Ethernet 2500 Mbit/s
Specifications
36 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| PCI version | 2.1 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 2500 Mbit/s |
| Networking standards | IEEE 802.3bz, IEEE 802.3ab, IEEE 802.3u, IEEE 802.3, IEEE 802.3x, IEEE 802.1ad, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3az, IEEE 1588, IEEE 1588v2, IEEE 802.1as |
| Wake-on-LAN ready | Yes |
| Jumbo frames | 16000 |
| Jumbo frames support | Yes |
| VLAN support | Yes |
| Maximum operating distance | 100 m |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC |
| Chipset | Realtek RTL8125B |
| Country of origin | Taiwan |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8 |
| Server operating systems supported | Windows Server 2008, Windows Server 2012, Windows Server 2019, Windows Server 2016, Windows Server 2008 R2, Windows Server 2012 R2 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 85 mm |
| Depth | 1.07 mm |
| Height | 120 mm |
| Weight | 2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 140 mm |
| Package depth | 150 mm |
| Package height | 30 mm |
| Package weight | 39 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Resource CD | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | TÜV mark, Federal Communications Commission (FCC), CE |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 85 x 1.07 x 120 mm |
| Package volume | 700 cm³ |
