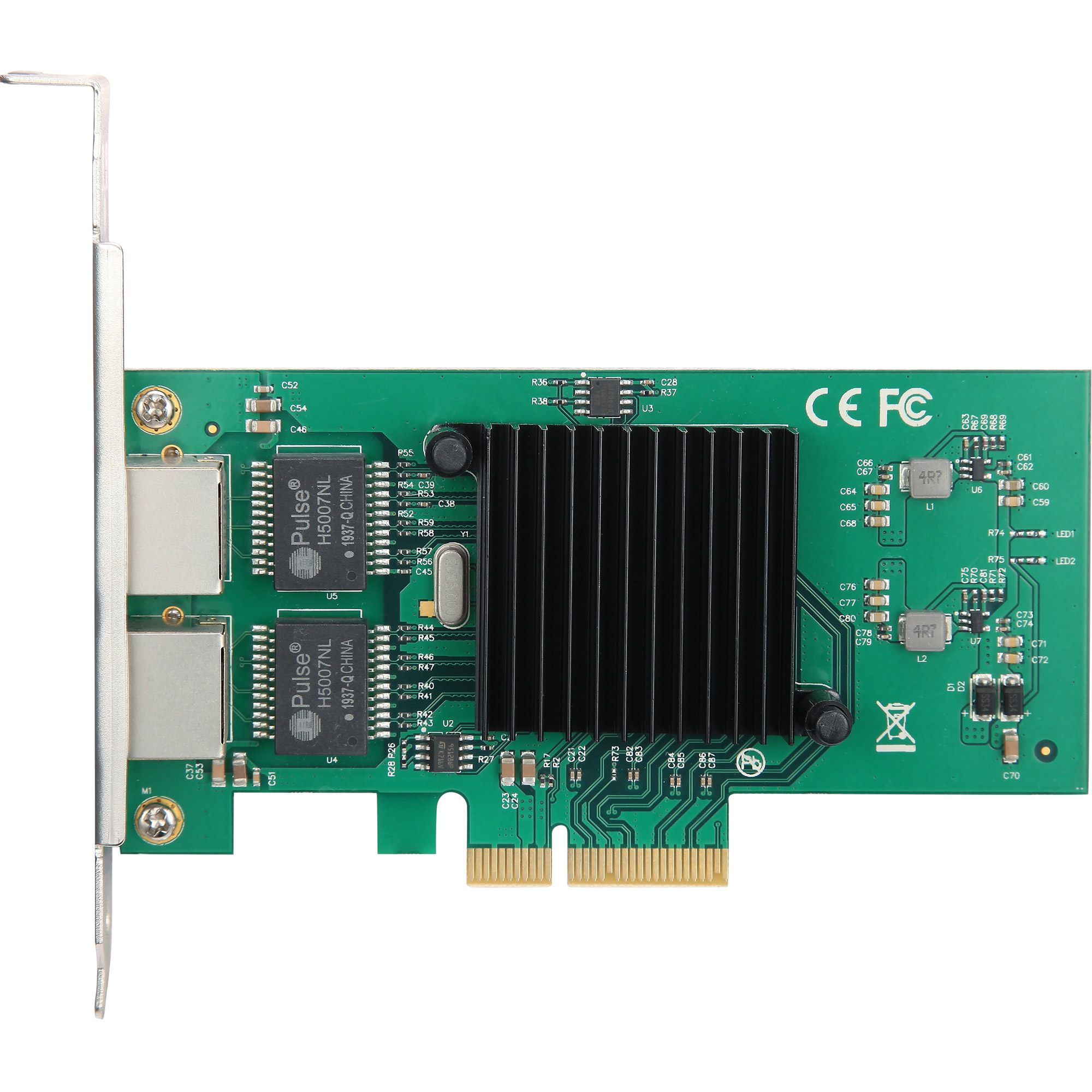

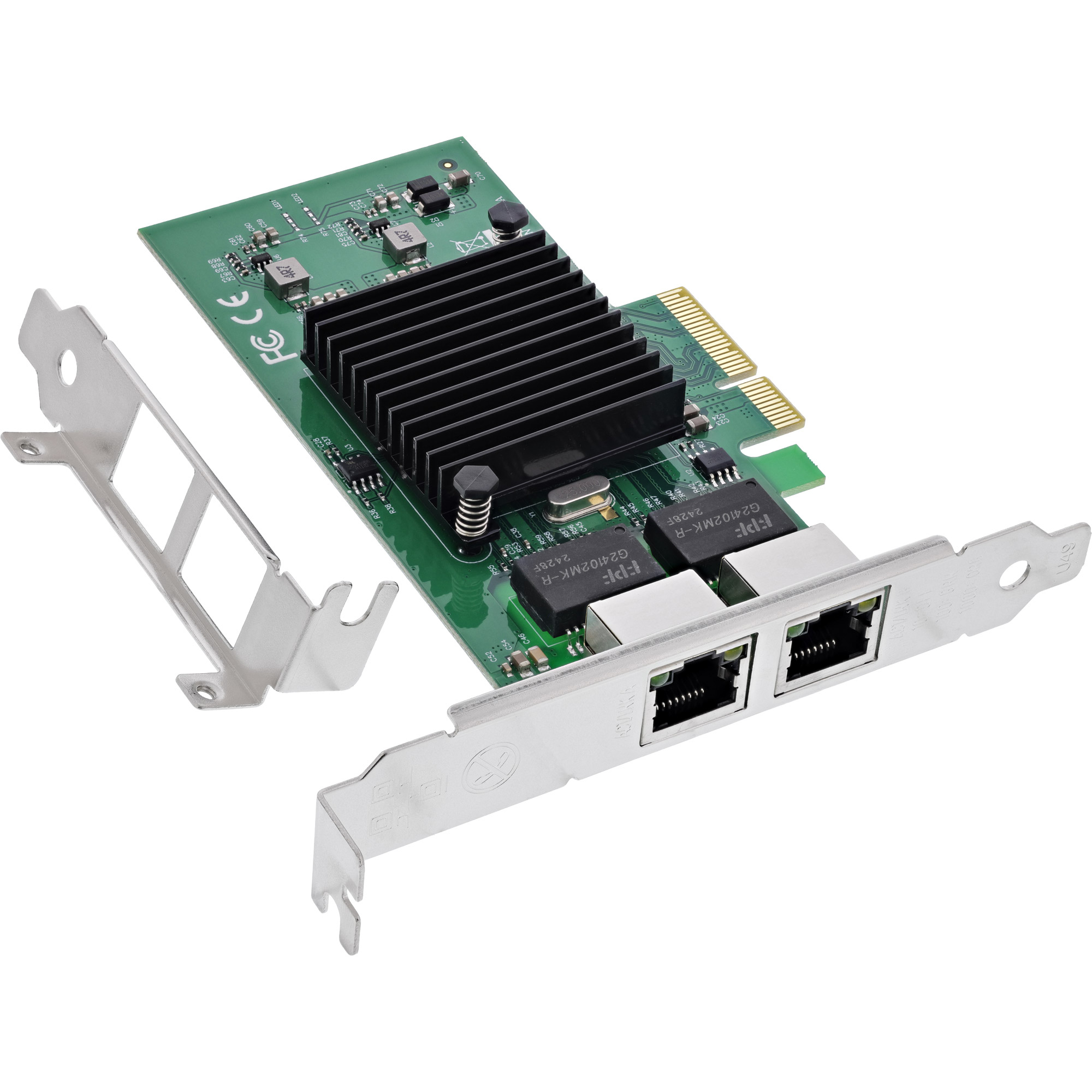

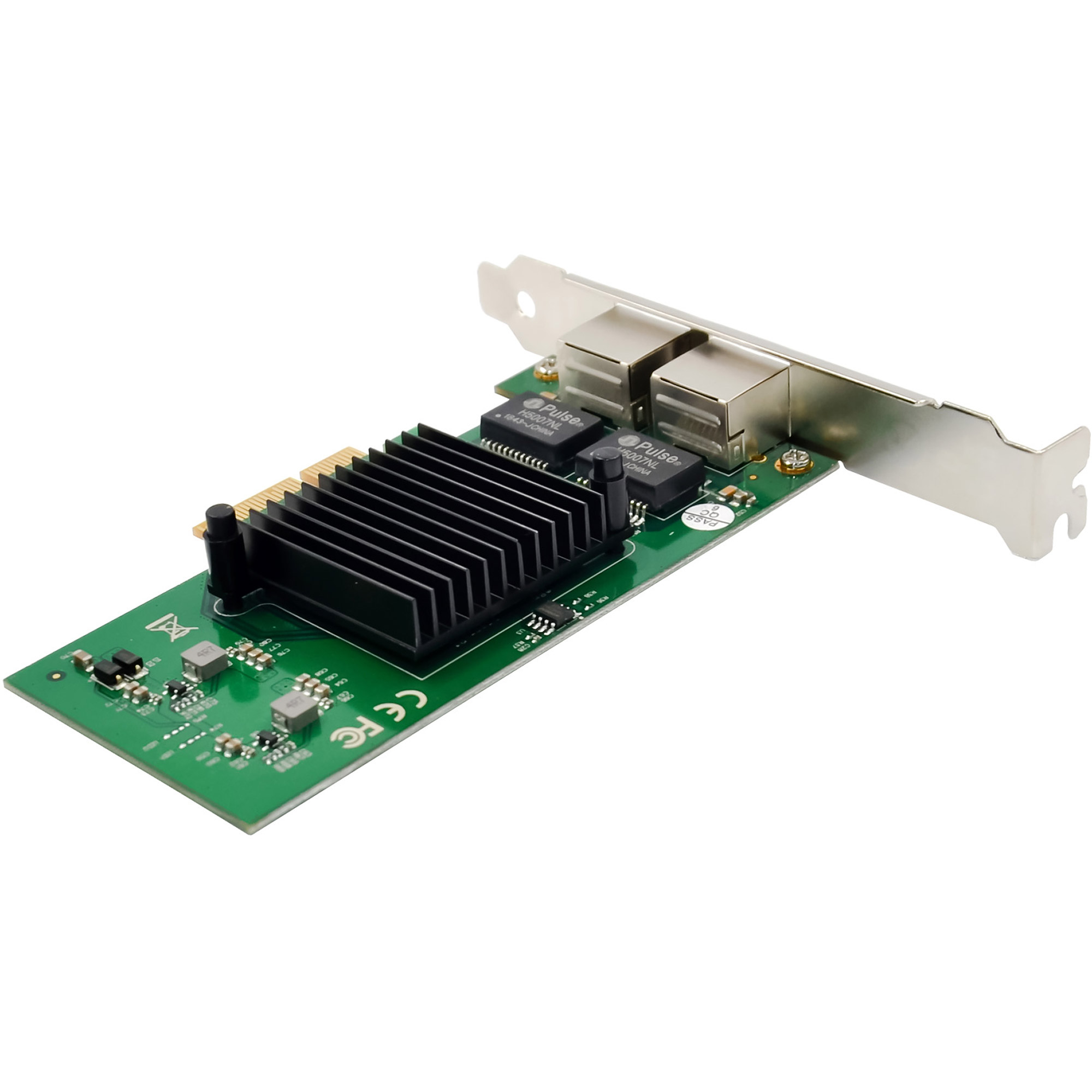

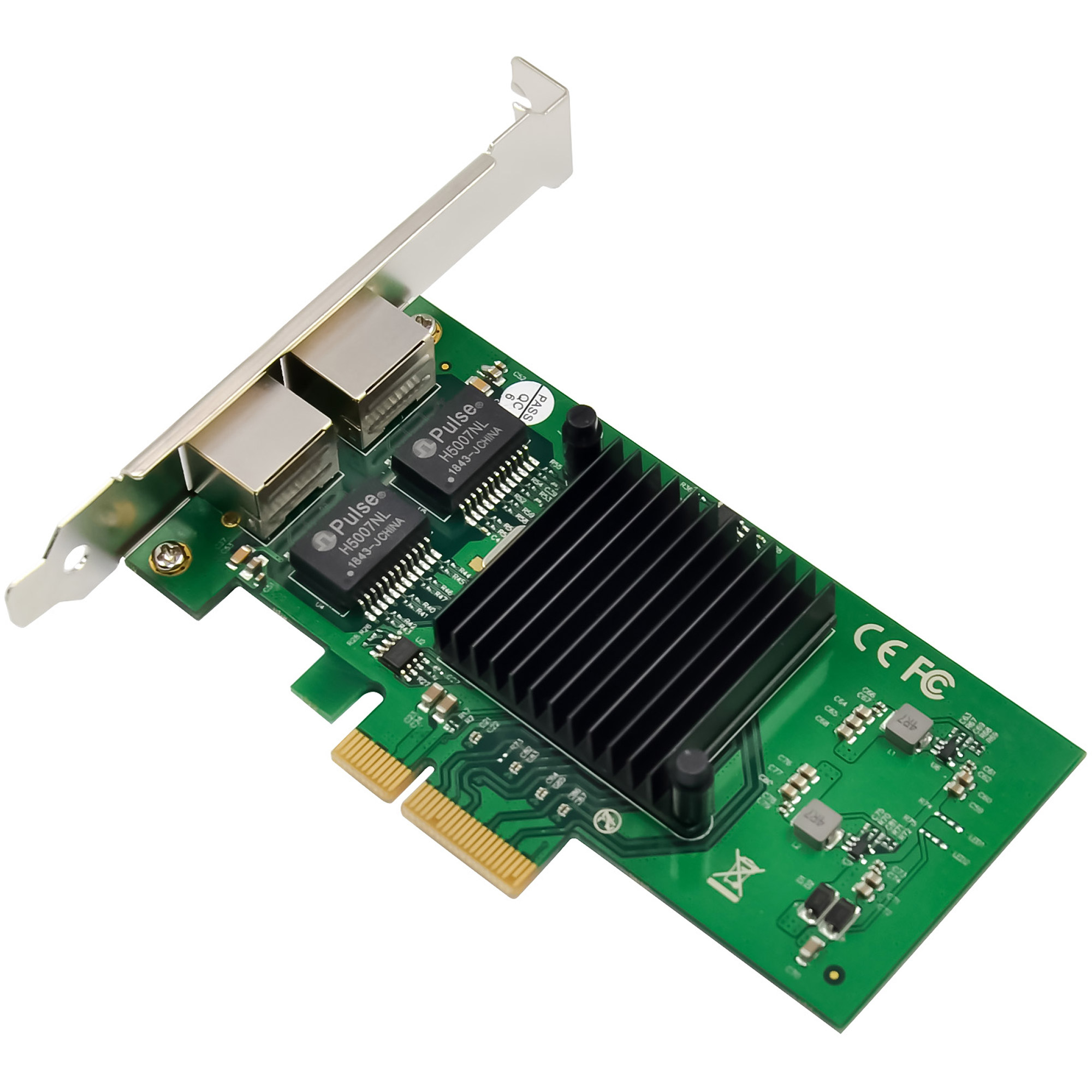

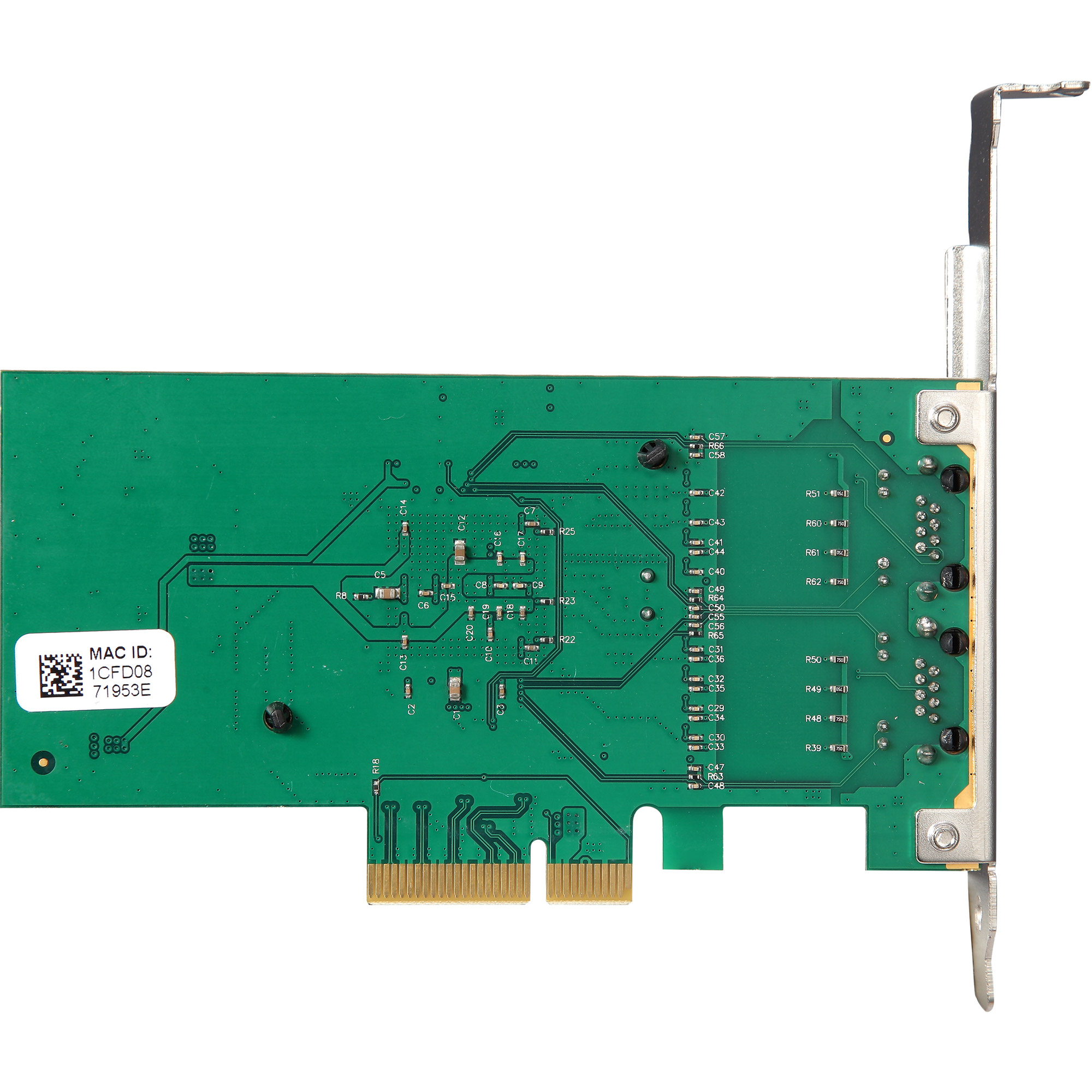

51125B network card Internal Ethernet 1000 Mbit/s
Model 51125BEAN 4043718348237
32 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight2 kg
- InternalYes
- Operating temperature (T-T)0 - 55 °C
- Width140 mm
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 2 kg
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 55 °C
- Width
- 140 mm
- Brand
- InLine
- Category
- Network Card
- Model
- 51125B
- Part number
- 51125B
- EAN / UPC
- 4043718348237
- Also known as
- InLine 51125B network card Internal Ethernet 1000 Mbit/s
Specifications
32 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI version | 2.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.3x |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Jumbo frames | 9500 |
| Supported network protocols | IPv4, IPv6 |
| LAN controller | Intel® 82576EB |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC/Server |
| LED indicators | Yes |
| Country of origin | Taiwan |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 140 mm |
| Depth | 1.61 mm |
| Height | 120 mm |
| Weight | 2 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 125 mm |
| Package depth | 180 mm |
| Package height | 30 mm |
| Package weight | 80 g |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Resource CD | Yes |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | TÜV mark |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 140 x 1.61 x 120 mm |
| Package volume | 700 cm³ |
