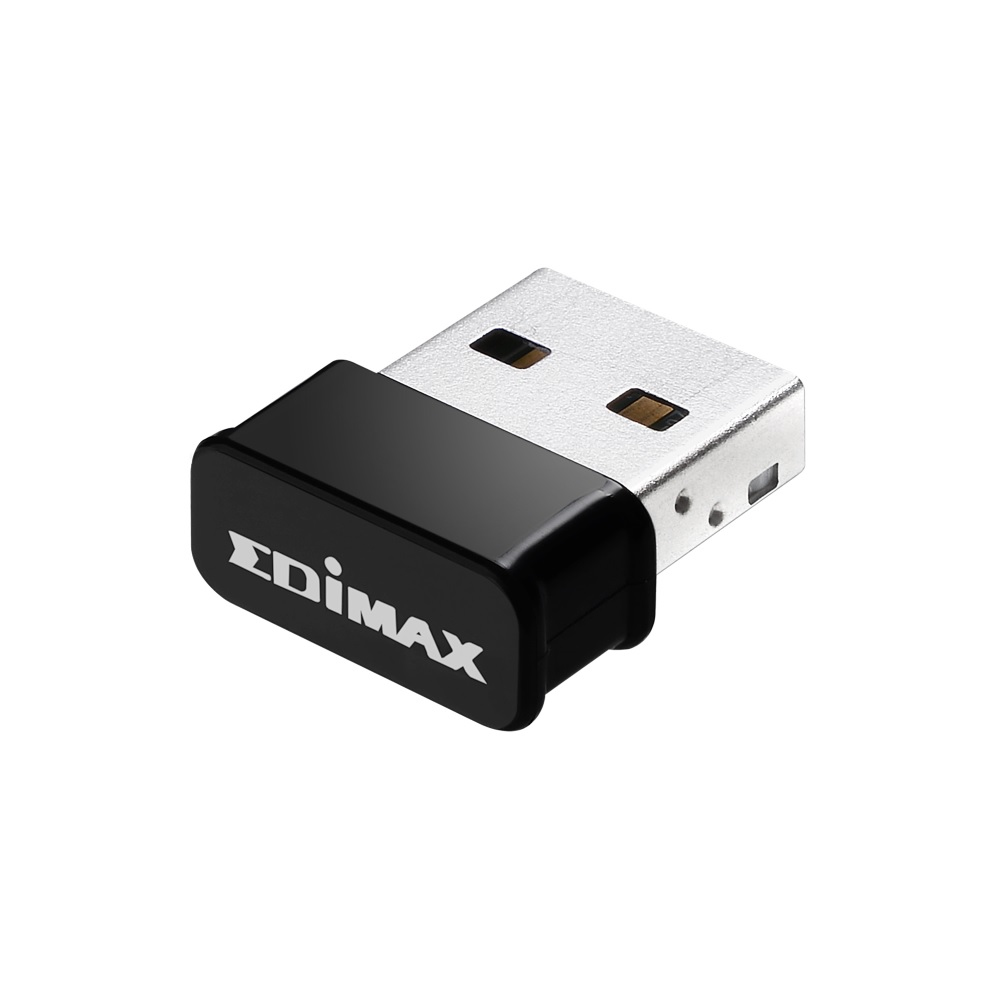

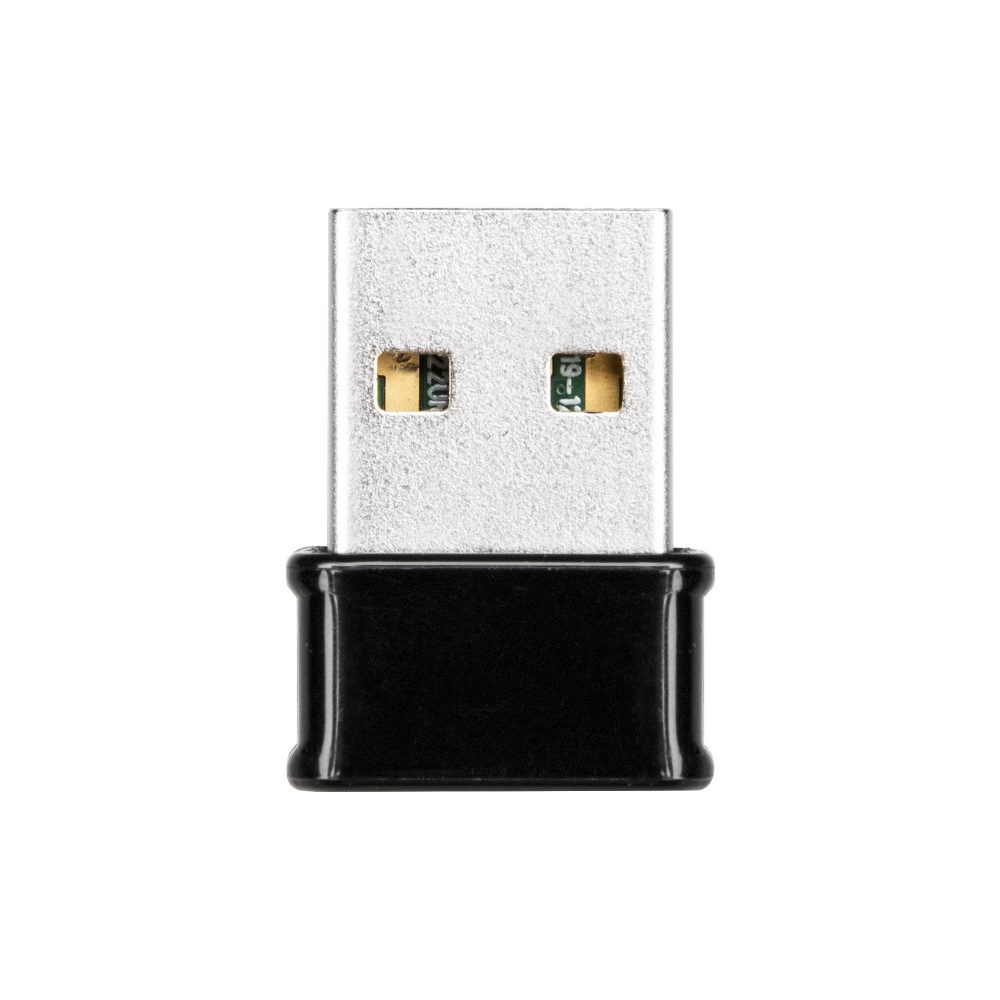

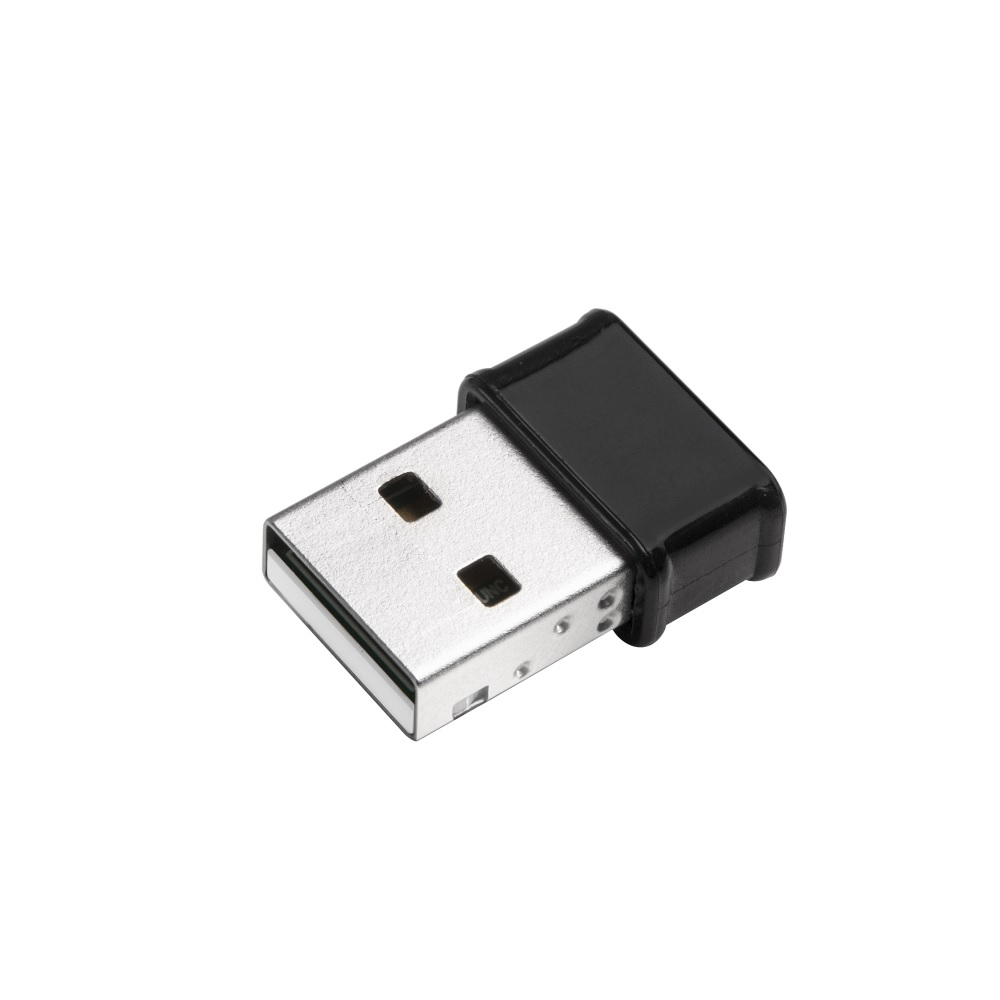

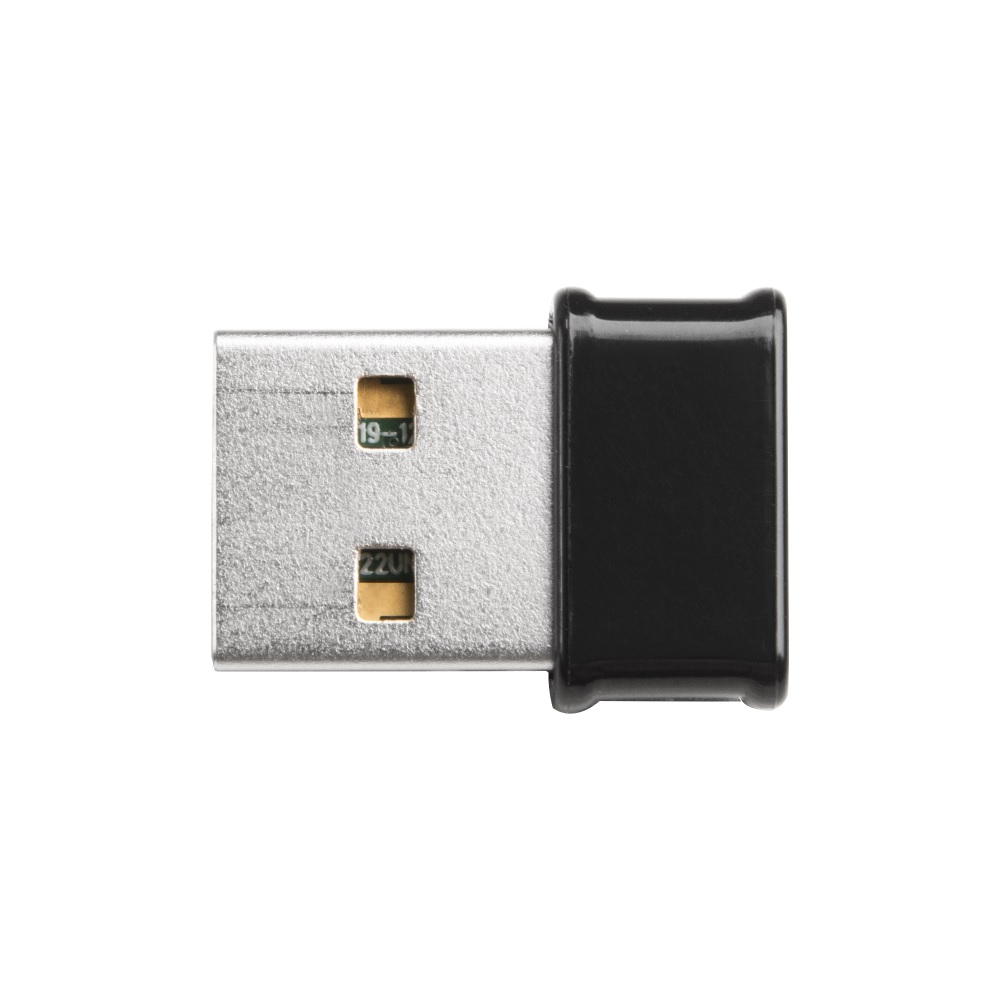

EW-7822ULC network card Internal
Model EW-7822ULC
26 specifications
- SpeedWi-Fi 5 (802.11ac)
- ConnectivityWireless
- Weight20 g
- ColourBlack
- Wi-FiYes
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- Wi-Fi 5 (802.11ac)
- Connectivity
- Wireless
- Weight
- 20 g
- Colour
- Black
- Wi-Fi
- Yes
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- iiyama
- Category
- Network Card
- Model
- EW-7822ULC
- Part number
- EW-7822ULC
- Also known as
- iiyama EW-7822ULC network card Internal
Specifications
26 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | USB |
Network
| Specification | Value |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Frequency range | 2.4 - 5 GHz |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC |
| Product colour | Black |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | Windows 7/8/8.1/10/11, Mac OS 10.9 - 10.15 and Linux Kernel: 3.8 ~ 5.11 |
| Windows operating systems supported | Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1 |
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 10.9 Mavericks |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Storage relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 15 mm |
| Depth | 7 mm |
| Height | 20 mm |
| Weight | 20 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Other features
| Specification | Value |
|---|---|
| Supported data transfer rates | AC1200 WiFi 5, Max. data transfer rates up to 867Mbps (5GHz) and 300Mbps (2.4GHz) |
