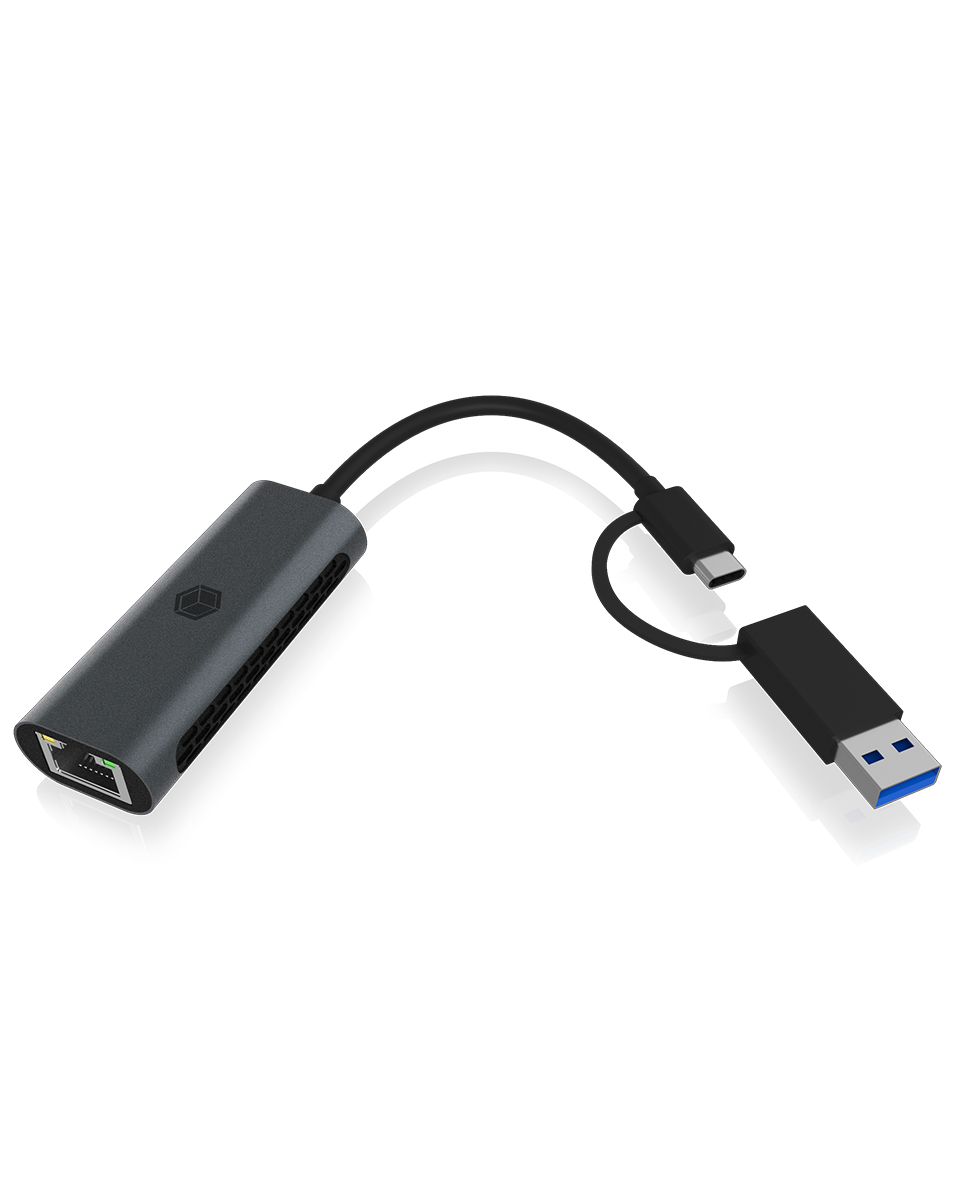

IB-LAN301-C3 Ethernet 2500 Mbit/s
Model IB-LAN301-C3Part no. 61030EAN 4250078173649
34 specifications
- Speed2500 Mbit/s
- ConnectivityWired
- Weight32 g
- ColourAnthracite
- InternalNo
- USB poweredYes
Overview
- Speed
- 2500 Mbit/s
- Connectivity
- Wired
- Weight
- 32 g
- Colour
- Anthracite
- Internal
- No
- USB powered
- Yes
- Brand
- ICY BOX
- Category
- Network Card
- Model
- IB-LAN301-C3
- Part number
- 61030
- EAN / UPC
- 4250078173649
- Also known as
- ICY BOX IB-LAN301-C3 Ethernet 2500 Mbit/s
Specifications
34 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |

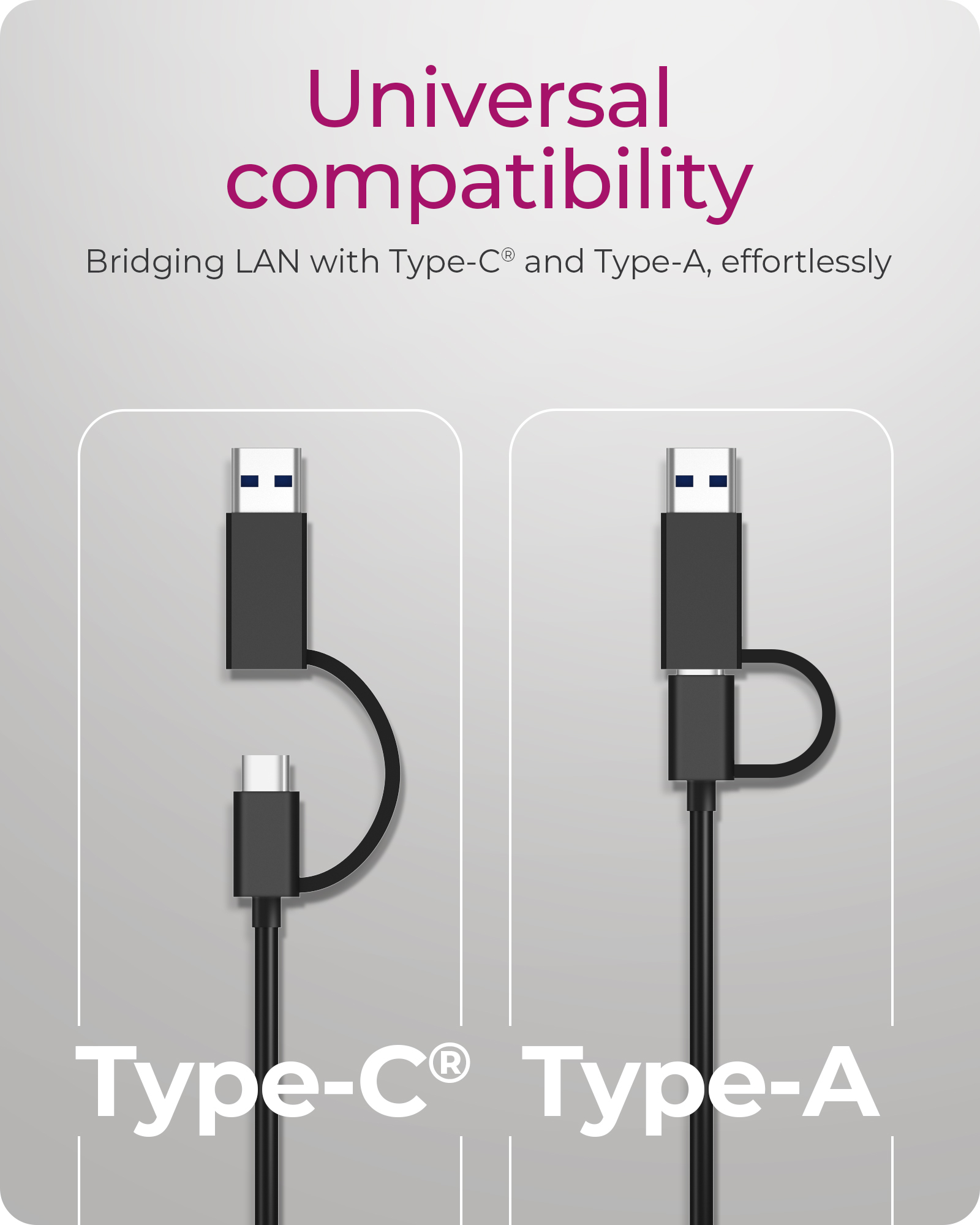

| Host interface | USB Type-A/USB Type-C |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| USB connector form factor | Straight |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 2500 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | 2.5 Gigabit Ethernet |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC/Laptop |
| Product colour | Anthracite |
| Chipset | Realtek RTL8156 |
| Plug and Play | Yes |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 27 mm |
| Depth | 190 mm |
| Height | 15 mm |
| Weight | 32 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 102 mm |
| Package depth | 25 mm |
| Package height | 201 mm |
| Package weight | 122 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 320 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 290 mm |
| Master (outer) case gross weight | 7.3 kg |
| Products per master (outer) case | 60 pc(s) |
Other features
| Specification | Value |
|---|---|
| Housing material | Aluminium, Plastic |
