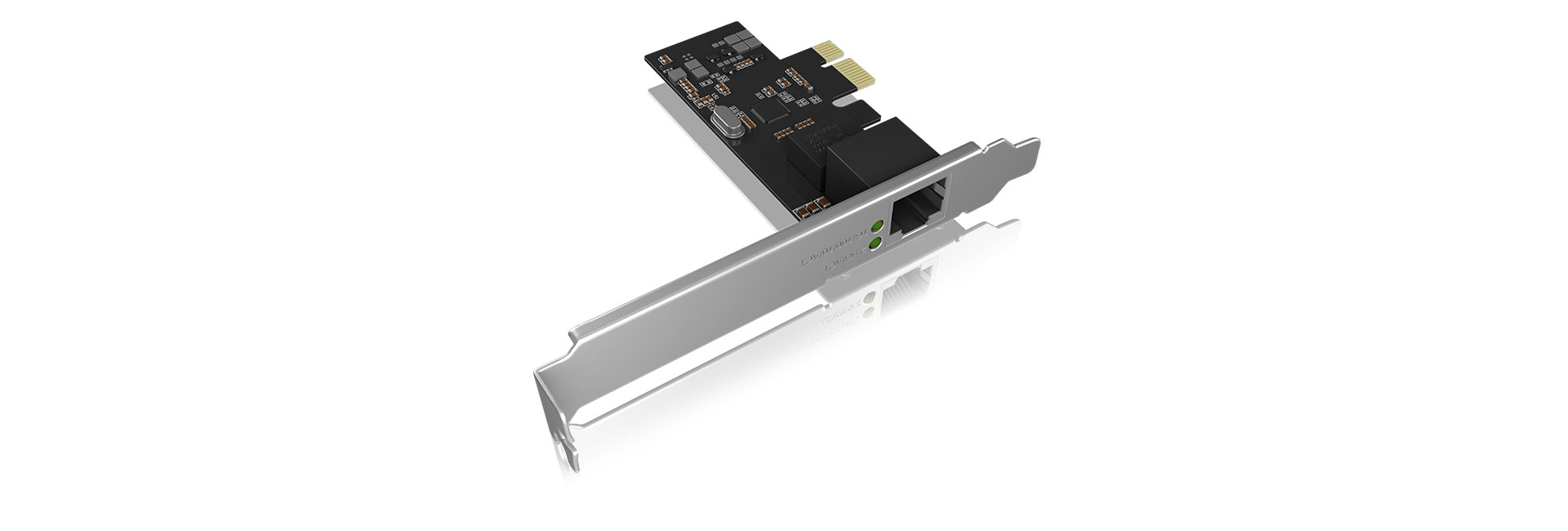

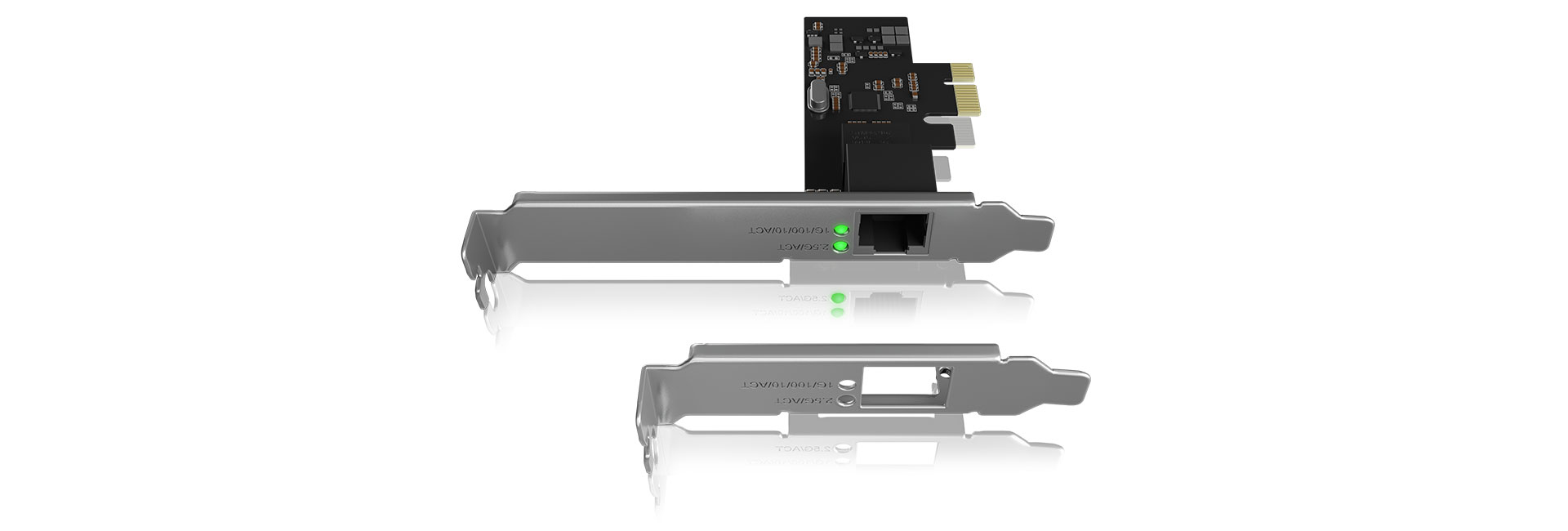

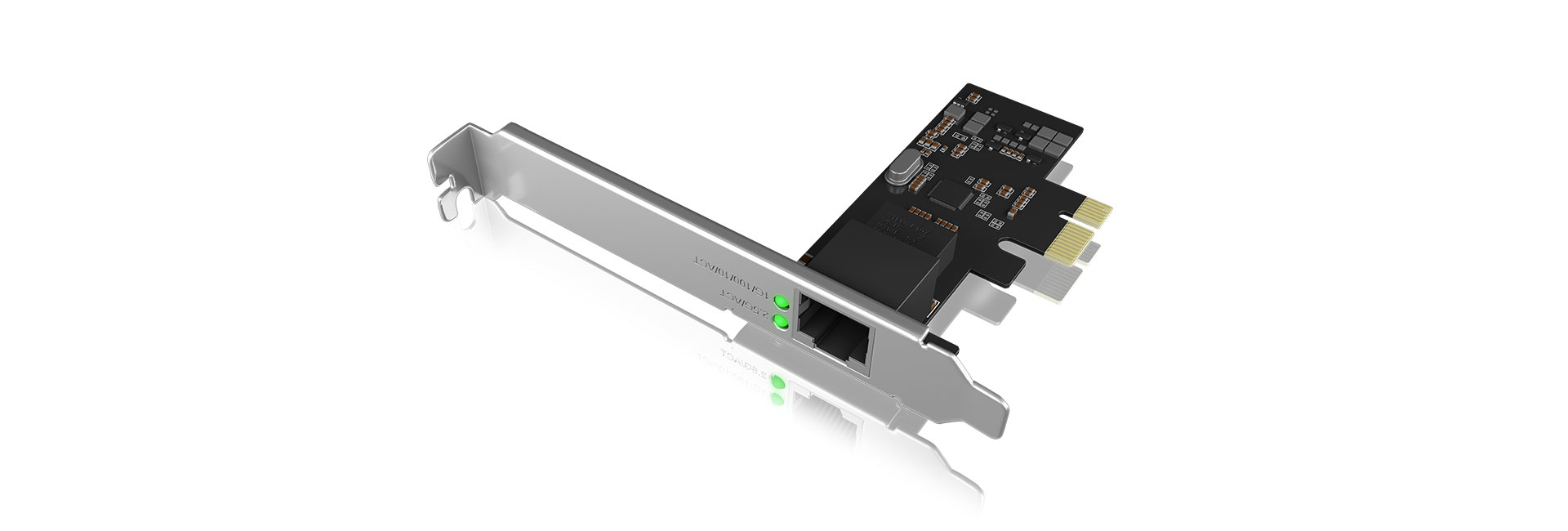

ICY BOX IB-LAN300-PCI Internal Ethernet 2500 Mbit/s

IB-LAN300-PCI Internal Ethernet 2500 Mbit/s

Model IB-LAN300-PCIPart no. 60895EAN 4250078172291

35 specifications

Speed2500 Mbit/s
ConnectivityWired
Weight35 g
ColourBlack, Silver
InternalYes
Width13 mm

See all specifications

Overview

Speed: 2500 Mbit/s
Connectivity: Wired
Weight: 35 g
Colour: Black, Silver
Internal: Yes
Width: 13 mm

Brand: ICY BOX
Category: Network Card
Model: IB-LAN300-PCI
Part number: 60895
EAN / UPC: 4250078172291
Also known as: ICY BOX IB-LAN300-PCI Internal Ethernet 2500 Mbit/s

Specifications

35 specifications in 9 groups

Ports & interfaces

Specification	Value
Connectivity technology	Wired
Host interface	PCI Express
Interface	Ethernet
Ethernet LAN (RJ-45) ports	1

Network

Specification	Value
Maximum data transfer rate	2500 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3u
Ethernet LAN	Yes
Ethernet interface type	2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Wake-on-LAN ready	Yes

Design

Specification	Value
Internal	Yes
Component for	PC
Product colour	Black, Silver
Chipset	Realtek RTL8125B
LED indicators	Yes
Country of origin	China

System requirements

Specification	Value
Windows operating systems supported	Yes
Linux operating systems supported	Yes

Weight & dimensions

Specification	Value
Width	13 mm
Depth	85 mm
Height	35 mm
Weight	35 g

Packaging data

Specification	Value
Package width	120 mm
Package depth	140 mm
Package height	30 mm
Package weight	120 g

Packaging content

Specification	Value
Mounting brackets included	Yes
Manual	Yes

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
Master (outer) case width	365 mm
Master (outer) case length	425 mm
Master (outer) case height	310 mm
Master (outer) case gross weight	5.7 kg
Products per master (outer) case	40 pc(s)

Other features

Specification	Value
Housing material	Metal, Plastic
