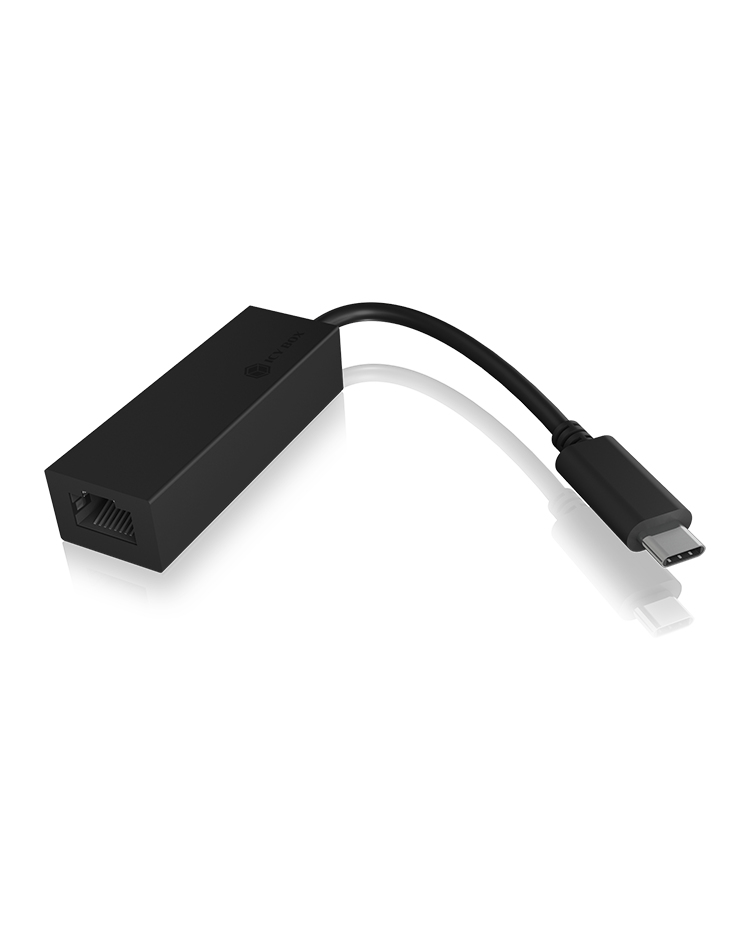

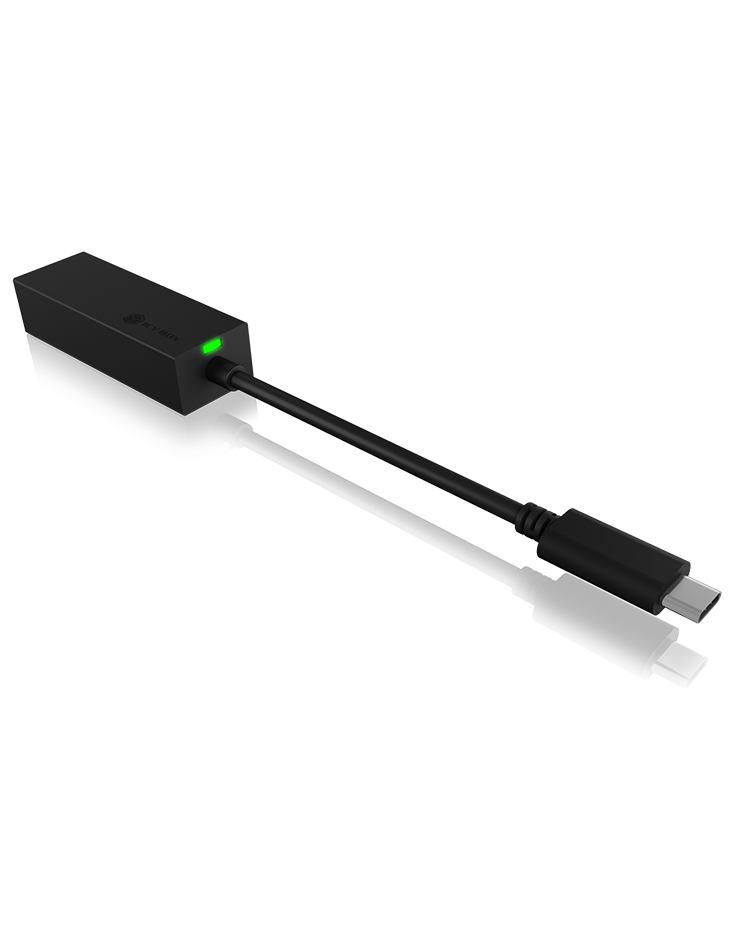

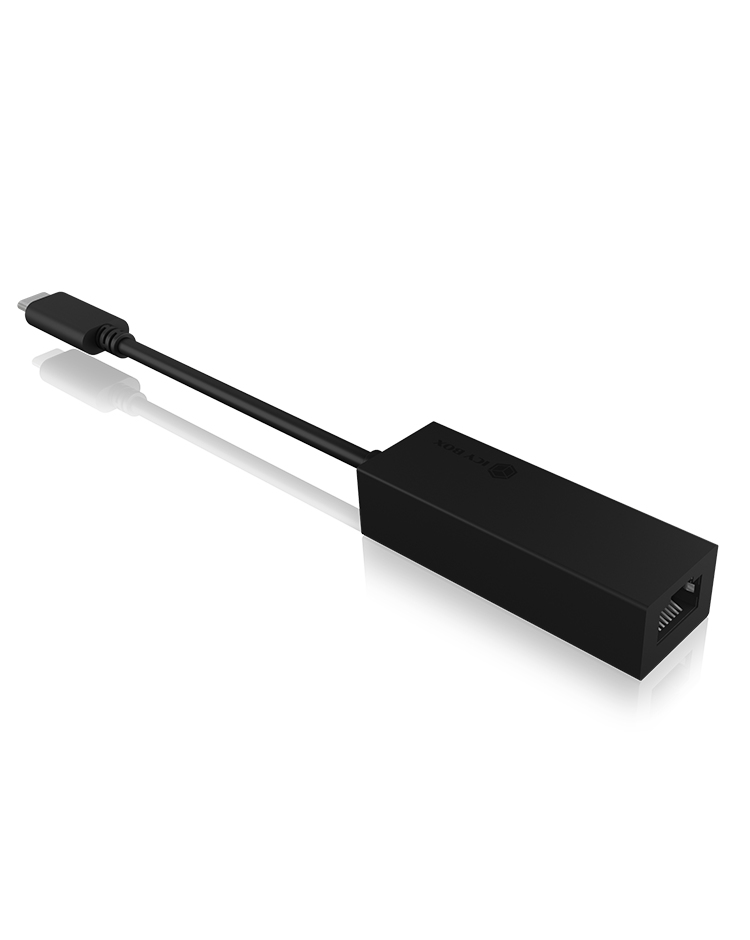

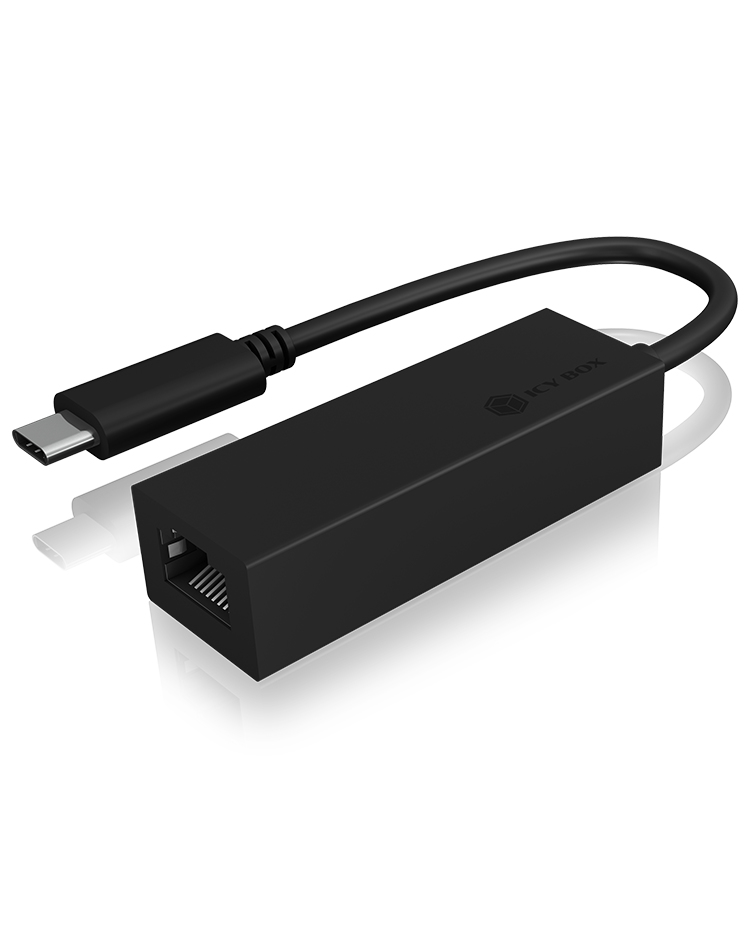

IB-LAN100-C3 Ethernet 1000 Mbit/s
Model IB-LAN100-C3Part no. 60826EAN 4250078171621
39 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight18 g
- ColourBlack
- InternalNo
- USB poweredYes
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 18 g
- Colour
- Black
- Internal
- No
- USB powered
- Yes
- Brand
- ICY BOX
- Category
- Network Card
- Model
- IB-LAN100-C3
- Part number
- 60826
- EAN / UPC
- 4250078171621
- Also known as
- ICY BOX IB-LAN100-C3 Ethernet 1000 Mbit/s
Specifications
39 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB Type-C |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| USB connector form factor | Straight |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| LAN controller | Realtek RTL8153 |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC |
| Product colour | Black |
| Chipset | Realtek RTL8153 |
| Plug and Play | Yes |
| Country of origin | China |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 60 mm |
| Depth | 22 mm |
| Height | 15 mm |
| Weight | 18 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 1000 mm |
| Package depth | 20 mm |
| Package height | 85 mm |
| Package weight | 58 g |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176200 |
| Master (outer) case width | 215 mm |
| Master (outer) case length | 230 mm |
| Master (outer) case height | 220 mm |
| Master (outer) case gross weight | 2.3 kg |
| Products per master (outer) case | 40 pc(s) |
Other features
| Specification | Value |
|---|---|
| Housing material | ABS |
| Cable length | 0.085 m |
