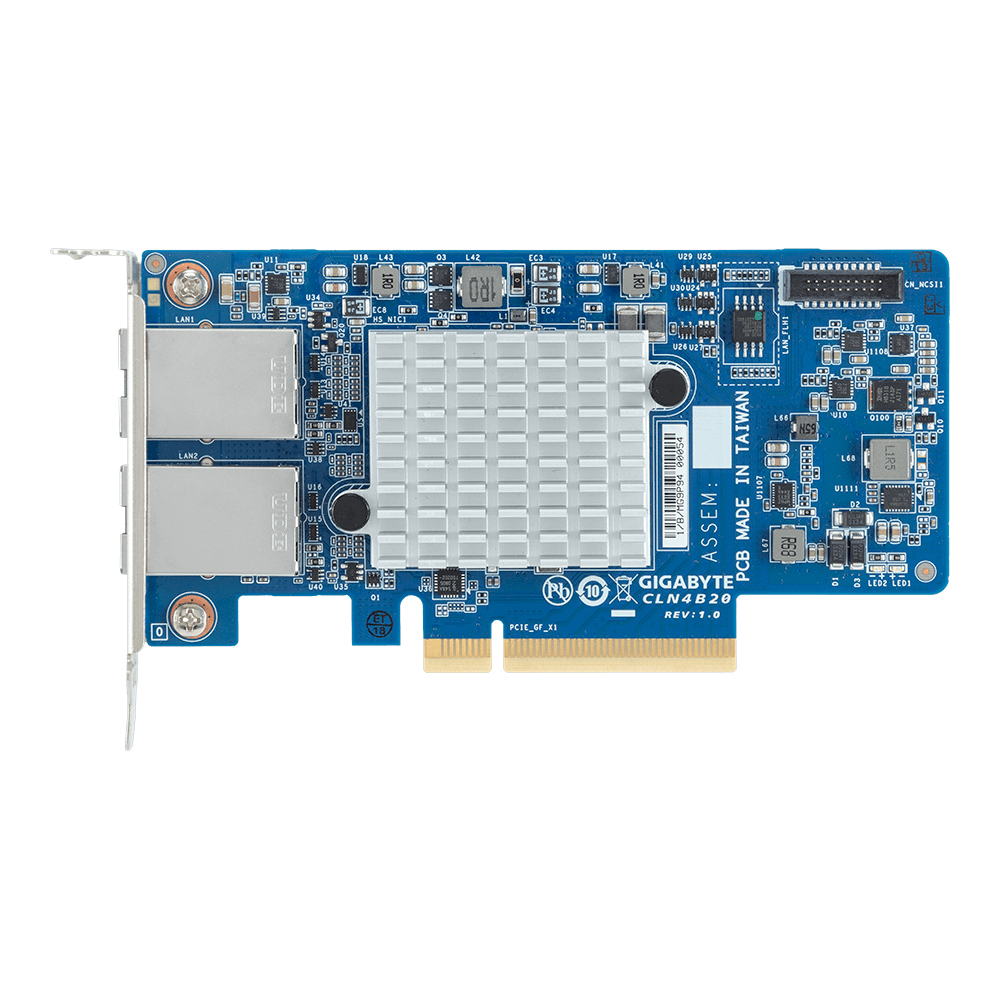

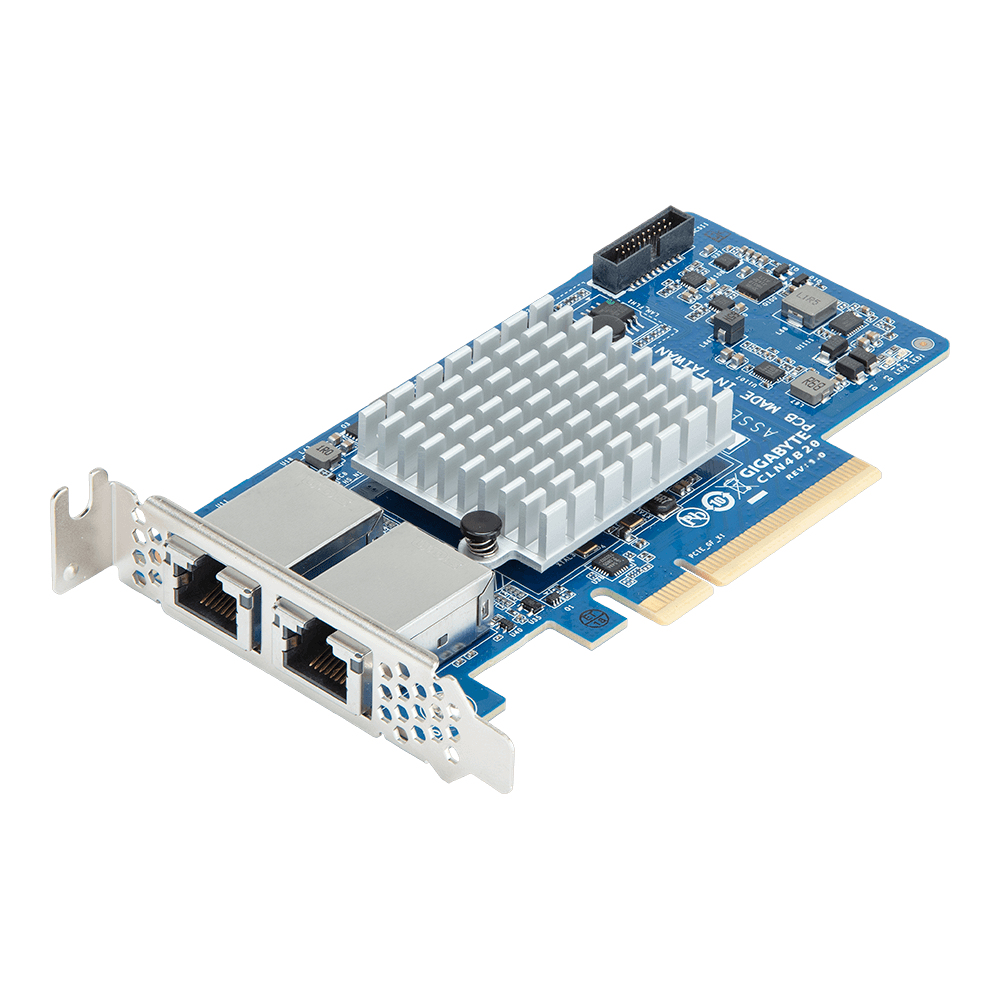

CLN4B20 network card Internal Ethernet 10000 Mbit/s
Model CLN4B20
19 specifications
- Speed10000 Mbit/s
- ConnectivityWired
- InternalYes
- Width68.9 mm
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired
- Internal
- Yes
- Width
- 68.9 mm
- Brand
- GIGABYTE
- Category
- Network Card
- Model
- CLN4B20
- Part number
- CLN4B20
- Also known as
- GIGABYTE CLN4B20 network card Internal Ethernet 10000 Mbit/s
Specifications
19 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI version | 3.0 |
| PCI Card form factor | Full-height (low-profile) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,10000 Mbit/s |
| LAN controller | Broadcom BCM57416 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC/Server |
| Plug and Play | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 68.9 mm |
| Depth | 131 mm |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Packaging content
| Specification | Value |
|---|---|
| Mounting brackets included | Yes |
| Packaging content | 1 x Full-height bracket 1 x Low-profile bracket |
