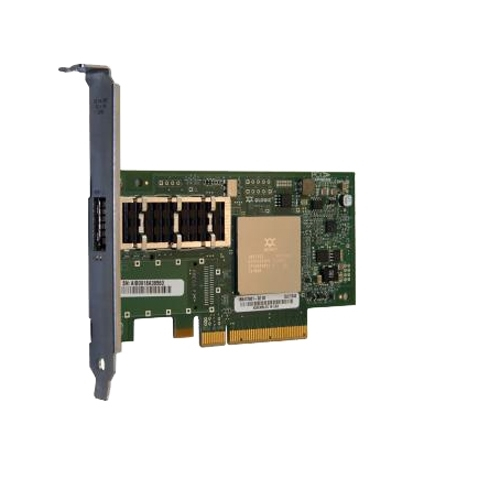

Dell QLogic QLE7340
Model QLogic QLE7340Part no. 406-10335
15 specifications
- Speed40000 Mbit/s
- ConnectivityWired
- InternalYes
- Power consumption (typical)3.8 W
- Operating temperature (T-T)0 - 55 °C
Overview
- Speed
- 40000 Mbit/s
- Connectivity
- Wired
- Internal
- Yes
- Power consumption (typical)
- 3.8 W
- Operating temperature (T-T)
- 0 - 55 °C
- Brand
- Dell
- Category
- Network Card
- Model
- QLogic QLE7340
- Part number
- 406-10335
- Also known as
- DELL QLogic QLE7340 Internal Ethernet 40000 Mbit/s
Specifications
15 specifications in 5 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| PCI version | 2.0 |
| PCI Card form factor | Full-height |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 40000 Mbit/s |
| Data link protocols | InfiniBand |
| Quality of Service (QoS) support | Yes |
| Supported network protocols | TCP/IP |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| LED indicators | Status |
| Compatible products | PowerEdge C6105 PowerEdge C6145 PowerEdge C6220 PowerEdge C8220 PowerEdge M630 PowerEdge R710 PowerEdge T710 |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 3.8 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
