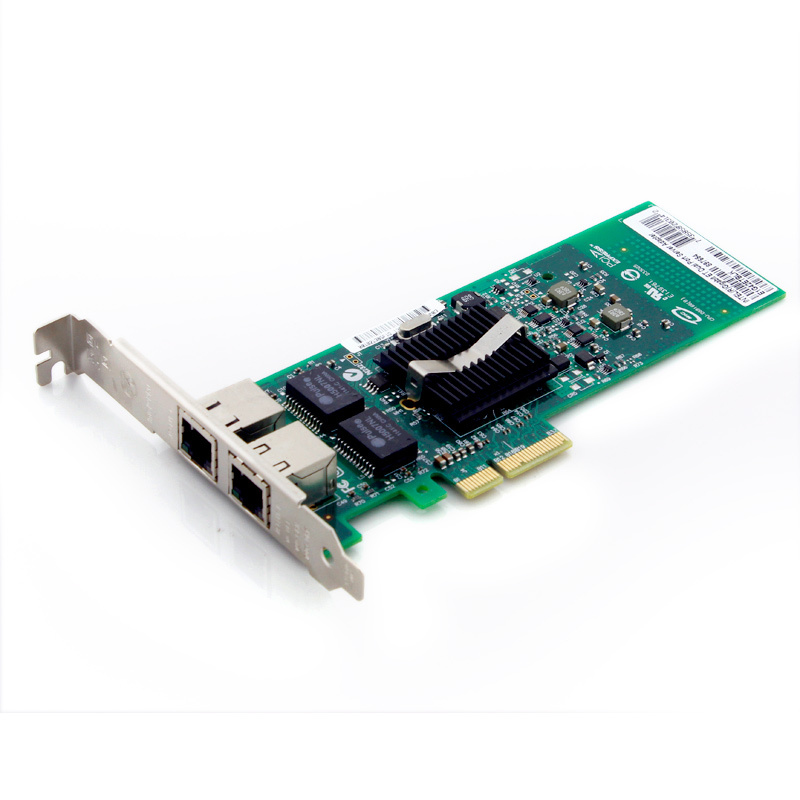

Dell 540-10885 network card Internal Ethernet 1000 Mbit/s

Dell 540-10885 network card Internal Ethernet 1000 Mbit/s

Model 540-10885EAN 5397063767373

34 specifications
  • Speed1000 Mbit/s
  • ConnectivityWired
  • InternalYes
  • Output voltage3.3 V
  • Operating temperature (T-T)0 - 55 °C
  • Width167 mm
See all specifications

Overview

Speed
1000 Mbit/s
Connectivity
Wired
Internal
Yes
Output voltage
3.3 V
Operating temperature (T-T)
0 - 55 °C
Width
167 mm
Brand
Dell
Category
Network Card
Model
540-10885
Part number
540-10885
EAN / UPC
5397063767373, 5711783173021, 5742220981466
Also known as
DELL 540-10885 network card Internal Ethernet 1000 Mbit/s

Specifications

34 specifications in 10 groups

Ports & interfaces

Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet
Ethernet LAN (RJ-45) ports2

Network

Maximum data transfer rate1000 Mbit/s
Networking standardsIEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3ae, IEEE 802.3u, IEEE 802.3x
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000BaseT(X)
Copper ethernet cabling technology1000BASE-T, 100BASE-T, 10BASE-T
Wake-on-LAN readyYes
Full duplexYes
Quality of Service (QoS) supportYes
Supported network protocolsTCP/IP, IPv6

Design

InternalYes
Component forServer
ChipsetIntel® 82576
LED indicatorsYes
CertificationVCCI, EN, ICES, IEC, UL, CISPR, EMC, FCC, CSA, MIC, AS/NZS 3548, BSMI
Compatible productsDell PowerEdge R515 Dell PowerEdge R610 Dell PowerEdge R710 Dell PowerEdge R715 Dell PowerEdge R810 Dell PowerEdge R815 Dell PowerEdge R910 Dell PowerEdge T110 Dell PowerEdge T310 Dell PowerEdge T410 Dell PowerEdge T610 Dell PowerVault DL2200 Dell PowerVault NX3000 Dell PowerVault NX3100

Power

Output voltage3.3 V
Power consumption (typical)2.9 W

System requirements

Windows operating systems supportedYes
Linux operating systems supportedFreeBSD 7.0, RedHat EL Linux 5.0, SuSE Linux 10, SuSE Linux 9.3
Other operating systems supportedFreeBSD

Operational conditions

Operating temperature (T-T)0 - 55 °C

Weight & dimensions

Width167 mm
Height68 mm

Packaging content

ManualYes

Technical details

Compliance certificatesRoHS

Other features

Quick start guideYes
Flow control supportYes
Intel Virtual Machine Device Queues (VMDq)Yes
Bundled softwareIntel PROSet
