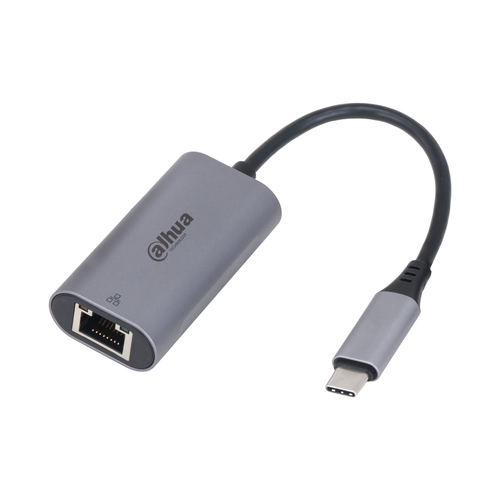

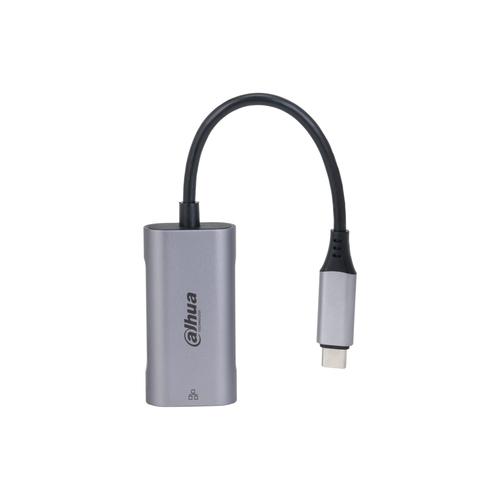

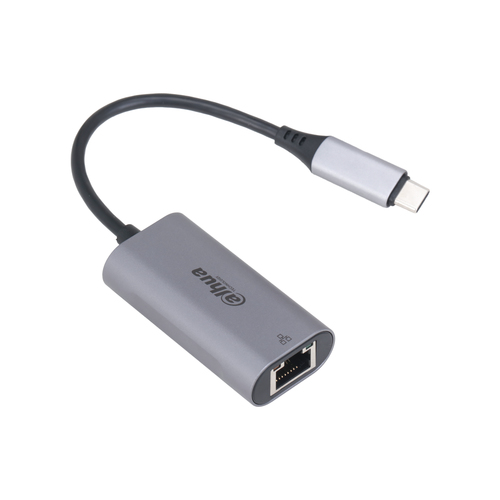

USB 3.0 Type-C to RJ45 Adapter
Model TC31Part no. DH-TC31EAN 6923172594532
33 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight25 g
- ColourGrey
- InternalNo
- Output voltage5.25 V
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 25 g
- Colour
- Grey
- Internal
- No
- Output voltage
- 5.25 V
- Brand
- Dahua Technology
- Category
- Network Card
- Model
- TC31
- Part number
- DH-TC31
- EAN / UPC
- 6923172594532
- Also known as
- Dahua Technology USB 3.0 Type-C to RJ45 Adapter
Specifications
33 specifications in 8 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB Type-C |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| USB connector form factor | Straight |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | Tablet |
| Product colour | Grey |
| Plug and Play | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Output voltage | 5.25 V |
| Power consumption (typical) | 1.05 W |
| Power consumption | 200 mA |
| USB powered | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 30 mm |
| Depth | 58 mm |
| Height | 15.5 mm |
| Weight | 25 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 96 mm |
| Package depth | 175 mm |
| Package height | 25.5 mm |
| Package weight | 60 g |
Other features
| Specification | Value |
|---|---|
| Housing material | Aluminium |
