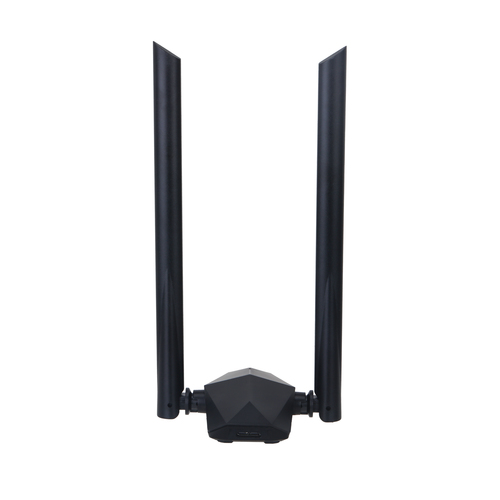

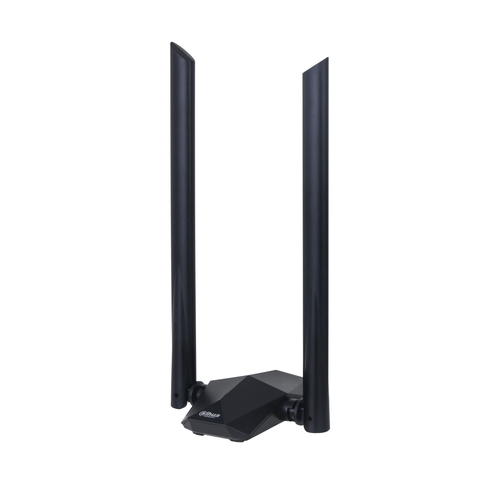

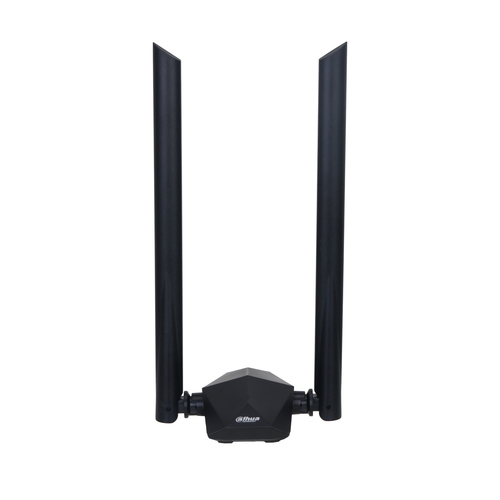

802.11AX 1800M wireless adapter
Model NC1800Part no. DH-NC1800EAN 6923172582539
34 specifications
- Speed1800 Mbit/s
- ConnectivityWireless
- Weight250 g
- ColourBlack
- InternalNo
- Power consumption (typical)4 W
Overview
- Speed
- 1800 Mbit/s
- Connectivity
- Wireless
- Weight
- 250 g
- Colour
- Black
- Internal
- No
- Power consumption (typical)
- 4 W
- Brand
- Dahua Technology
- Category
- Network Card
- Model
- NC1800
- Part number
- DH-NC1800
- EAN / UPC
- 6923172582539
- Also known as
- Dahua Technology 802.11AX 1800M wireless adapter
Specifications
34 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | USB |
| Interface | WLAN |
| USB ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1800 Mbit/s |
| Networking standards | IEEE 802.11ax |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Frequency range | 2.4 - 5 GHz |
| Top Wi-Fi standard | Wi-Fi 6E (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Product colour | Black |
| Antenna | Yes |
| Antenna design | External |
| Antenna type | 2x2 |
| Antenna direction type | Omni-directional |
| Antenna gain level (max) | 5 dBi |
| Plug and Play | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 4 W |
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 110 mm |
| Depth | 90 mm |
| Height | 207 mm |
| Weight | 250 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 330 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC) |
