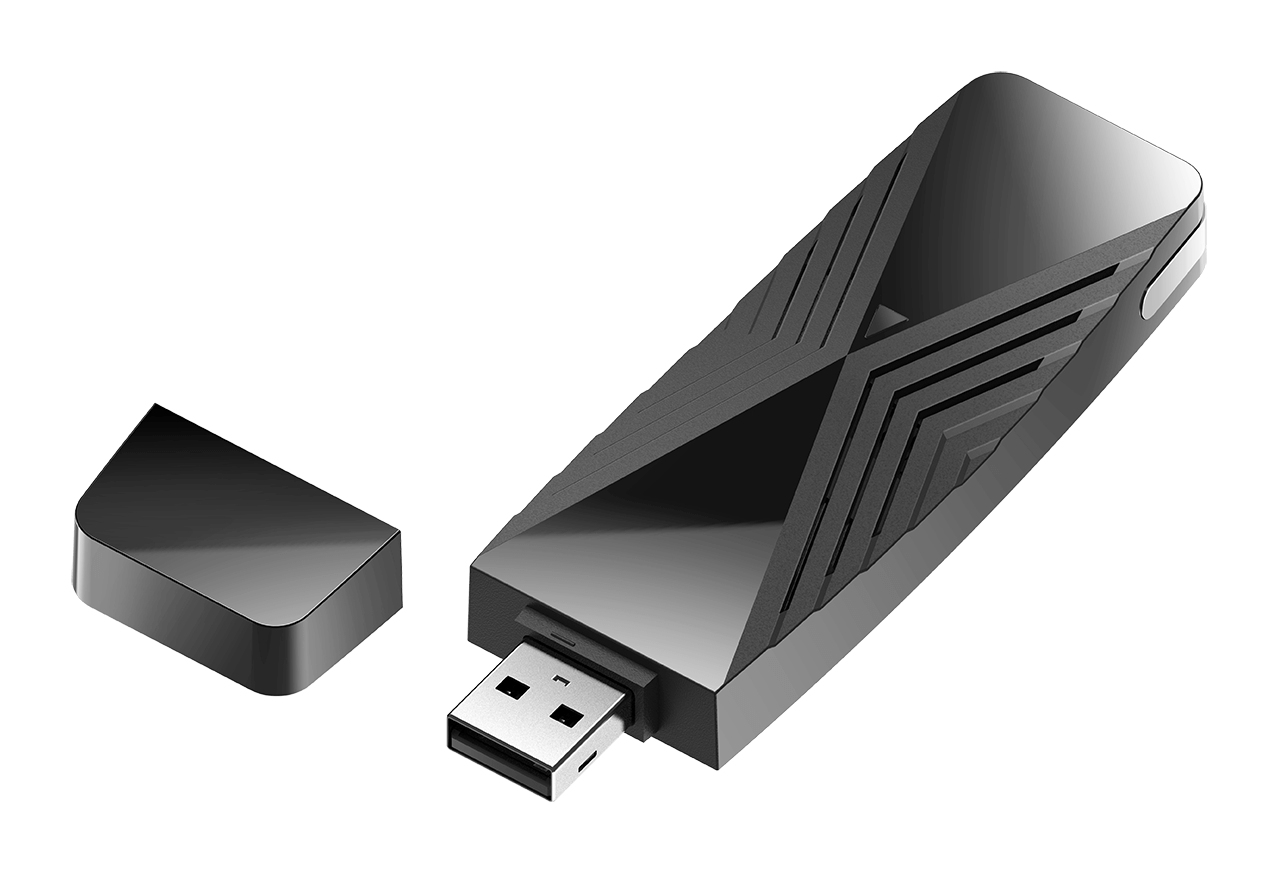

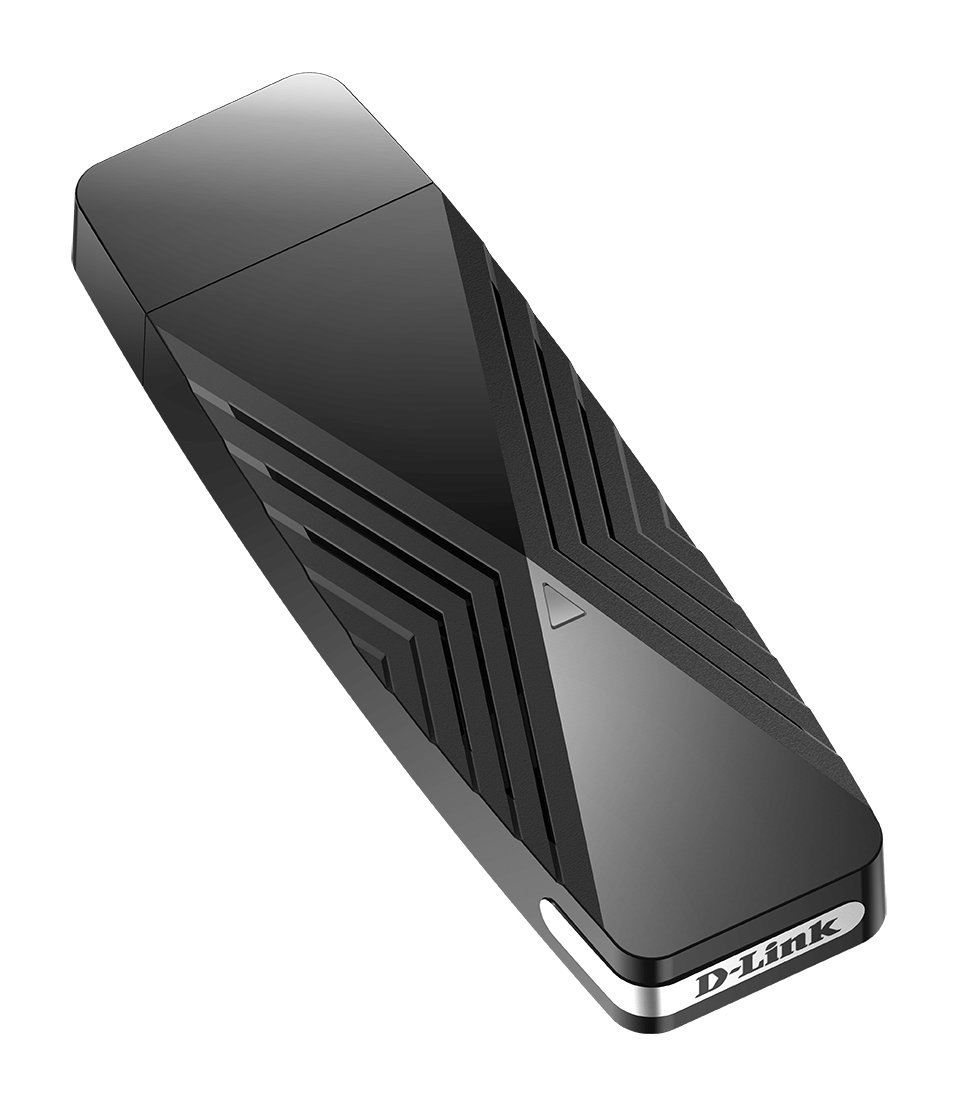

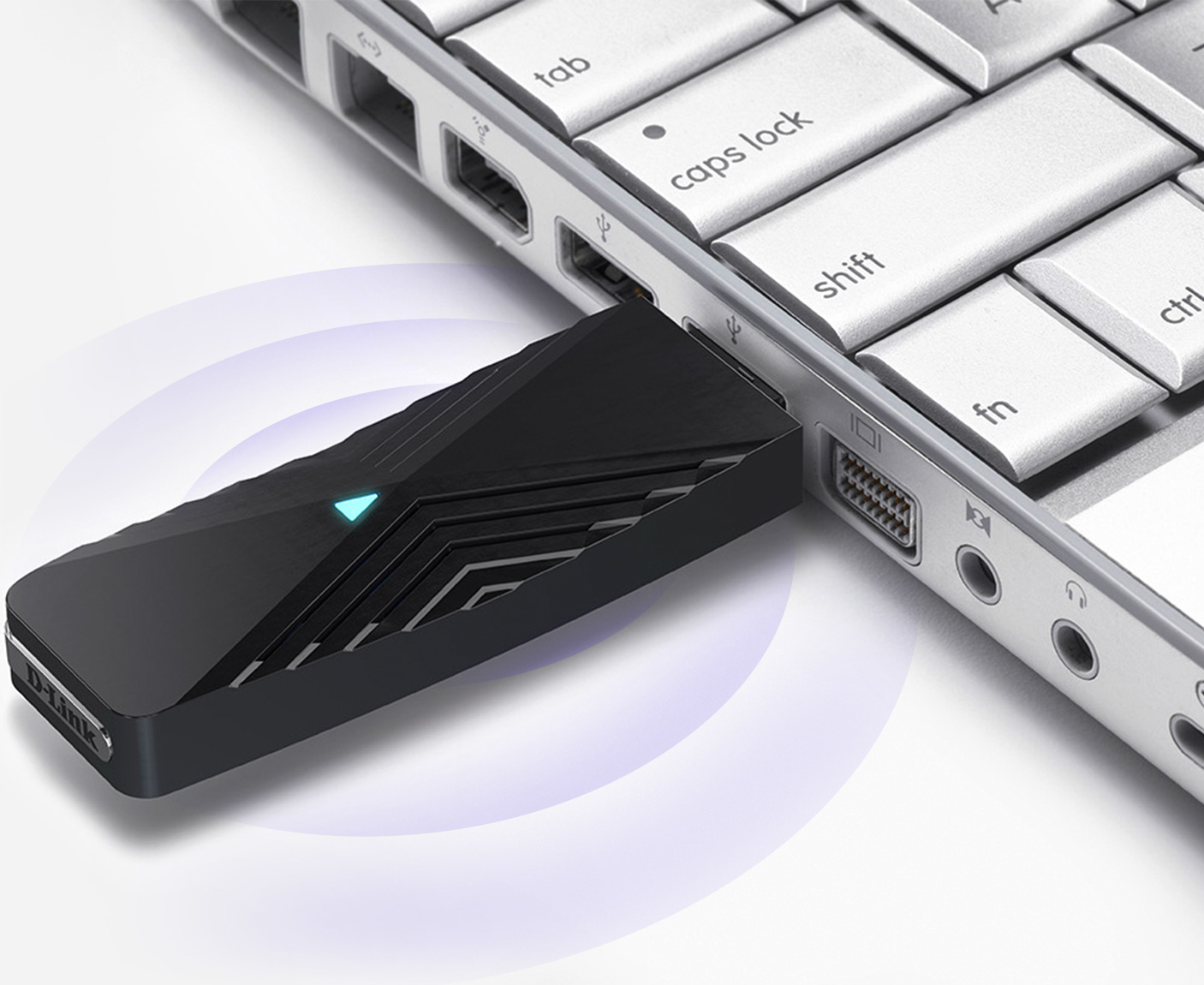

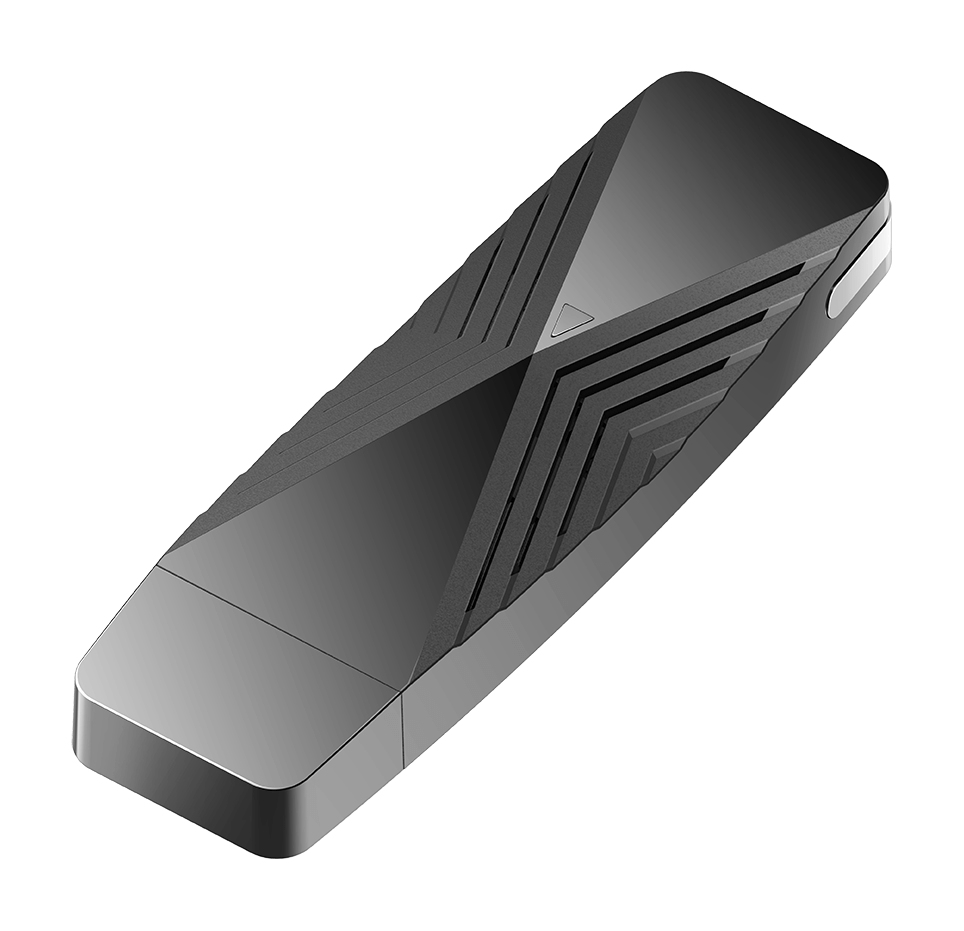

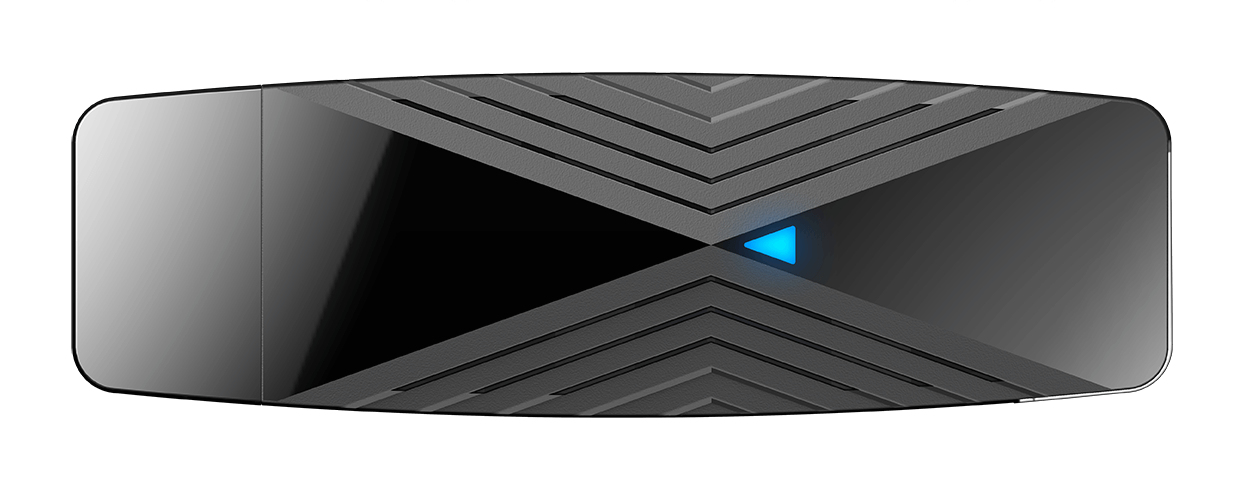

AX1800 Wi-Fi USB Adapter
Model DWA-X1850EAN 790069458392
36 specifications
- Speed1800 Mbit/s
- ConnectivityWireless
- Weight23.6 g
- ColourBlack
- InternalNo
- Output voltage5 V
Overview
- Speed
- 1800 Mbit/s
- Connectivity
- Wireless
- Weight
- 23.6 g
- Colour
- Black
- Internal
- No
- Output voltage
- 5 V
- Brand
- D-Link
- Category
- Network Card
- Model
- DWA-X1850
- Part number
- DWA-X1850
- EAN / UPC
- 790069458392, 790069459078, 790069462283, 790069462290
- Also known as
- D-Link AX1800 Wi-Fi USB Adapter
Specifications
36 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | USB |
| Interface | WLAN |
| Ethernet LAN (RJ-45) ports | 0 |
| USB connector form factor | Straight |
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1800 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |

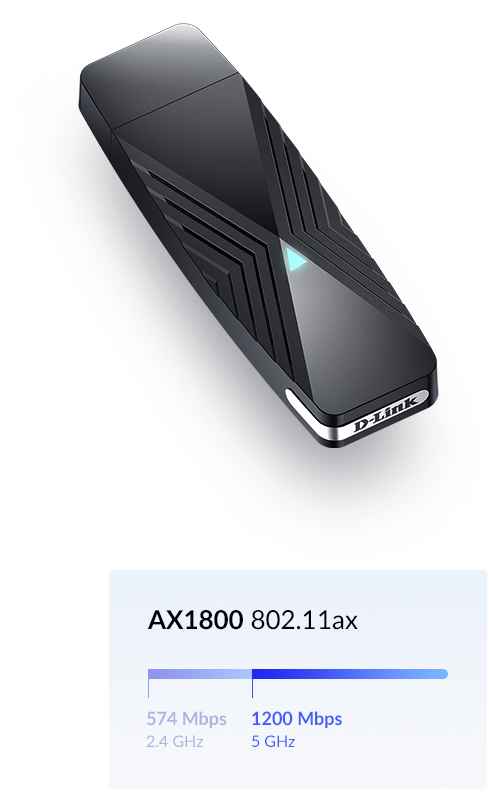

| WLAN data transfer rates supported | 574,1200 Mbit/s |
| Security algorithms | WPA2, WPA3 |
| MU-MIMO | Yes |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC/Laptop |
| Product colour | Black |
| Antenna | Yes |
| Antenna design | Internal |
| Antenna type | Internal |
Power
| Specification | Value |
|---|---|
| Output voltage | 5 V |
| Power consumption | 464 mA |
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 IoT Enterprise, Windows 10 Pro, Windows 10 Pro x64, Windows 10 x64, Windows 7, Windows 7 Enterprise, Windows 7 Enterpris |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 75 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 30 mm |
| Depth | 95.5 mm |
| Height | 12.7 mm |
| Weight | 23.6 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
