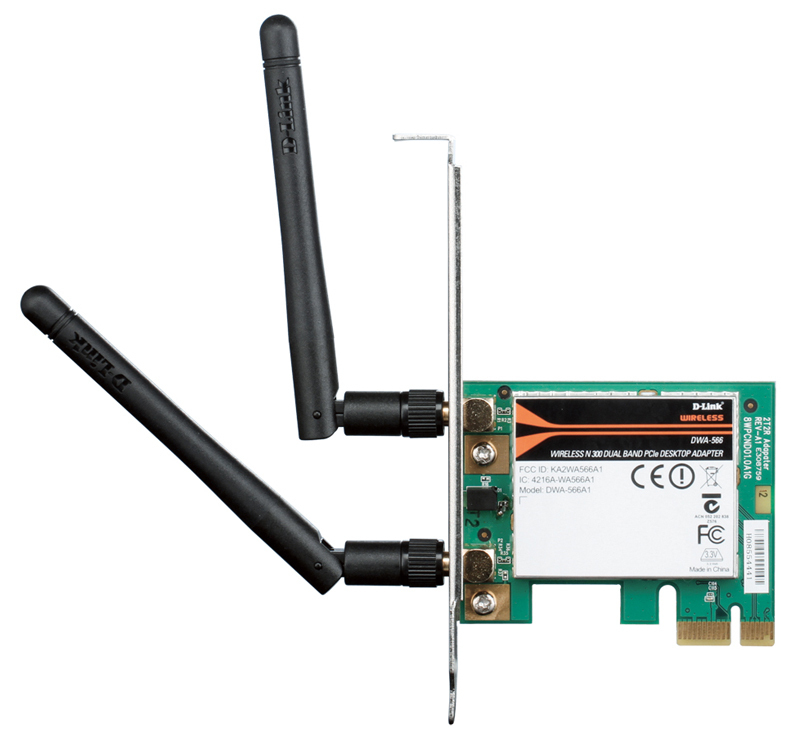

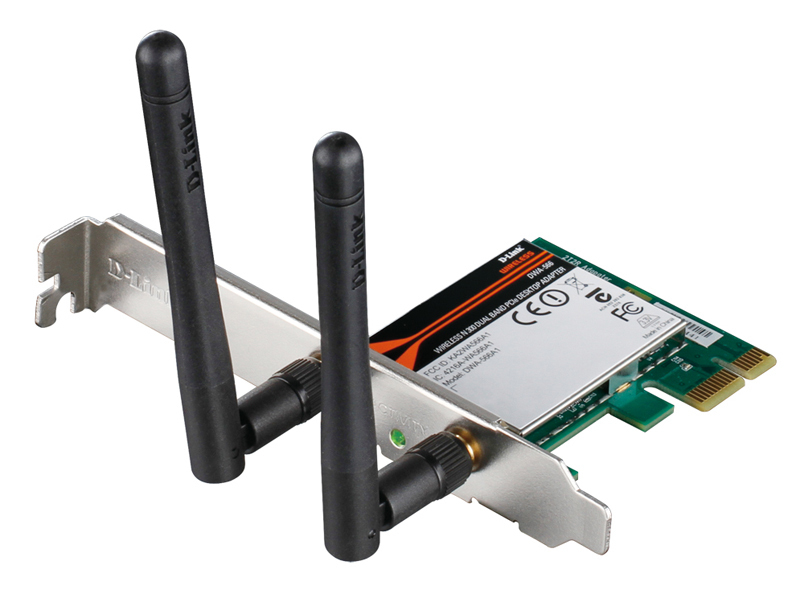

D-Link DWA-566 network card Internal WLAN 300 Mbit/s

D-Link DWA-566 network card Internal WLAN 300 Mbit/s

Model DWA-566EAN 7900693473828

27 specifications
  • Speed300 Mbit/s
  • ConnectivityWireless
  • Weight42.5 g
  • ColourBlack, Silver
  • InternalYes
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Speed
300 Mbit/s
Connectivity
Wireless
Weight
42.5 g
Colour
Black, Silver
Internal
Yes
Operating temperature (T-T)
0 - 40 °C
Brand
D-Link
Category
Network Card
Model
DWA-566
Part number
DWA-566
EAN / UPC
7900693473828, 021111181853, 790069347382, 790069356353 +3 more
Also known as
D-Link DWA-566 network card Internal WLAN 300 Mbit/s

Specifications

27 specifications in 7 groups

Ports & interfaces

Connectivity technologyWireless
Host interfacePCI Express
InterfaceWLAN

Network

Maximum data transfer rate300 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-FiYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Frequency range2.4 - 6.825 GHz
Top Wi-Fi standardWi-Fi 4 (802.11n)
Wi-Fi standards802.11a, 802.11b, 802.11g
WLAN data transfer rates supported1,2,5.5,6,9,11,12,18,24,36,54,150,300 Mbit/s
Security algorithms128-bit WEP, 64-bit WEP, WPA, WPA2

Design

InternalYes
Product colourBlack, Silver
LED indicatorsYes
CertificationFCC B, IC B, CE, C-Tick

System requirements

Windows operating systems supportedWindows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows Vista Business, Windows Vista Business x64, Windows Vi

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 65 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)5 - 95%

Weight & dimensions

Width63.5 mm
Depth55 mm
Height11.4 mm
Weight42.5 g

Other features

Gain2 dBi
Link/Act LEDYes
