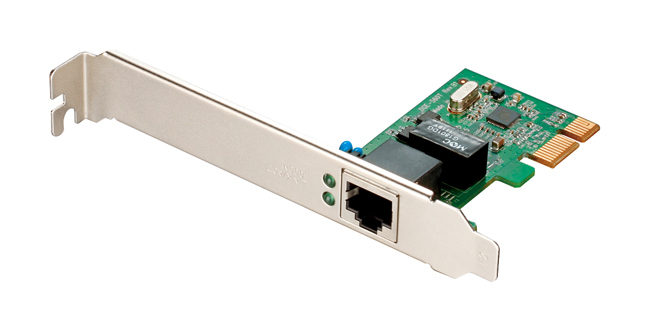

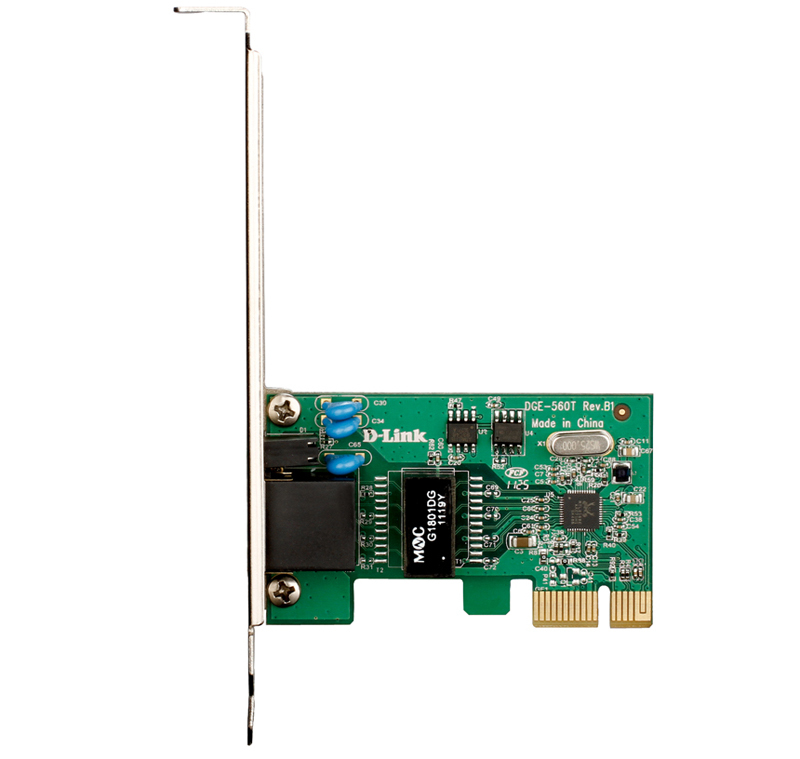

D-Link DGE-560T Internal Ethernet 2000 Mbit/s

D-Link DGE-560T Internal Ethernet 2000 Mbit/s

Model DGE-560TPart no. DGE-560T/B1BEAN 790069385926

38 specifications
  • Speed2000 Mbit/s
  • ConnectivityWired
  • ColourGreen, Grey
  • InternalYes
  • Output voltage3.3 V
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Speed
2000 Mbit/s
Connectivity
Wired
Colour
Green, Grey
Internal
Yes
Output voltage
3.3 V
Operating temperature (T-T)
0 - 40 °C
Brand
D-Link
Category
Network Card
Model
DGE-560T
Part number
DGE-560T/B1B
EAN / UPC
790069385926
Also known as
D-Link DGE-560T Internal Ethernet 2000 Mbit/s

Specifications

38 specifications in 9 groups

Ports & interfaces

Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet
Ethernet LAN (RJ-45) ports1

Network

Maximum data transfer rate2000 Mbit/s
Networking standardsIEEE 802.1p, IEEE 802.1Q, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Cabling technology10/100/1000BaseT(X)
Wi-FiNo
Wake-on-LAN readyYes
Auto MDIX IEEEYes
Full duplexYes
Web-based managementYes
Jumbo frames supportYes
Quality of Service (QoS) supportYes
Supported network protocolsTCP, UDP, IP

Design

InternalYes
Product colourGreen, Grey
Plug and PlayYes
LED indicatorsYes
CertificationCE FCC IC BSMI

Power

Output voltage3.3 V
Power consumption (typical)0.72 W
USB poweredNo

System requirements

Windows operating systems supportedYes
Mac operating systems supportedYes
Linux operating systems supportedYes
Other operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-40 - 70 °C
Operating relative humidity (H-H)10 - 90%

Weight & dimensions

Width40 mm
Depth12 mm
Height6540 mm

Packaging data

Quantity per pack1 pc(s)

Other features

Flow control supportYes
Management protocolsSNMP
