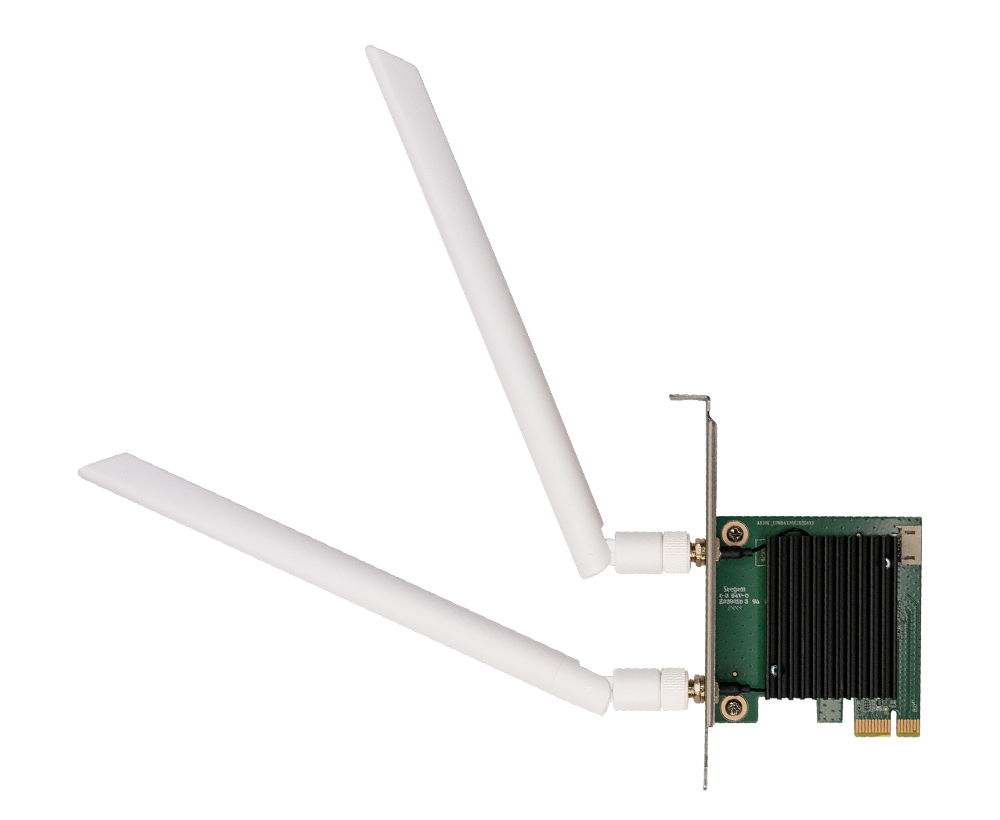

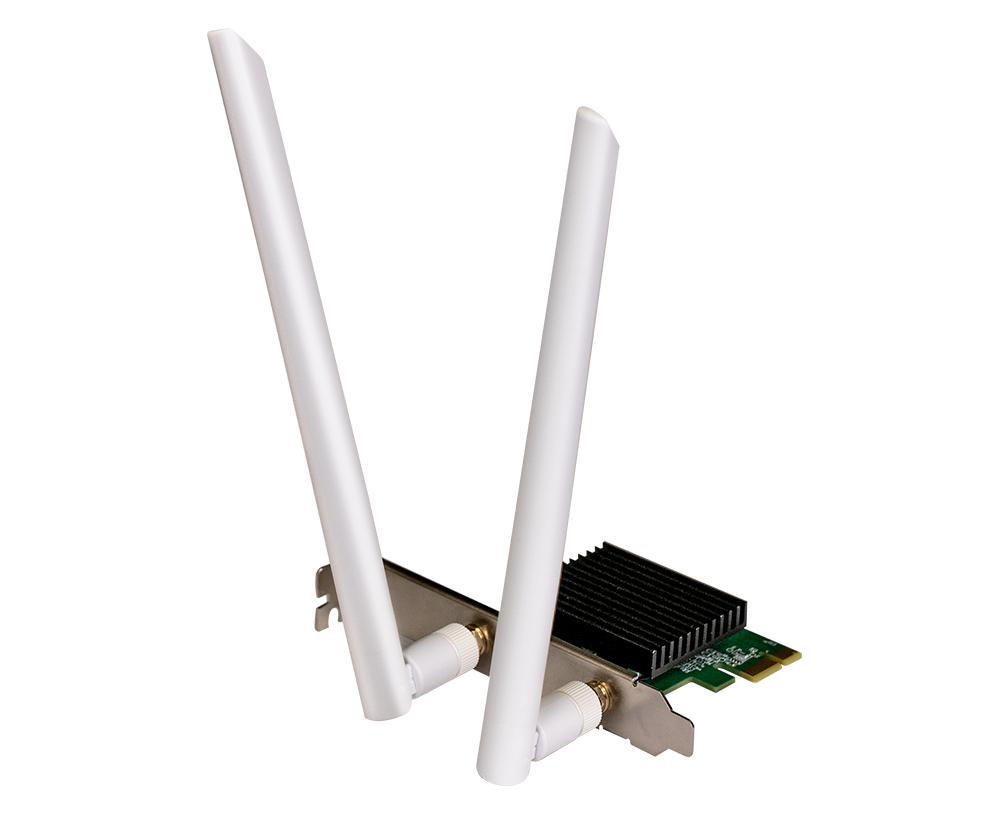

AX3000 Wi-Fi 6 PCIe Adapter with BT 5.3
Model AX30EEAN 790069476280
28 specifications
- Speed3000 Mbit/s
- ConnectivityWireless
- Weight87 g
- ColourWhite
- InternalYes
- Windows operating systems supportedWindows 10, Windows 11
Overview
- Speed
- 3000 Mbit/s
- Connectivity
- Wireless
- Weight
- 87 g
- Colour
- White
- Internal
- Yes
- Windows operating systems supported
- Windows 10, Windows 11
- Brand
- D-Link
- Category
- Network Card
- Model
- AX30E
- Part number
- AX30E
- EAN / UPC
- 790069476280
- Also known as
- D-Link AX3000 Wi-Fi 6 PCIe Adapter with BT 5.3
Specifications
28 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN / Bluetooth |
| PCI version | 2.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 3000 Mbit/s |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 6 (802.11ax) |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported | 574,2402 Mbit/s |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC/Server |
| Product colour | White |

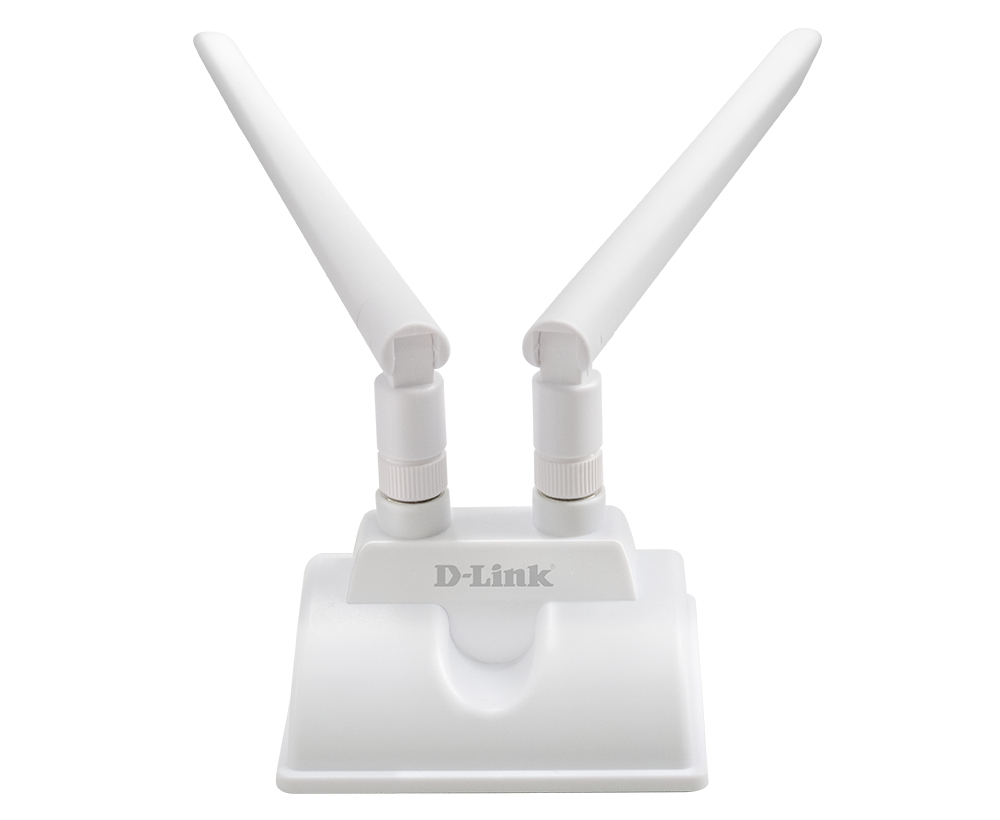

| Antenna | Yes |
| Antenna design | External |
| Antenna gain level (max) | 3.25 dBi |
| LED indicators | Power, Status |
| Certification | FCC Class B; CE; IC |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 65 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 121 mm |
| Depth | 79 mm |
| Height | 25 mm |
| Weight | 87 g |
