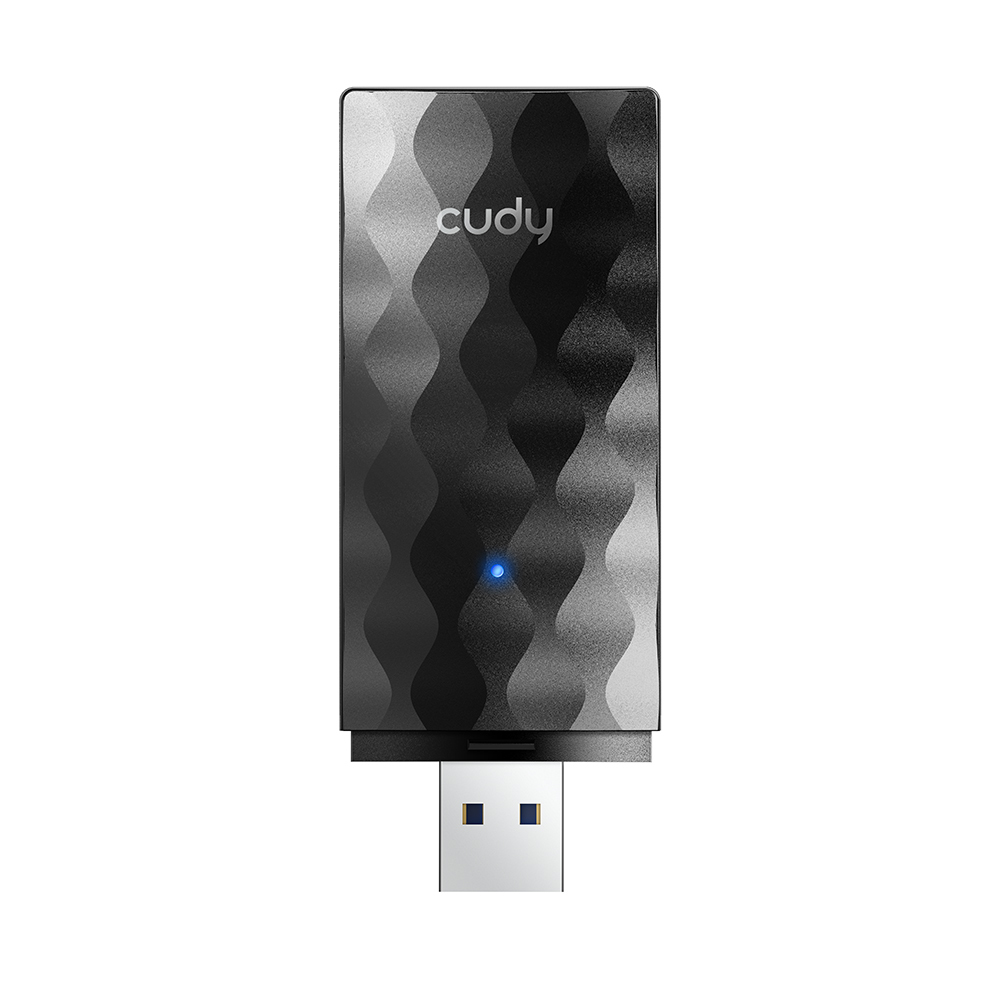

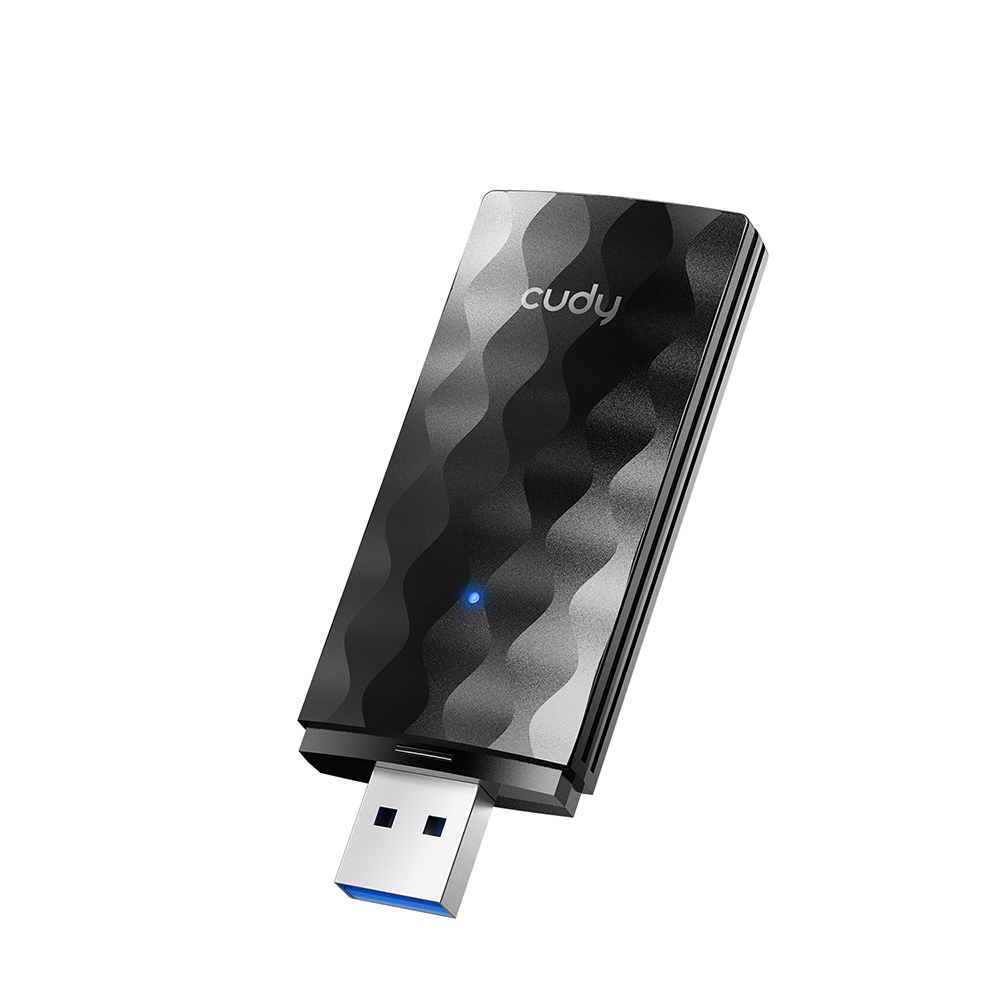

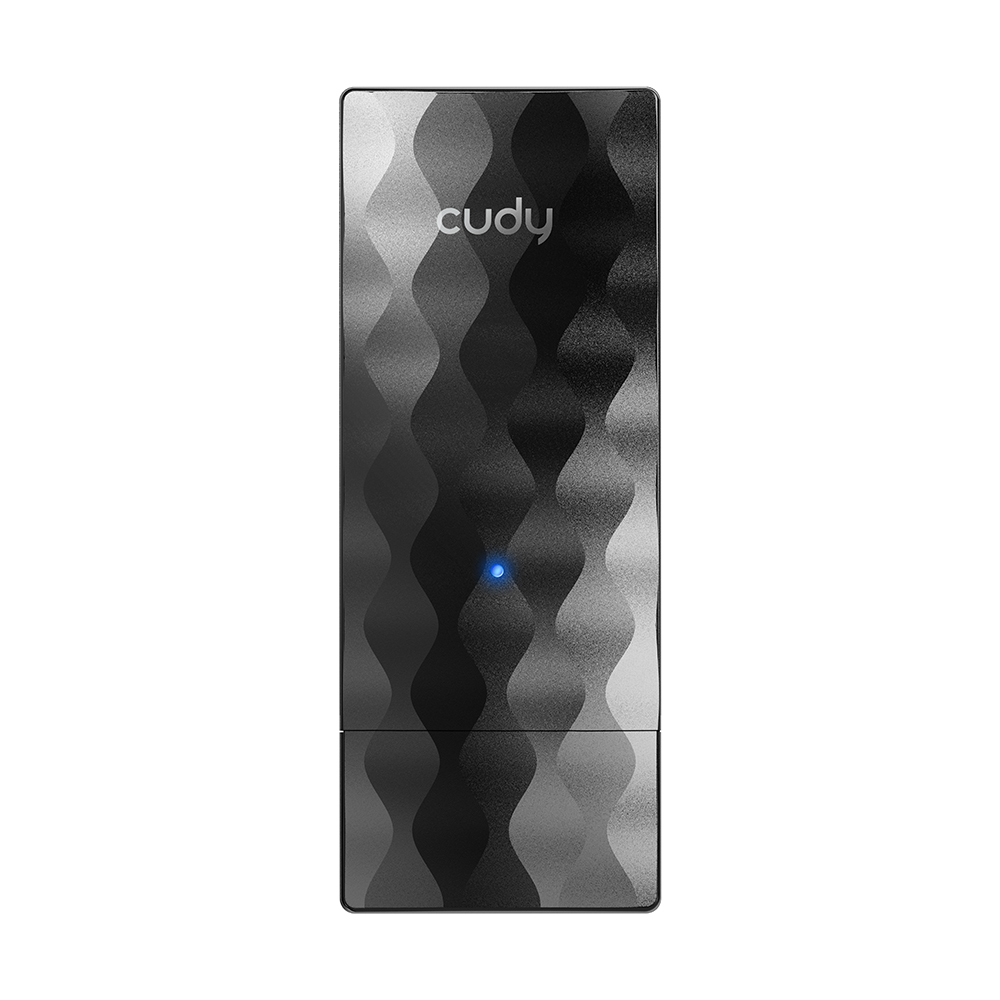

Cudy WU1800 network card WLAN 1201 Mbit/s

WU1800 network card WLAN 1201 Mbit/s

Model WU1800EAN 6971690792305

28 specifications

Speed1201 Mbit/s
ConnectivityWireless
ColourBlack
InternalNo
Mac operating systems supportedMacOS
Operating temperature (T-T)0 - 40 °C

See all specifications

Overview

Speed: 1201 Mbit/s
Connectivity: Wireless
Colour: Black
Internal: No
Mac operating systems supported: MacOS
Operating temperature (T-T): 0 - 40 °C

Brand: Cudy
Category: Network Card
Model: WU1800
Part number: WU1800
EAN / UPC: 6971690792305
Also known as: Cudy WU1800 network card WLAN 1201 Mbit/s

Specifications

28 specifications in 7 groups

Ports & interfaces

Specification	Value
Connectivity technology	Wireless
Host interface	USB
Interface	WLAN
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)

Network

Specification	Value
Maximum data transfer rate	1201 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Top Wi-Fi standard	Wi-Fi 6 (802.11ax)
Wi-Fi standards	Wi-Fi 6 (802.11ax)
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK, WPA3

Design

Specification	Value
Internal	No
Component for	PC/Laptop
Product colour	Black
Antenna	Yes
Antenna design	Internal
Antenna type	2x2
Tx power (max)	18 dBmW

System requirements

Specification	Value
Windows operating systems supported	Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1, Windows Vista, Windows XP
Mac operating systems supported	MacOS

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	79 mm
Depth	30 mm
Height	10 mm

Packaging content

Specification	Value
Quick installation guide	Yes
