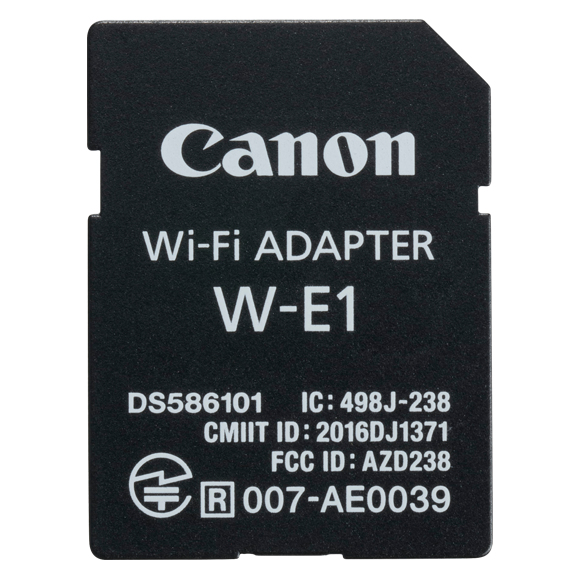

Canon W-E1 Internal WLAN

W-E1 Internal WLAN

Model W-E1Part no. 1716C006

20 specifications

SpeedWi-Fi 4 (802.11n)
ConnectivityWireless
Weight2 g
ColourBlack
Wi-FiYes
Operating temperature (T-T)0 - 40 °C

See all specifications

Overview

Speed: Wi-Fi 4 (802.11n)
Connectivity: Wireless
Weight: 2 g
Colour: Black
Wi-Fi: Yes
Operating temperature (T-T): 0 - 40 °C

Brand: Canon
Category: Network Card
Model: W-E1
Part number: 1716C006
Also known as: Canon W-E1 Internal WLAN

Specifications

20 specifications in 7 groups

Ports & interfaces

Specification	Value
Connectivity technology	Wireless
Host interface	Secure Digital (SD)
Interface	WLAN

Network

Specification	Value
Networking standards	IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Top Wi-Fi standard	Wi-Fi 4 (802.11n)
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	AES, TKIP, WEP, WPS-PIN

Design

Specification	Value
Internal	Yes
Product colour	Black
Certification	CE, EAC, FCC, ICC

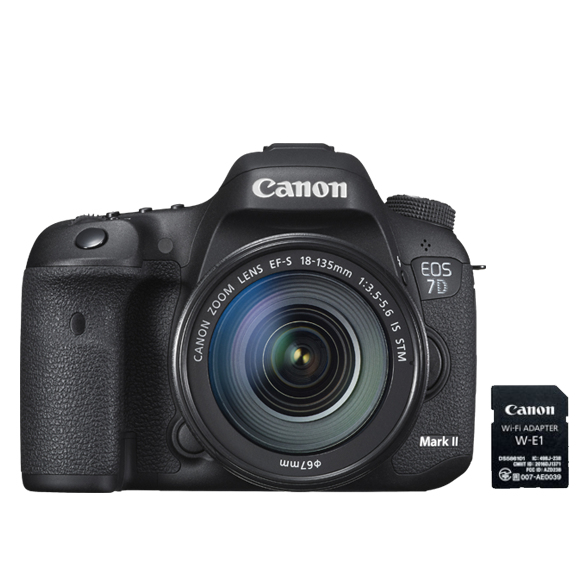

Compatible products	Canon EOS 7D Mark II, EOS 5DS R, EOS 5DS

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	0 - 85%

Weight & dimensions

Specification	Value
Width	24 mm
Depth	32 mm
Height	2.1 mm
Weight	2 g

Packaging data

Specification	Value
Quantity per pack	1 pc(s)

Packaging content

Specification	Value
Manual	Yes
