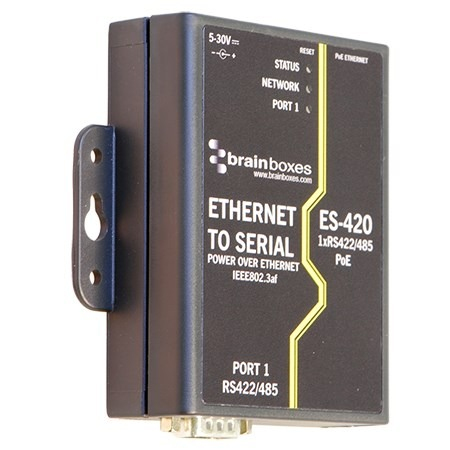

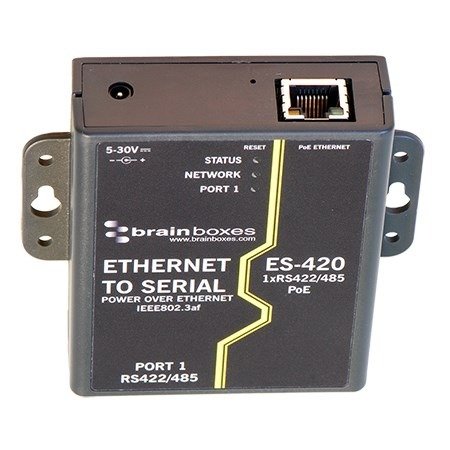

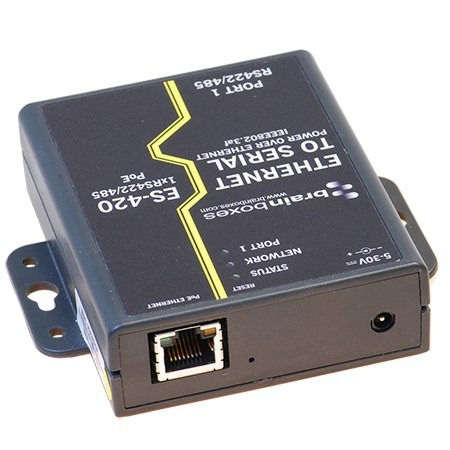

Brainboxes ES-420 1 Port RS422/485 PoE Ethernet to Serial Adapter

Brainboxes ES-420 1 Port RS422/485 PoE Ethernet to Serial Adapter

Model ES-420 1 Port RS422/485 PoE Ethernet to Serial AdapterPart no. ES-420EAN 837324003734

34 specifications
  • ConnectivityWired
  • Weight121 g
  • ColourBlack, White
  • Networking standardsIEEE 802.3af
  • InternalNo
  • Power consumption (typical)1.74 W
See all specifications

Overview

Connectivity
Wired
Weight
121 g
Colour
Black, White
Networking standards
IEEE 802.3af
Internal
No
Power consumption (typical)
1.74 W
Brand
Brainboxes
Category
Network Card
Model
ES-420 1 Port RS422/485 PoE Ethernet to Serial Adapter
Part number
ES-420
EAN / UPC
837324003734, 8716065328592
Also known as
Brainboxes ES-420 1 Port RS422/485 PoE Ethernet to Serial Adapter

Specifications

34 specifications in 10 groups

Ports & interfaces

Connectivity technologyWired
InterfaceEthernet
Ethernet LAN (RJ-45) ports1

Network

Networking standardsIEEE 802.3af
Ethernet LANYes
Ethernet interface typeFast Ethernet
Ethernet LAN data rates10,100 Mbit/s
Cabling technology10/100Base-T(X)
Supported network protocolsICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, HTTP, RFC2217

Design

InternalNo
Product colourBlack, White
LED indicatorsYes
Country of originUnited Kingdom
CertificationAEO, C-TPAT, Microsoft Certified Gold Partner, WEEE, EMC: CE TAA

Power

Power consumption (typical)1.74 W

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home B
Server operating systems supportedWindows Server 2008, Windows Server 2008 x64, Windows Server 2012

Operational conditions

Operating temperature (T-T)-10 - 60 °C
Operating relative humidity (H-H)5 - 95%

Weight & dimensions

Width100 mm
Depth101 mm
Height27 mm
Weight121 g

Packaging data

Package width135 mm
Package depth160 mm
Package height49 mm
Package weight234 g

Technical details

Compliance certificatesRoHS, CE, Federal Communications Commission (FCC), UKCA, UL
International Protection (IP) codeIP30

Other features

Flow control supportYes
Data transfer rate1 Mbit/s
Dimensions (WxDxH)101 x 97 x 27 mm
Export Control Classification Number (ECCN)5A991.b
Package length13.5 cm
