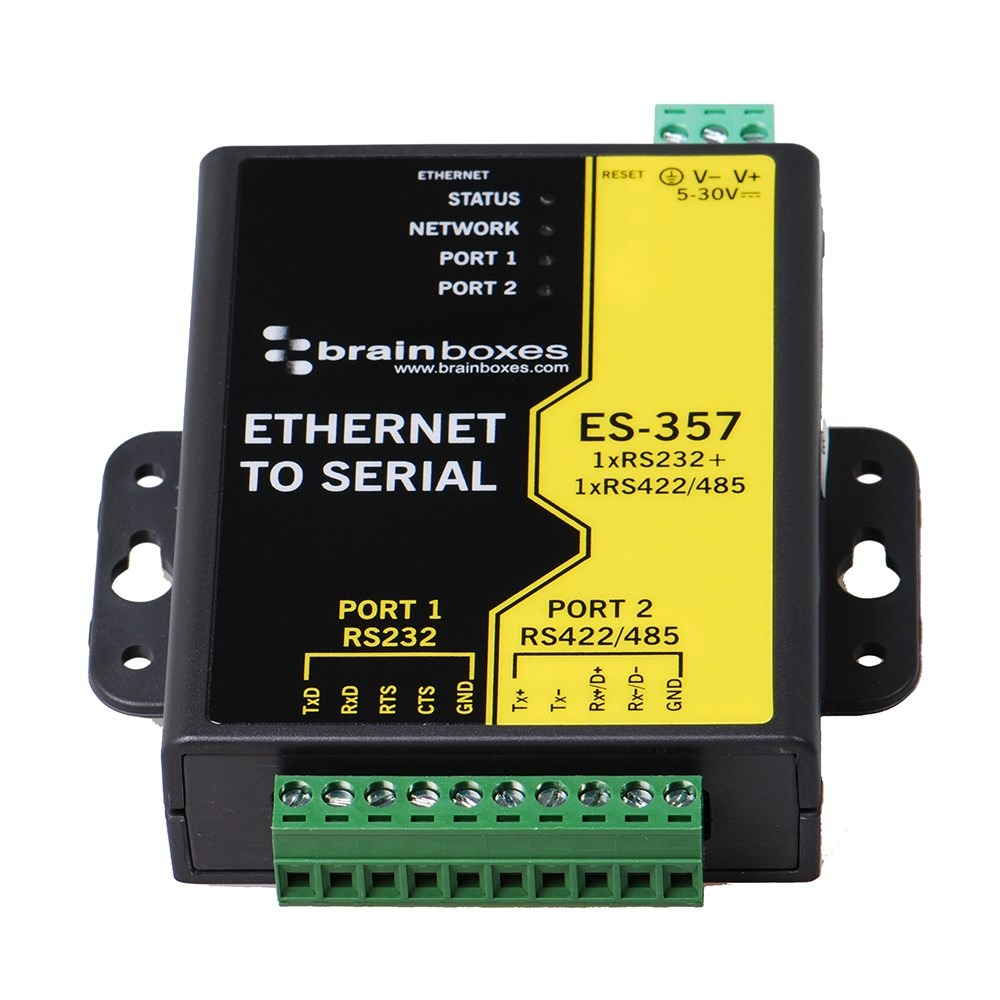

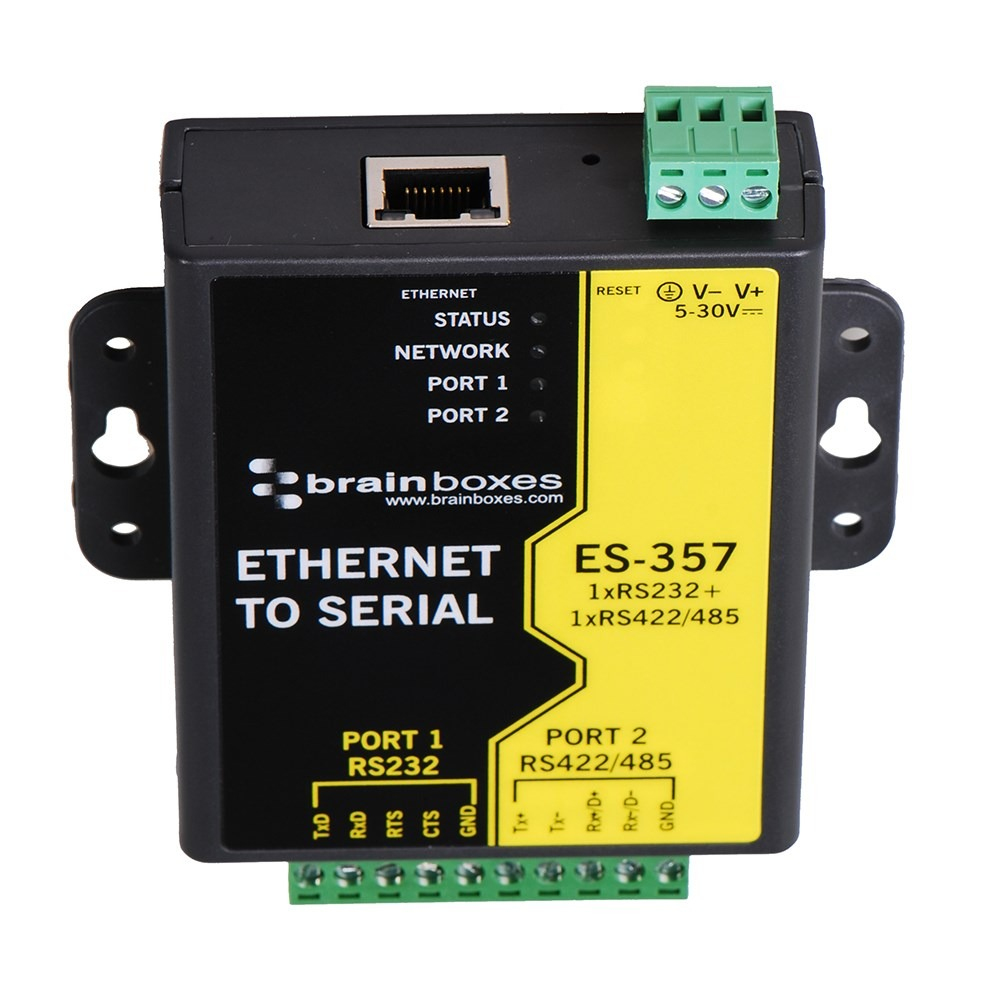

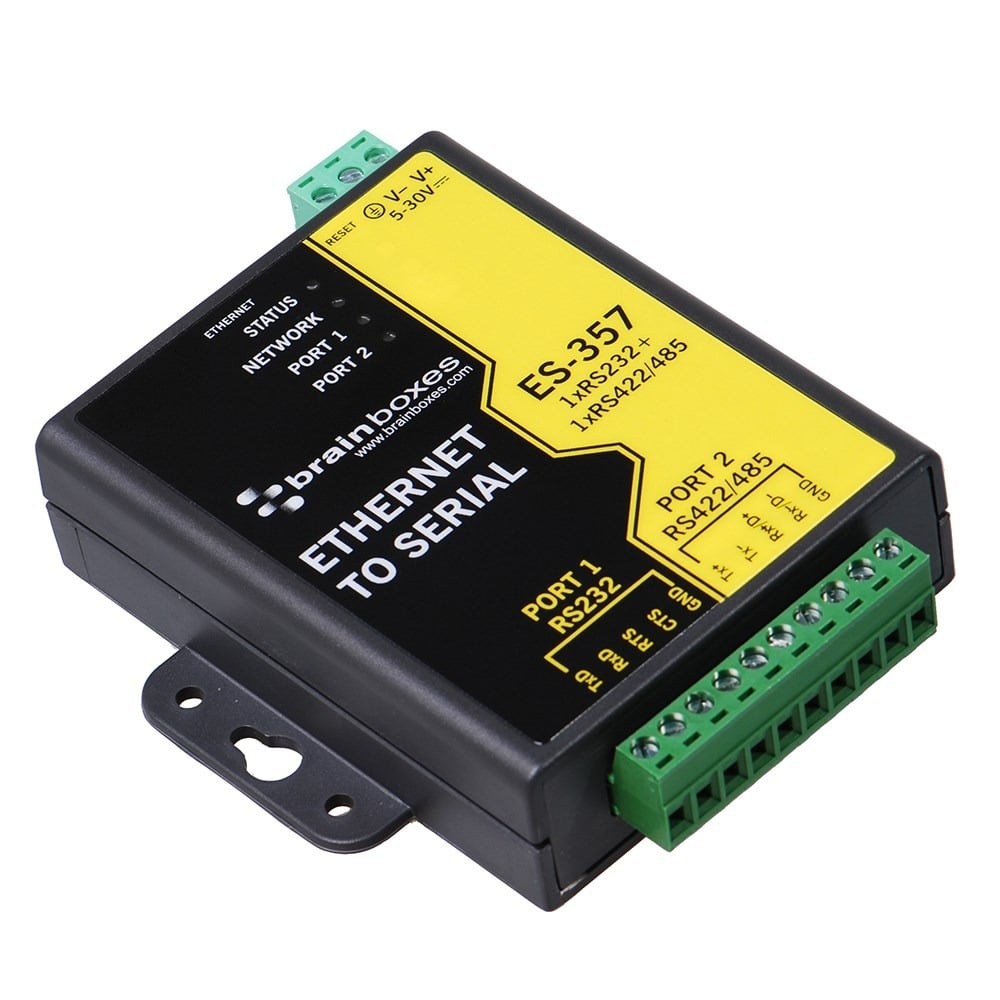

Brainboxes ES-357 1 Port RS232 and 1 Port RS422/485 Ethernet to Serial Adapter

Brainboxes ES-357 1 Port RS232 and 1 Port RS422/485 Ethernet to Serial Adapter

Model ES-357 1 Port RS232 and 1 Port RS422/485 Ethernet to Serial AdapterPart no. ES-357EAN 8373240023170

28 specifications
  • Speed1 Mbit/s
  • ConnectivityWired
  • Weight128 g
  • ColourBlack, Yellow
  • InternalNo
  • Power consumption (typical)1 W
See all specifications

Overview

Speed
1 Mbit/s
Connectivity
Wired
Weight
128 g
Colour
Black, Yellow
Internal
No
Power consumption (typical)
1 W
Brand
Brainboxes
Category
Network Card
Model
ES-357 1 Port RS232 and 1 Port RS422/485 Ethernet to Serial Adapter
Part number
ES-357
EAN / UPC
8373240023170, 837324002317, 5053485440613, 8716065295405 +1 more
Also known as
Brainboxes ES-357 1 Port RS232 and 1 Port RS422/485 Ethernet to Serial Adapter

Specifications

28 specifications in 11 groups

Ports & interfaces

Connectivity technologyWired
InterfaceEthernet

Network

Maximum data transfer rate1 Mbit/s
Ethernet LANYes
Supported network protocolsICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, HTTP, RFC2297

Design

InternalNo
Product colourBlack, Yellow
LED indicatorsYes
CertificationCE/FCC, ROHS, WEEE

Power

Power consumption (typical)1 W

System requirements

Windows operating systems supportedWindows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 IOT Core, Windows 10 Pro, Windows 10 Pro x64, Windows 2000, Windows 2000 Professional, Windows 7, Windows 7 Enterprise, Windows 7 Enterprise
Mac operating systems supportedYes
Linux operating systems supportedYes
Server operating systems supportedWindows Server 2008, Windows Server 2008 x64

Operational conditions

Operating temperature (T-T)0 - 55 °C
Storage temperature (T-T)-20 - 85 °C

Weight & dimensions

Width100 mm
Depth116 mm
Height26 mm
Weight128 g

Packaging data

Package width135 mm
Package depth160 mm
Package height49 mm
Package weight253 g

Technical details

Compliance certificatesFederal Communications Commission (FCC), UKCA

Logistics data

Harmonized System (HS) code851762

Other features

Flow control supportYes
Export Control Classification Number (ECCN)5A991.b
