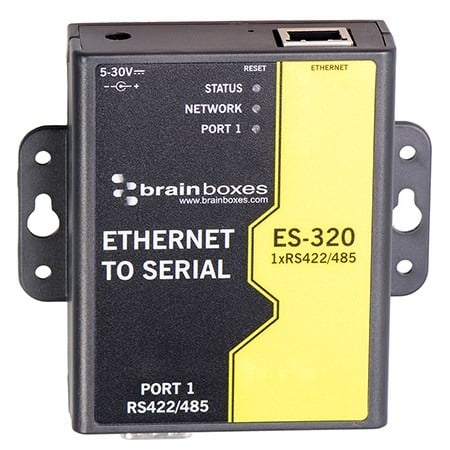

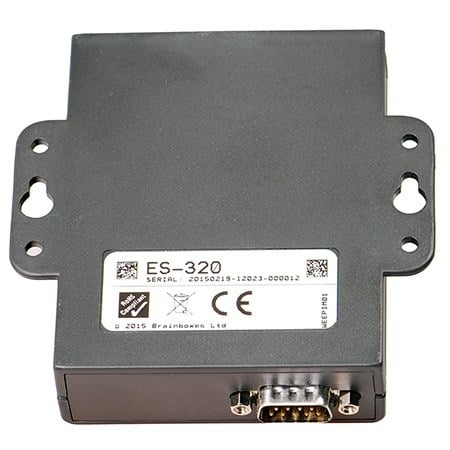

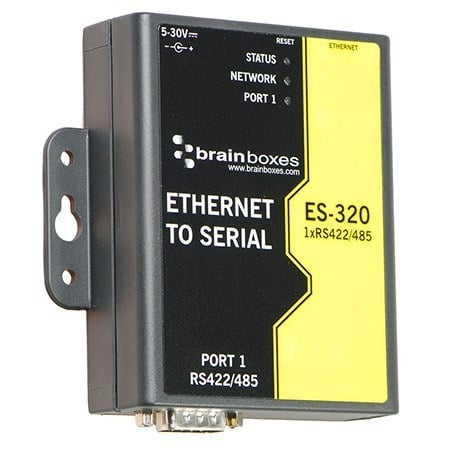

Brainboxes ES-320 1 Port RS422/485 Ethernet to Serial Adapter

Brainboxes ES-320 1 Port RS422/485 Ethernet to Serial Adapter

Model ES-320 1 Port RS422/485 Ethernet to Serial AdapterPart no. ES-320EAN 8373240023002

37 specifications
  • Speed100 Mbit/s
  • ConnectivityWired
  • Weight121 g
  • ColourBlack, Yellow
  • InternalYes
  • Power consumption (typical)0.77 W
See all specifications

Overview

Speed
100 Mbit/s
Connectivity
Wired
Weight
121 g
Colour
Black, Yellow
Internal
Yes
Power consumption (typical)
0.77 W
Brand
Brainboxes
Category
Network Card
Model
ES-320 1 Port RS422/485 Ethernet to Serial Adapter
Part number
ES-320
EAN / UPC
8373240023002, 837324002300, 5052179904509, 8716065295030 +1 more
Also known as
Brainboxes ES-320 1 Port RS422/485 Ethernet to Serial Adapter

Specifications

37 specifications in 11 groups

Ports & interfaces

Connectivity technologyWired
InterfaceEthernet
Ethernet LAN (RJ-45) ports1

Network

Maximum data transfer rate100 Mbit/s
Ethernet LANYes
Supported network protocolsICMP, IP, TCP, UDP, DHCP, BOOTP, Telnet, HTTP, RFC2217

Design

InternalYes
Component forPC/Laptop
Product colourBlack, Yellow
Plug and PlayYes
Country of originUnited Kingdom
CertificationMicrosoft Certified Gold Partner, CE, ROHS, WEEE, TAA

Power

Power consumption (typical)0.77 W

System requirements

Windows operating systems supportedWindows 10, Windows 7, Windows 7 x64, Windows XP, Windows Vista x64, Windows Vista, Windows 2000
Server operating systems supportedWindows Server 2008, Windows Server 2008 x64

Operational conditions

Operating temperature (T-T)-10 - 60 °C
Storage temperature (T-T)-20 - 85 °C

Weight & dimensions

Width105 mm
Depth106 mm
Height28 mm
Weight121 g

Packaging data

Package width135 mm
Package depth200 mm
Package height80 mm
Package weight457 g

Technical details

Compliance certificatesCE, Federal Communications Commission (FCC), UKCA, UL

Logistics data

Harmonized System (HS) code851762

Other features

Flow control supportYes
Dimensions (WxDxH)102 x 102 x 26 mm
Export Control Classification Number (ECCN)5A991.b
Link/Act LEDYes
Package dimensions (WxDxH)170 x 240 x 60 mm
Package length24 cm
Ports quantity1
Power supply typeDC
Supported data transfer rates10/100 Mbps
Non-operating relative humidity (non-condensing)5 - 95%
