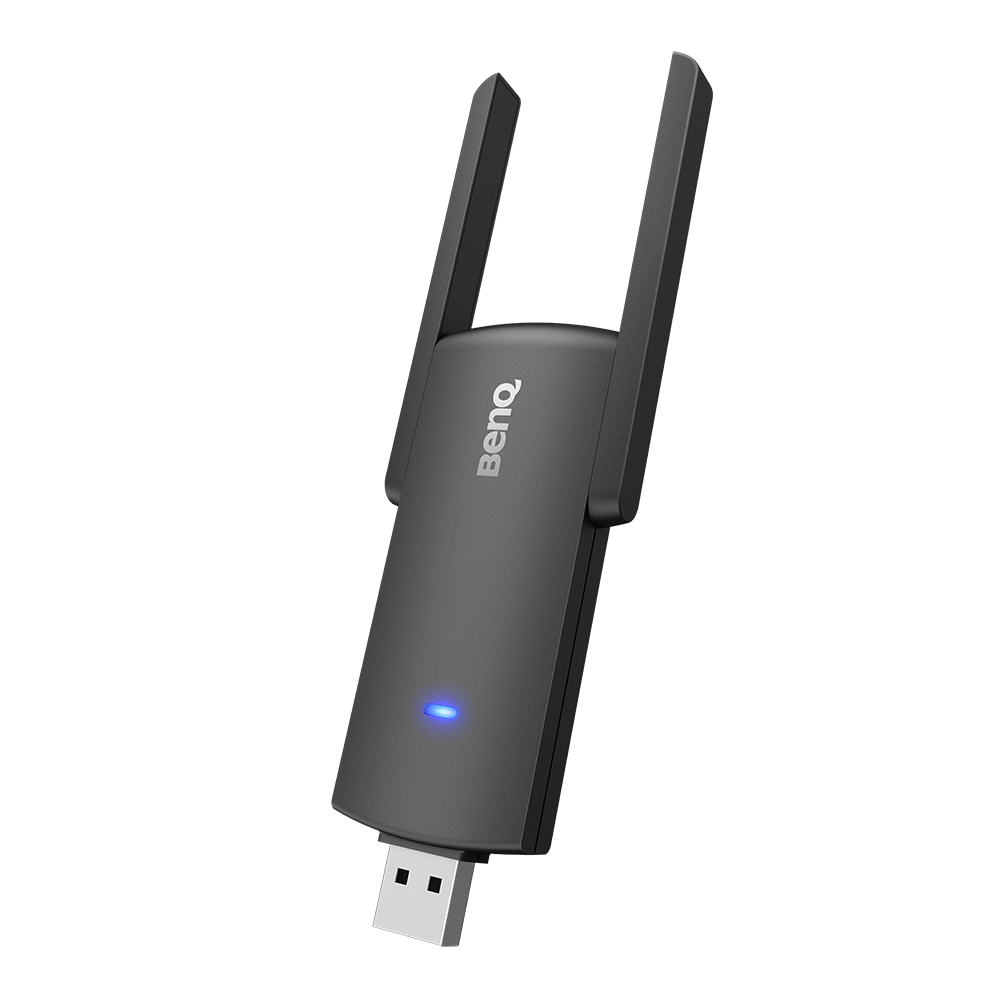

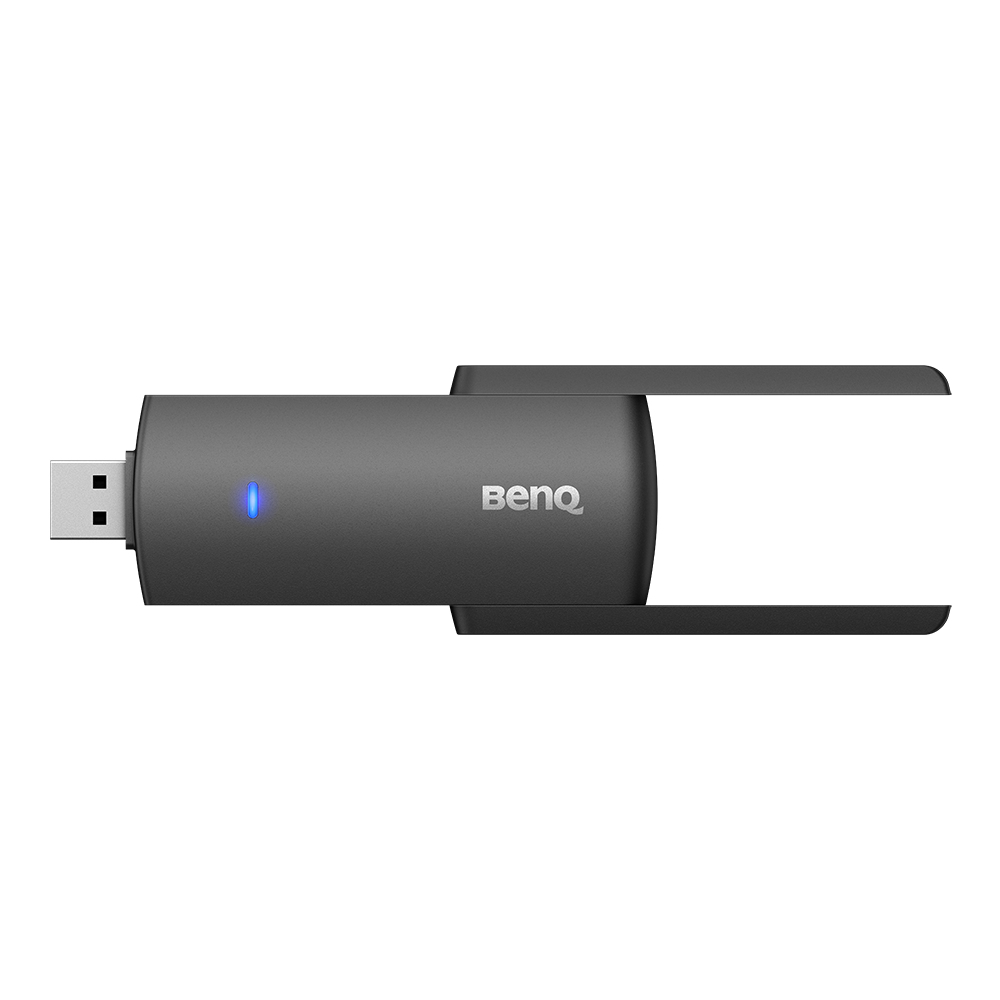

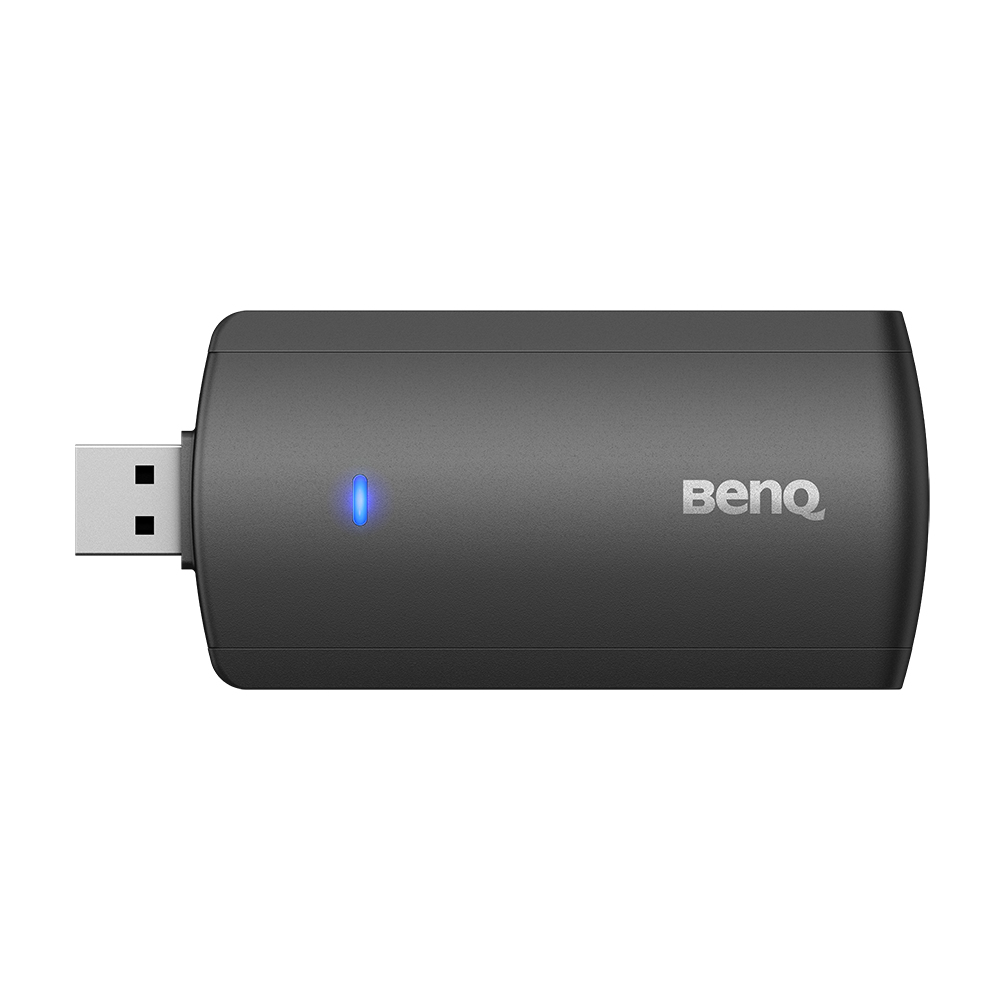

BenQ TDY31 WLAN 867 Mbit/s

TDY31 WLAN 867 Mbit/s

Model TDY31Part no. 5A.F7W28.DP1EAN 840046046118

23 specifications

Speed867 Mbit/s
ConnectivityWireless
InternalNo
Power consumption (typical)4.5 W
Security updates end date10/02/2025
Operating temperature (T-T)0 - 40 °C

See all specifications

Overview

Speed: 867 Mbit/s
Connectivity: Wireless
Internal: No
Power consumption (typical): 4.5 W
Security updates end date: 10/02/2025
Operating temperature (T-T): 0 - 40 °C

Brand: BenQ
Category: Network Card
Model: TDY31
Part number: 5A.F7W28.DP1
EAN / UPC: 840046046118, 3540260194073, 4718755087486, 5054444466156
Also known as: BenQ TDY31 WLAN 867 Mbit/s

Specifications

23 specifications in 8 groups

Ports & interfaces

Specification	Value
Connectivity technology	Wireless
Host interface	USB
Interface	WLAN

Network

Specification	Value
Maximum data transfer rate	867 Mbit/s
Networking standards	IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi band	Dual-band (2.4 GHz / 5 GHz)
Security algorithms	WEP, WPA, WPA-PSK, WPA2, WPA2-PSK

Design

Specification	Value
Internal	No
Component for	Interactive whiteboard
Antenna	Yes
Antenna design	External

Power

Specification	Value
Power consumption (typical)	4.5 W
USB powered	Yes

System requirements

Specification	Value
Security updates end date	10/02/2025

Operational conditions

Specification	Value
Operating temperature (T-T)	0 - 40 °C
Storage temperature (T-T)	-40 - 70 °C
Operating relative humidity (H-H)	10 - 90%
Storage relative humidity (H-H)	5 - 90%

Weight & dimensions

Specification	Value
Width	137 mm
Depth	41 mm
Height	12 mm

Logistics data

Specification	Value
Harmonized System (HS) code	85176990
