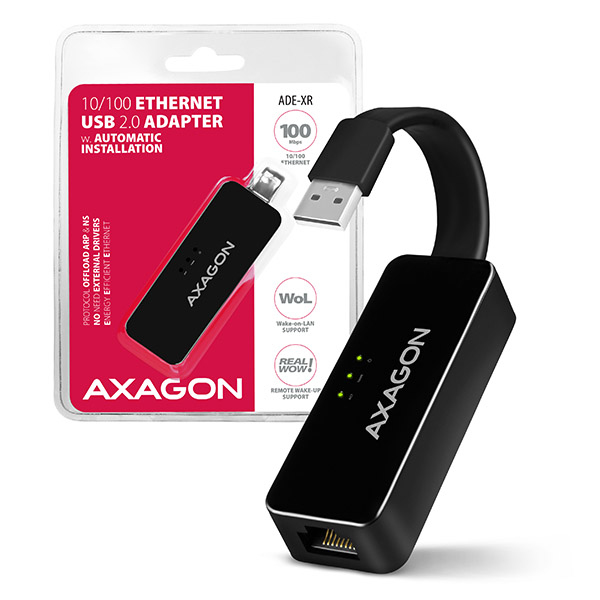

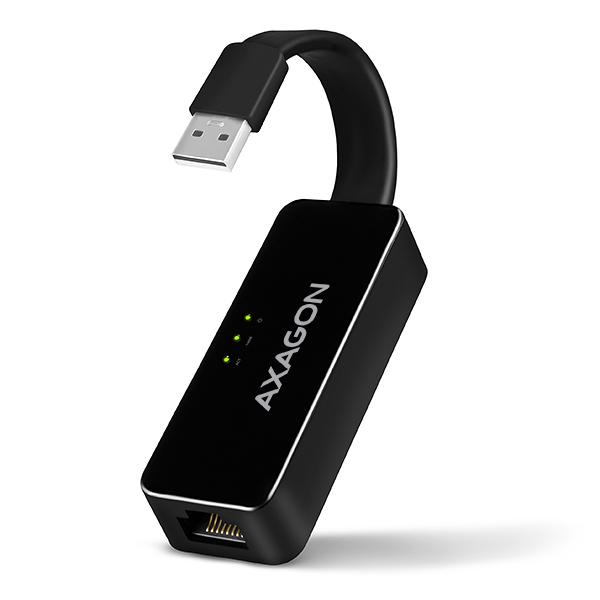

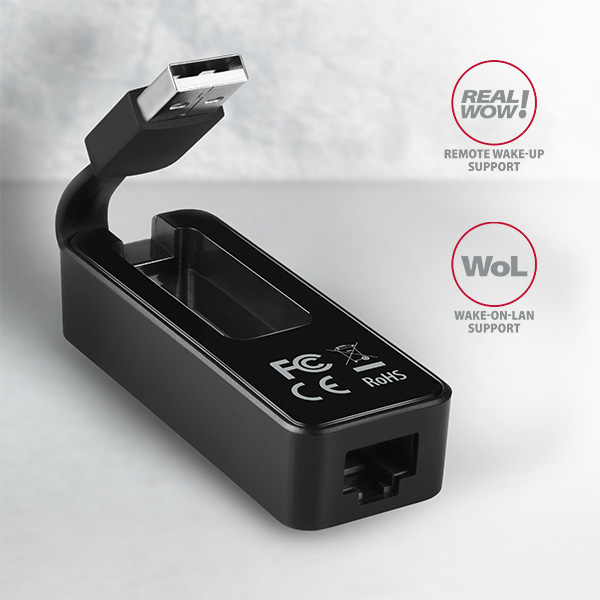

ADE-XR USB 2.0 fast ethernet
Model ADE-XREAN 8595247904430
43 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight23 g
- ColourBlack
- InternalNo
- USB poweredYes
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 23 g
- Colour
- Black
- Internal
- No
- USB powered
- Yes
- Brand
- Axagon
- Category
- Network Card
- Model
- ADE-XR
- Part number
- ADE-XR
- EAN / UPC
- 8595247904430
- Also known as
- Axagon ADE-XR USB 2.0 fast ethernet
Specifications
43 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB |
| Interface | Ethernet |

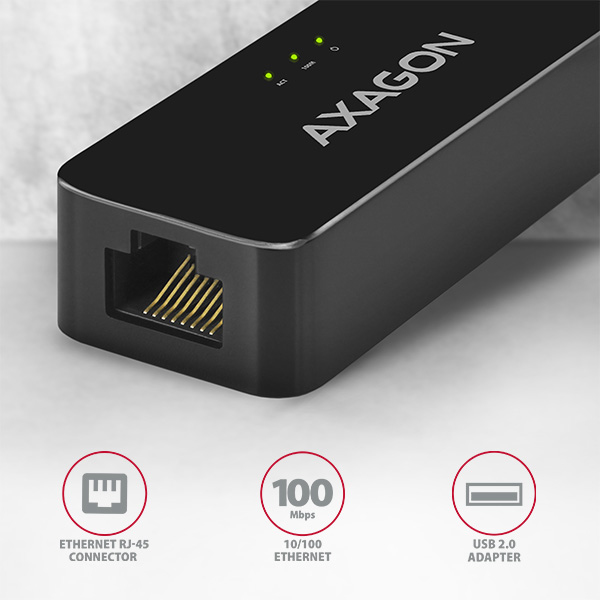

| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100BaseT(X) |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| VLAN support | Yes |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC/Laptop |
| Product colour | Black |
| Chipset | Realtek RTL8152 |
| Plug and Play | Yes |

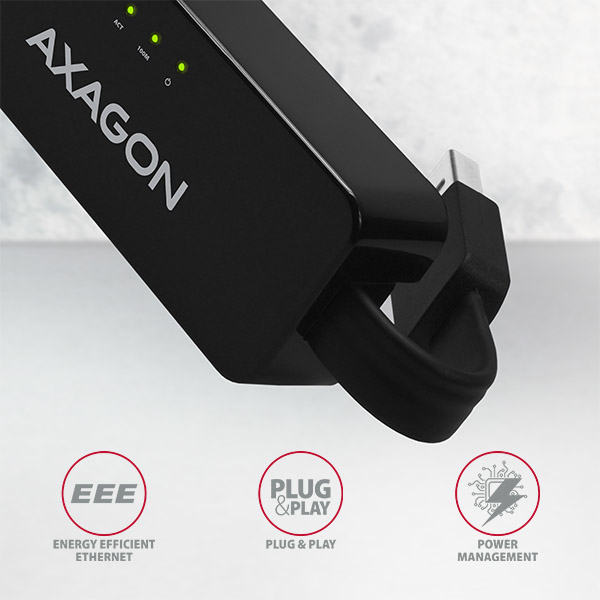

| LED indicators | Yes |
| Country of origin | China |
| Certification | CE, RoHS |
Power
| Specification | Value |
|---|---|

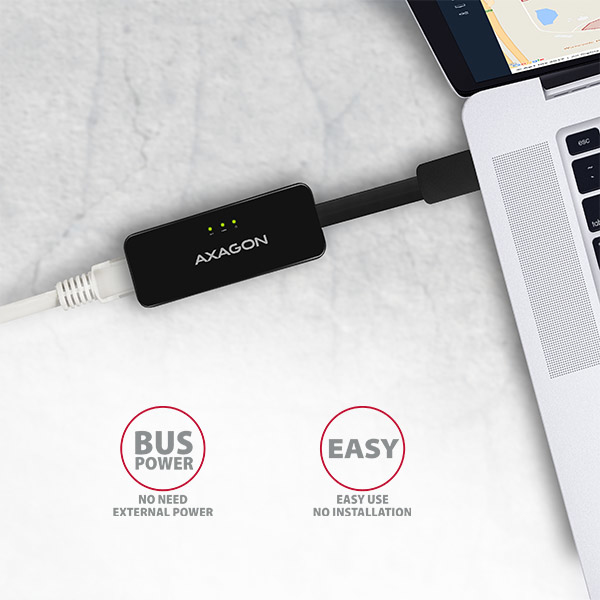

| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Compatible operating systems | MS Windows XP / Vista / 7 / 8 / 8.1 / 10 and later, Windows Server 2003 / 2008 / 2012 / 2016 and later (supported are all 32- and 64-bit versions of OS Windows), Mac OS X 10.6 and higher, Linux kernel 2.6.x and above, Android most versions. |
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 72 mm |
| Depth | 16.5 mm |
| Height | 27 mm |
| Weight | 23 g |

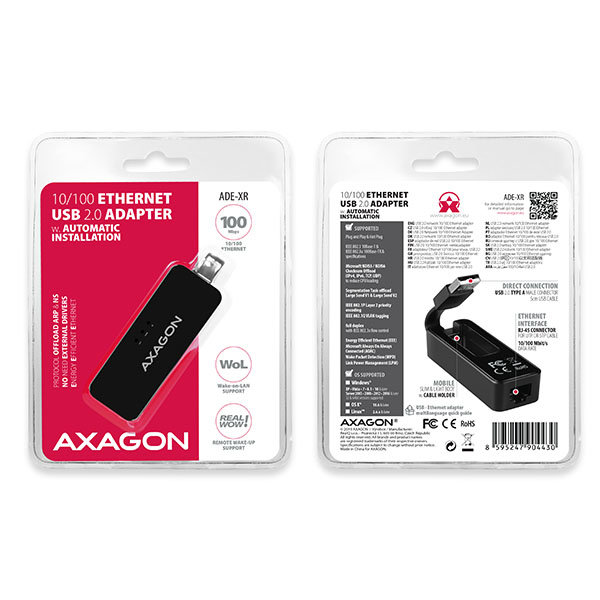

Packaging data
| Specification | Value |
|---|---|
| Package width | 120 mm |
| Package depth | 72 mm |
| Package height | 24 mm |
| Package weight | 44 g |

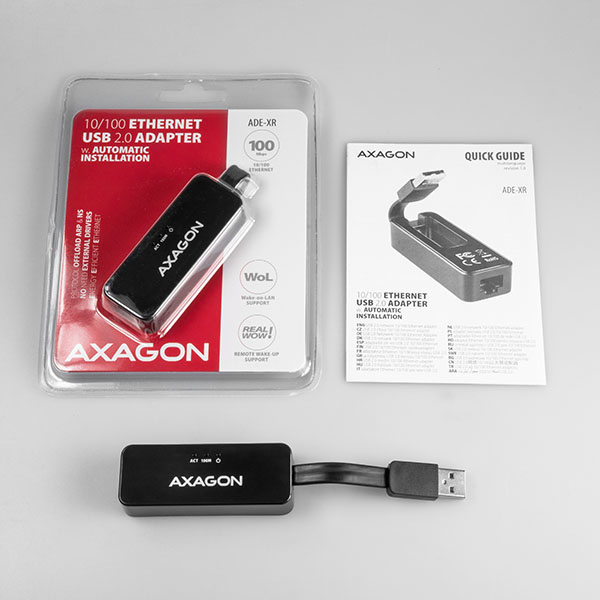

Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, CE |
| Warranty period | 3 year(s) |
Other features
| Specification | Value |
|---|---|
| Housing material | Plastic |
| Cable length | 0.05 m |
| Data transfer rate | 0.1 Gbit/s |
