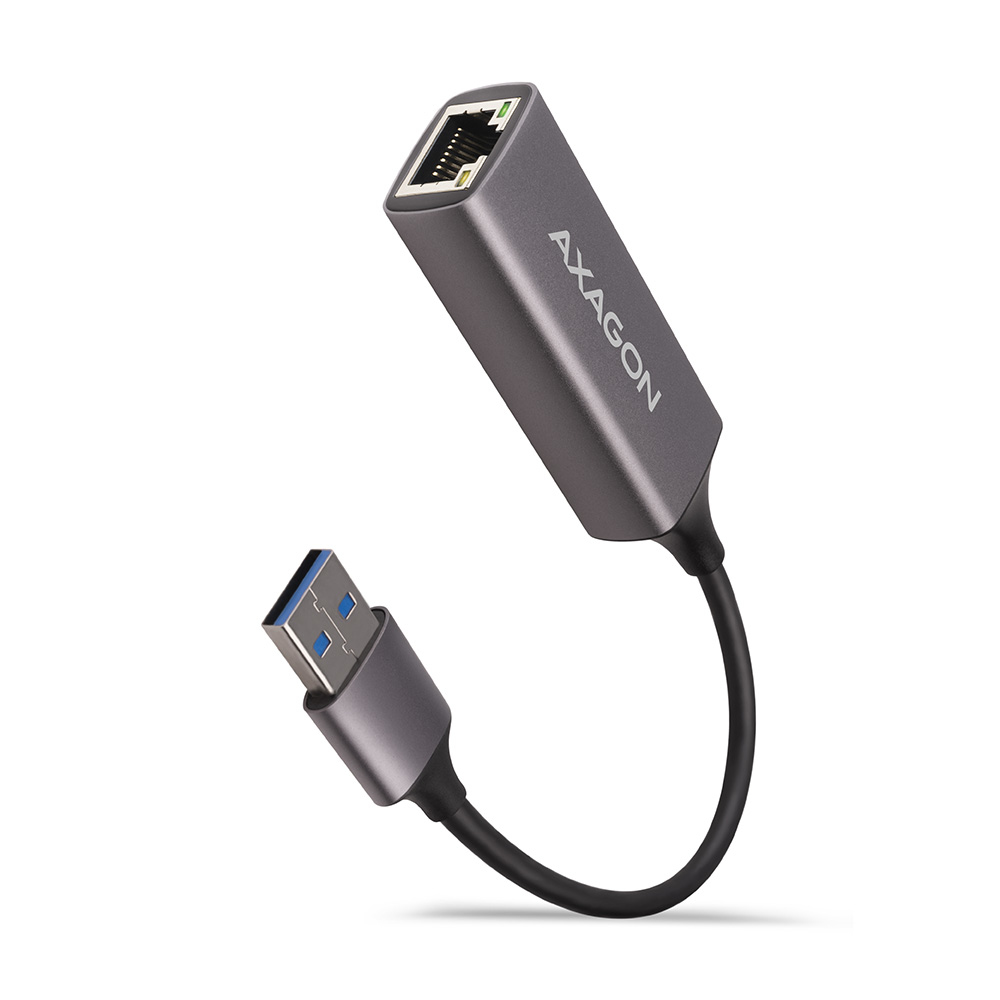

ADE-TR SuperSpeed USB gigabit ethernet adapter
Model ADE-TREAN 8595247905567
41 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight28 g
- ColourGrey
- InternalNo
- USB poweredYes
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 28 g
- Colour
- Grey
- Internal
- No
- USB powered
- Yes
- Brand
- Axagon
- Category
- Network Card
- Model
- ADE-TR
- Part number
- ADE-TR
- EAN / UPC
- 8595247905567
- Also known as
- Axagon ADE-TR SuperSpeed USB gigabit ethernet adapter
Specifications
41 specifications in 9 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| VLAN support | Yes |
| LAN controller | Realtek RTL8153 |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC/Laptop |
| Product colour | Grey |
| Chipset | Realtek RTL8153 |
| Plug and Play | Yes |
| LED indicators | Yes |
| Country of origin | China |
| Certification | CE, RoHS |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10, Windows 10 x64, Windows 7, Windows 7 x64, Windows 8, Windows 8 x64, Windows 8.1, Windows 8.1 x64, Windows Vista, Windows Vista x64, Windows XP |
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey, Mac OS X 13.0 Ventura |
| Linux operating systems supported | Kernel 2.6.31, Kernel 2.6.33 |
| Other operating systems supported | Android |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 x64, Windows Server 2016, Windows Server 2016 x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 24 mm |
| Depth | 16 mm |
| Height | 59 mm |
| Weight | 28 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 100 mm |
| Package depth | 28 mm |
| Package height | 203 mm |
| Package weight | 66 g |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, CE |
| Warranty period | 3 year(s) |
