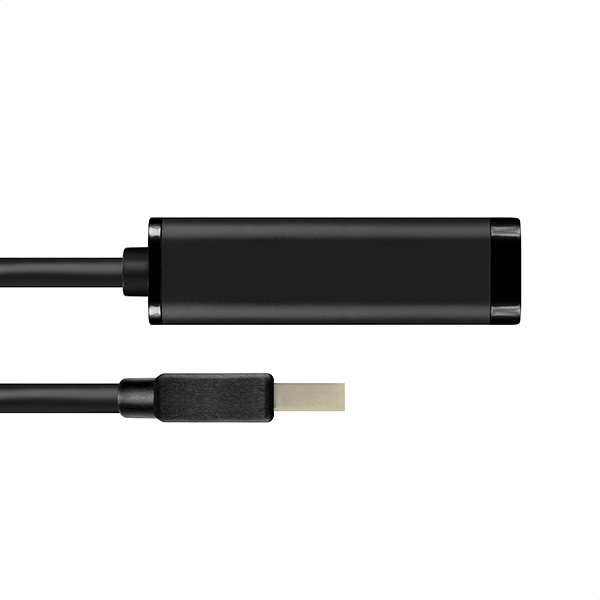

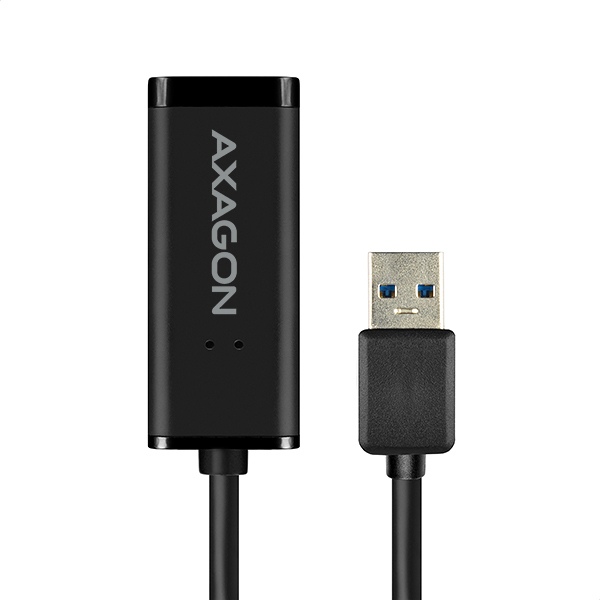

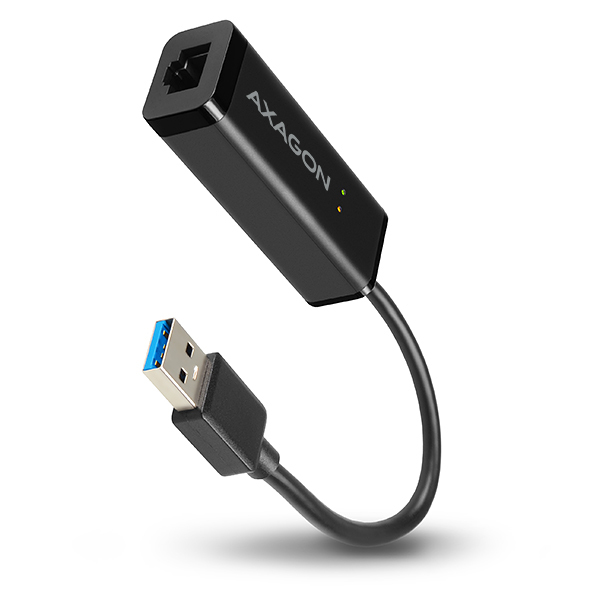

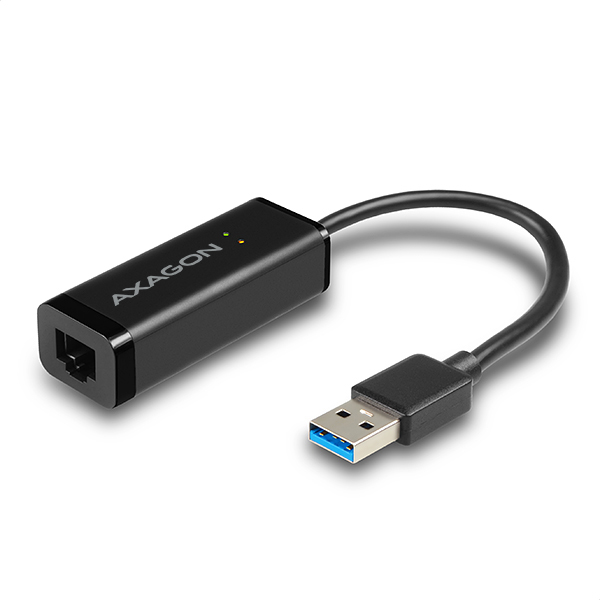

ADE-SR USB-A gigabit ethernet adapter
Model ADE-SREAN 8595247903778
42 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight23 g
- ColourBlack
- InternalNo
- USB poweredYes
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 23 g
- Colour
- Black
- Internal
- No
- USB powered
- Yes
- Brand
- Axagon
- Category
- Network Card
- Model
- ADE-SR
- Part number
- ADE-SR
- EAN / UPC
- 8595247903778
- Also known as
- Axagon ADE-SR USB-A gigabit ethernet adapter
Specifications
42 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | USB |
| Interface | Ethernet |

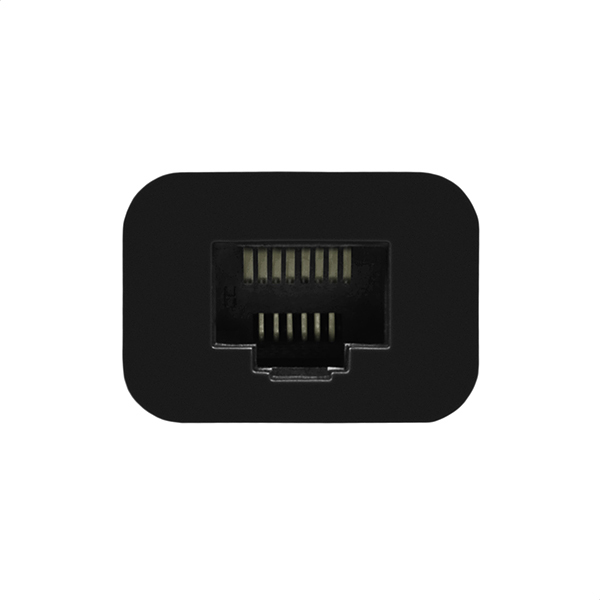

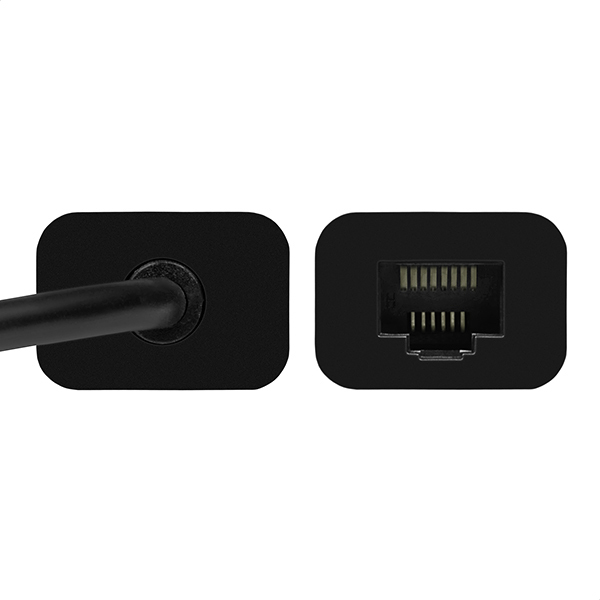

| Ethernet LAN (RJ-45) ports | 1 |
| USB version | 2.0/3.2 Gen 1 (3.1 Gen 1) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| VLAN support | Yes |
| LAN controller | Realtek RTL8153 |
Design
| Specification | Value |
|---|---|
| Internal | No |
| Component for | PC/Laptop |
| Product colour | Black |
| Chipset | Realtek RTL8153 |
| Plug and Play | Yes |
| LED indicators | Yes |
| Country of origin | China |

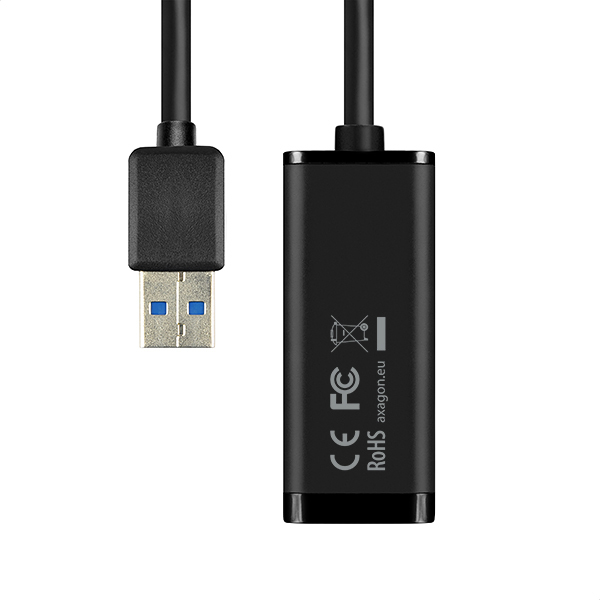

| Certification | CE, RoHS |
Power
| Specification | Value |
|---|---|
| USB powered | Yes |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Mac operating systems supported | Yes |
| Linux operating systems supported | Yes |
| Server operating systems supported | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 61 mm |
| Depth | 25 mm |
| Height | 17 mm |
| Weight | 23 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 180 mm |
| Package depth | 90 mm |
| Package height | 25 mm |
| Package weight | 55 g |

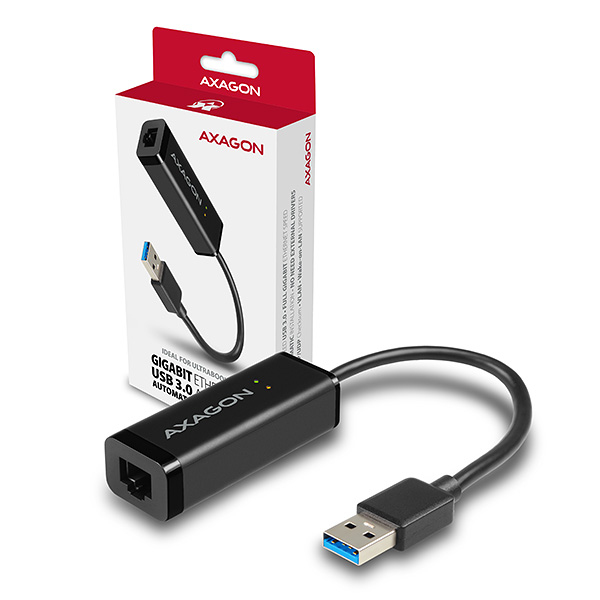

Packaging content
| Specification | Value |
|---|---|
| Cables included | USB |
| Manual | Yes |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS, CE |
| Warranty period | 3 year(s) |
Other features
| Specification | Value |
|---|---|
| Cable length | 0.15 m |
| Data transfer rate | 6 Gbit/s |
