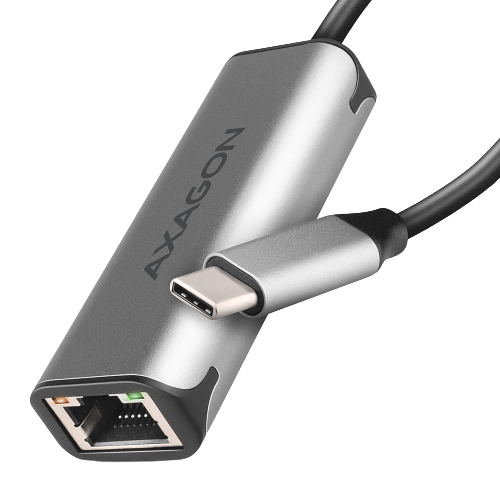

Axagon ADE-25RC SuperSpeed USB-C 2.5 gigabit ethernet adapter

ADE-25RC SuperSpeed USB-C 2.5 gigabit ethernet adapter

Model ADE-25RCEAN 8595247906618

45 specifications

Speed2500 Mbit/s
ConnectivityWired
Weight26 g
ColourGrey
InternalNo
USB poweredYes

See all specifications

Overview

Speed: 2500 Mbit/s
Connectivity: Wired
Weight: 26 g
Colour: Grey
Internal: No
USB powered: Yes

Brand: Axagon
Category: Network Card
Model: ADE-25RC
Part number: ADE-25RC
EAN / UPC: 8595247906618
Also known as: Axagon ADE-25RC SuperSpeed USB-C 2.5 gigabit ethernet adapter

Specifications

45 specifications in 10 groups

Ports & interfaces

Specification	Value
Connectivity technology	Wired
Host interface	USB Type-C
Interface	Ethernet

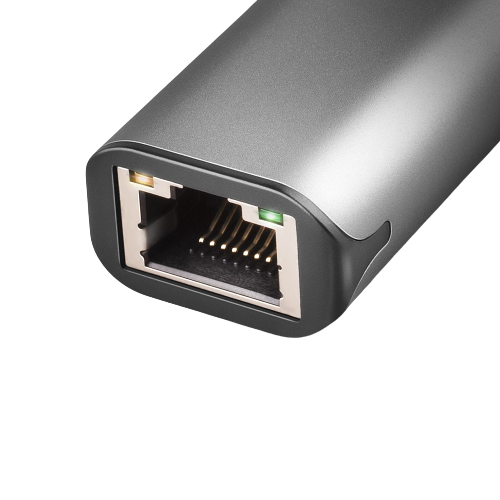

Ethernet LAN (RJ-45) ports	1
USB version	2.0/3.2 Gen 1 (3.1 Gen 1)

Network

Specification	Value
Maximum data transfer rate	2500 Mbit/s
Networking standards	IEEE 802.3, IEEE 802.3ab, IEEE 802.3u
Ethernet LAN	Yes
Ethernet interface type	Gigabit Ethernet
Ethernet LAN data rates	10,100,1000,2500 Mbit/s
Wake-on-LAN ready	Yes
Full duplex	Yes
Jumbo frames support	Yes
VLAN support	Yes

Design

Specification	Value
Internal	No
Component for	PC/Laptop
Product colour	Grey
Chipset	Realtek RTL8156B
Plug and Play	Yes
LED indicators	Yes
Country of origin	China
Certification	CE, RoHS
Compatible products	IEEE 802.3ab 1000Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3 10Base-T

Power

Specification	Value
USB powered	Yes

System requirements

Specification	Value
Windows operating systems supported	Yes
Mac operating systems supported	Yes
Linux operating systems supported	Yes
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2012, Windows Server 2016

Weight & dimensions

Specification	Value
Width	64 mm
Depth	24 mm
Height	14 mm
Weight	26 g

Packaging data

Specification	Value
Quantity per pack	1 pc(s)
Package type	Box
Package width	180 mm
Package depth	90 mm
Package height	25 mm
Package weight	58 g

Packaging content

Specification	Value
Cables included	USB Type-C
Manual	Yes

Technical details

Specification	Value
Compliance certificates	RoHS, CE
Warranty period	3 year(s)

Other features

Specification	Value
Housing material	Metal
Cable length	0.15 m
Data transfer rate	2.5 Gbit/s
