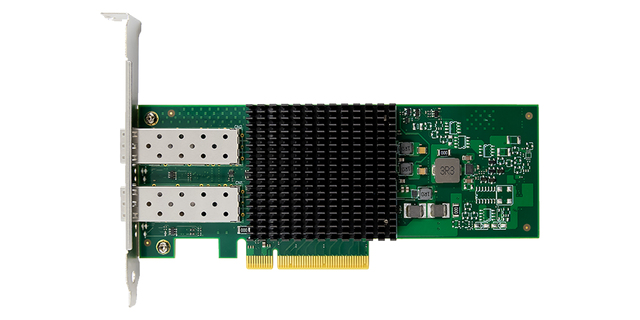

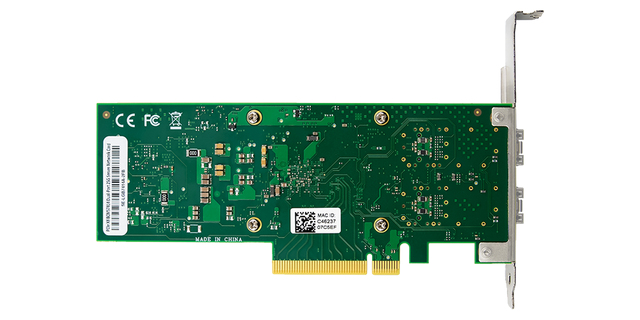

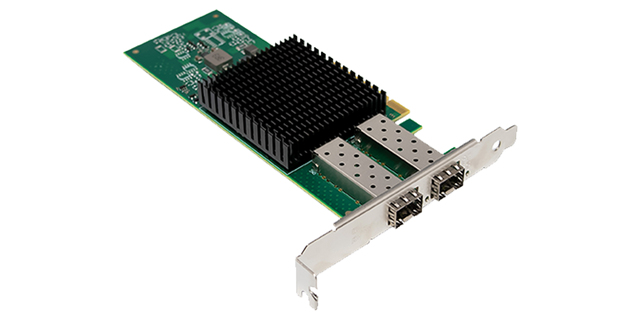

PCIEX8-SFPP-2-BCM57412-AT network card Internal Ethernet 10000 Mbit/s
Model PCIEX8-SFPP-2-BCM57412-AT
23 specifications
- Speed10000 Mbit/s
- ConnectivityWired
- ColourGreen
- InternalYes
- Operating temperature (T-T)0 - 55 °C
- Width168 mm
Overview
- Speed
- 10000 Mbit/s
- Connectivity
- Wired
- Colour
- Green
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 55 °C
- Width
- 168 mm
- Brand
- ATGBICS
- Category
- Network Card
- Model
- PCIEX8-SFPP-2-BCM57412-AT
- Part number
- PCIEX8-SFPP-2-BCM57412-AT
- Also known as
- ATGBICS PCIEX8-SFPP-2-BCM57412-AT network card Internal Ethernet 10000 Mbit/s
Specifications
23 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Fiber optic connector | SFP+ |
| Fiber ports quantity | 2 |
| PCI version | 3.0 |
| PCI Card form factor | Full-height (low-profile) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 1000,10000 Mbit/s |
| LAN controller | Broadcom BCM975412A |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC/Server |
| Product colour | Green |
| Chipset | Broadcom BCM975412A |
| Country of origin | China |
System requirements
| Specification | Value |
|---|---|
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 168 mm |
| Depth | 69 mm |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
