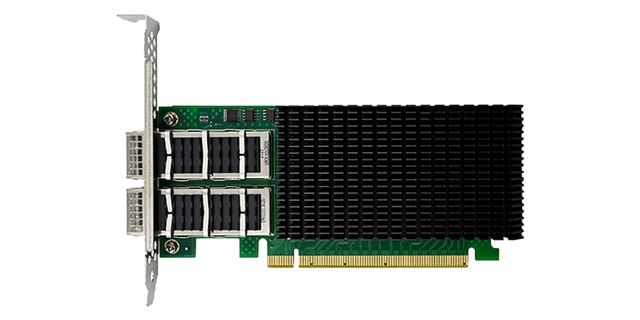

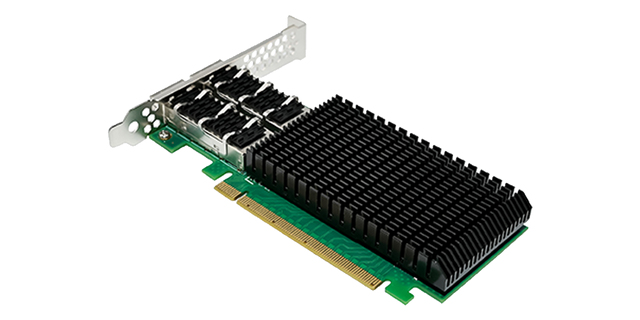

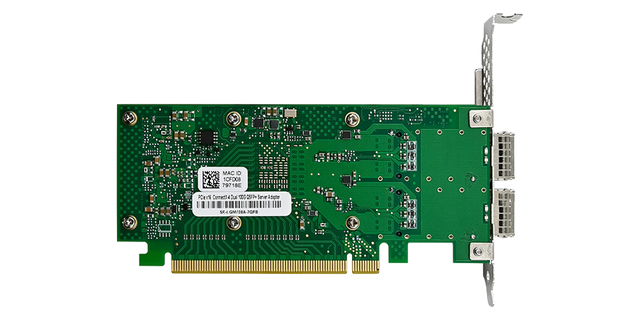

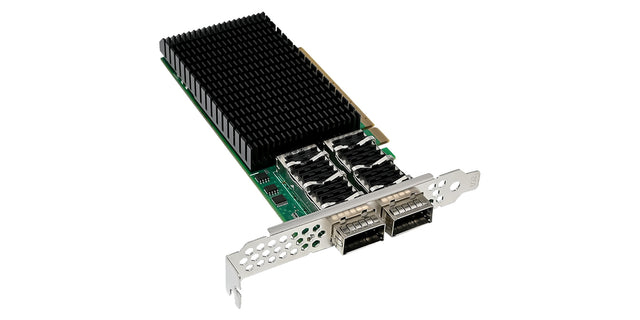

PCIEX16-Q28-2-NVX4-AT network card Internal Ethernet 100000 Mbit/s
Model PCIEX16-Q28-2-NVX4-AT
24 specifications
- Speed100000 Mbit/s
- ConnectivityWired
- ColourGreen
- InternalYes
- Operating temperature (T-T)0 - 60 °C
- Width150 mm
Overview
- Speed
- 100000 Mbit/s
- Connectivity
- Wired
- Colour
- Green
- Internal
- Yes
- Operating temperature (T-T)
- 0 - 60 °C
- Width
- 150 mm
- Brand
- ATGBICS
- Category
- Network Card
- Model
- PCIEX16-Q28-2-NVX4-AT
- Part number
- PCIEX16-Q28-2-NVX4-AT
- Also known as
- ATGBICS PCIEX16-Q28-2-NVX4-AT network card Internal Ethernet 100000 Mbit/s
Specifications
24 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Fiber optic connector | QSFP28 |
| Fiber ports quantity | 2 |
| PCI version | 3.0 |
| PCI Card form factor | Full-height (low-profile) |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100000 Mbit/s |
| Ethernet LAN | Yes |
| Ethernet interface type | 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 50 Gigabit Ethernet, 100 Gigabit Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 1000,10000,25000,40000,50000,100000 Mbit/s |
| LAN controller | NVIDIA ConnectX-4 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC/Server |
| Product colour | Green |
| Chipset | NVIDIA ConnectX-4 |
| Country of origin | China |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Yes |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -40 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 150 mm |
| Depth | 68 mm |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | CE, Federal Communications Commission (FCC), REACH, RoHS |
