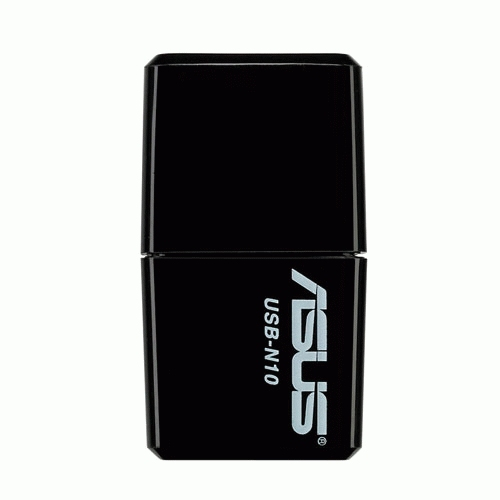

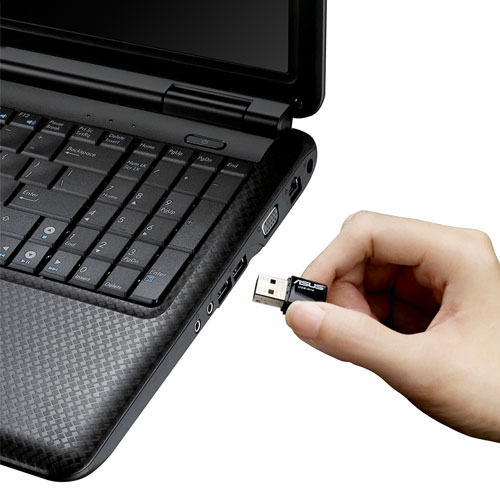

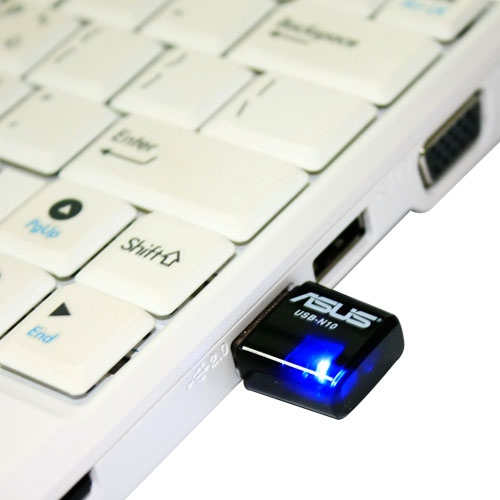

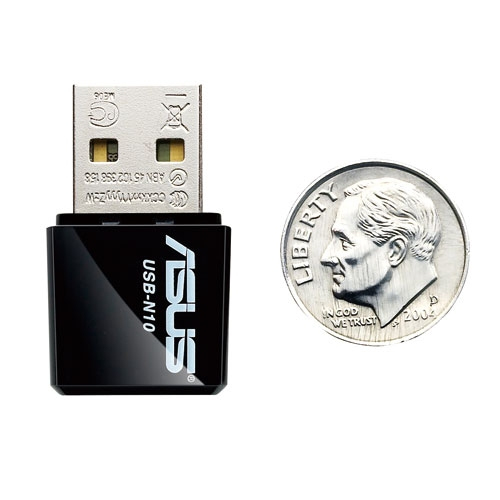

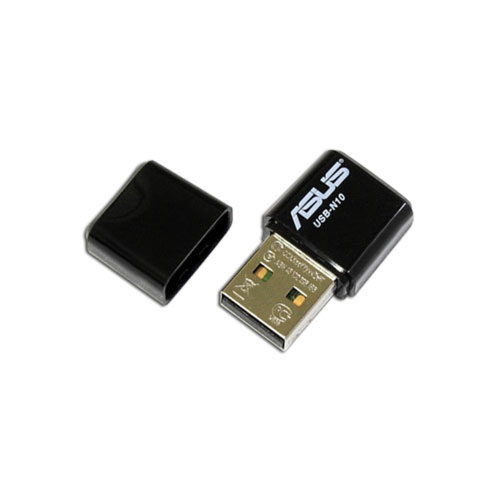

ASUS USB-N10 150 Mbit/s

ASUS USB-N10 150 Mbit/s

Model USB-N10Part no. 90-IG14002M02-0PA0EAN 5711045667473

26 specifications
  • Speed150 Mbit/s
  • ConnectivityWireless
  • Antenna typeMIFA
  • USB poweredYes
  • Operating temperature (T-T)0 - 40 °C
  • Width30 mm
See all specifications

Overview

Speed
150 Mbit/s
Connectivity
Wireless
Antenna type
MIFA
USB powered
Yes
Operating temperature (T-T)
0 - 40 °C
Width
30 mm
Brand
ASUS
Category
Network Card
Model
USB-N10
Part numbers
90-IG14002M02-0PA0, 90-IG4002M00-0PA0, 90-IG14002M00-0PA0, USB-N10
EAN / UPC
5711045667473, 4719543063477, 102930531859, 230494831921 +8 more
Also known as
ASUS USB-N10 150 Mbit/s

Specifications

26 specifications in 8 groups

Ports & interfaces

Connectivity technologyWireless
Host interfaceUSB

Network

Maximum data transfer rate150 Mbit/s
Wi-FiYes
Wi-Fi bandSingle-band (2.4 GHz)
Frequency range2.4 - 2.5 GHz
Modulation16-QAM, 64-QAM, CCK, DBPSK, DQPSK, QPSK
Security algorithmsTKIP, WPA-PSK, WPA2-PSK
Maximum operating distance150 m

Design

Antenna typeMIFA
Receiver sensitivity-84 dBm @11 Mbps; -70 dBm @54 Mbps; -67 dBm @64-QAM, 20MHz; -64 dBm @64-QAM, 40MHz
CertificationCE, FCC, IDA, IC, C-Tick, NCC, GOST

Power

USB poweredYes

System requirements

Compatible operating systems- Windows 2000/ XP(x86/x64)/ Vista(x86/x64)/ 7(x86/x64); - Mac 10.4/10.5/10.6; - Linux 2.4/ 2.6
Mac operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-10 - 70 °C
Operating relative humidity (H-H)5 - 90%

Weight & dimensions

Width30 mm
Depth17 mm
Height8.5 mm

Other features

Compliance industry standardsIEEE802.11b, IEEE802.11g, IEEE802.11n
Channels quantity13 channels
Supported data transfer rates54/48/36/24/18/12/9/6/11/5.5/2/1 Mbps
Wireless connectionYes
Output power description11b: 17+/-1 dBm, 11g: 15+/-1 dBm@54Mbps, 11n: 13+/-1 dBm (14.5dBm)
