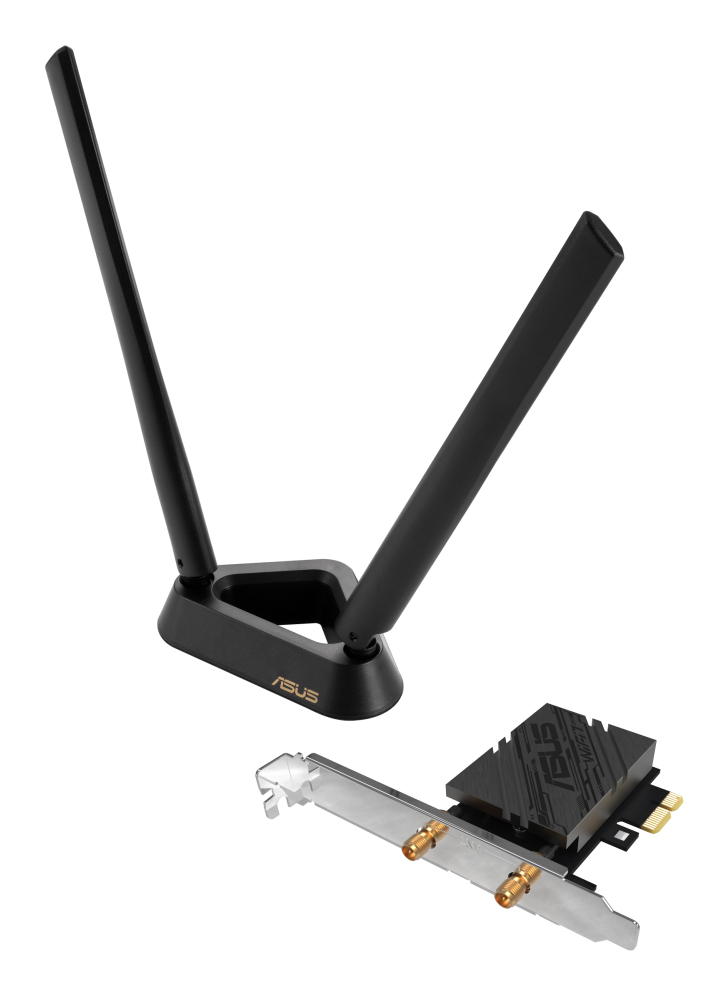

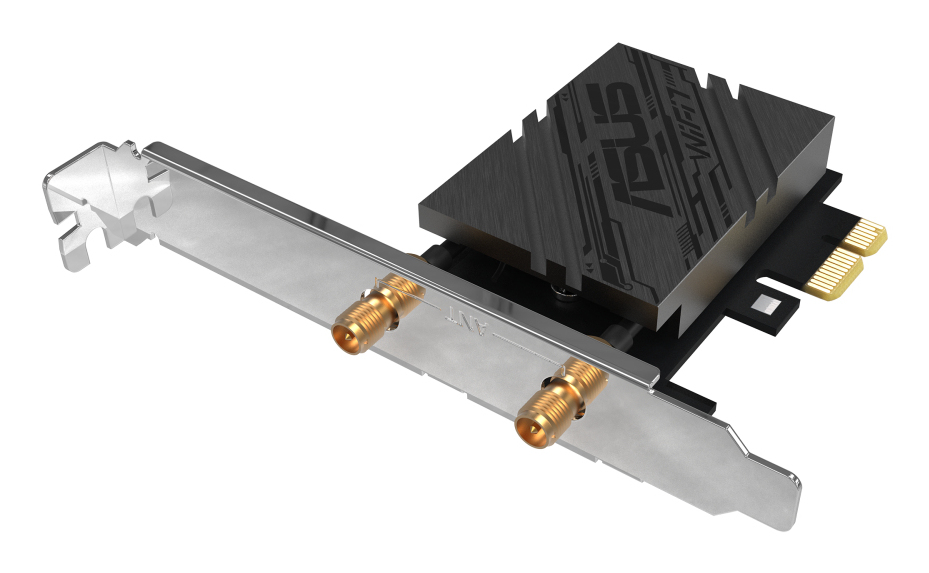

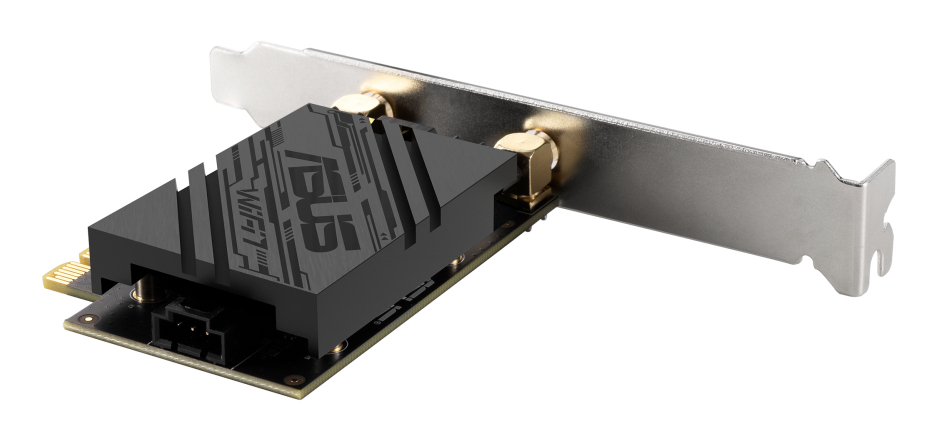

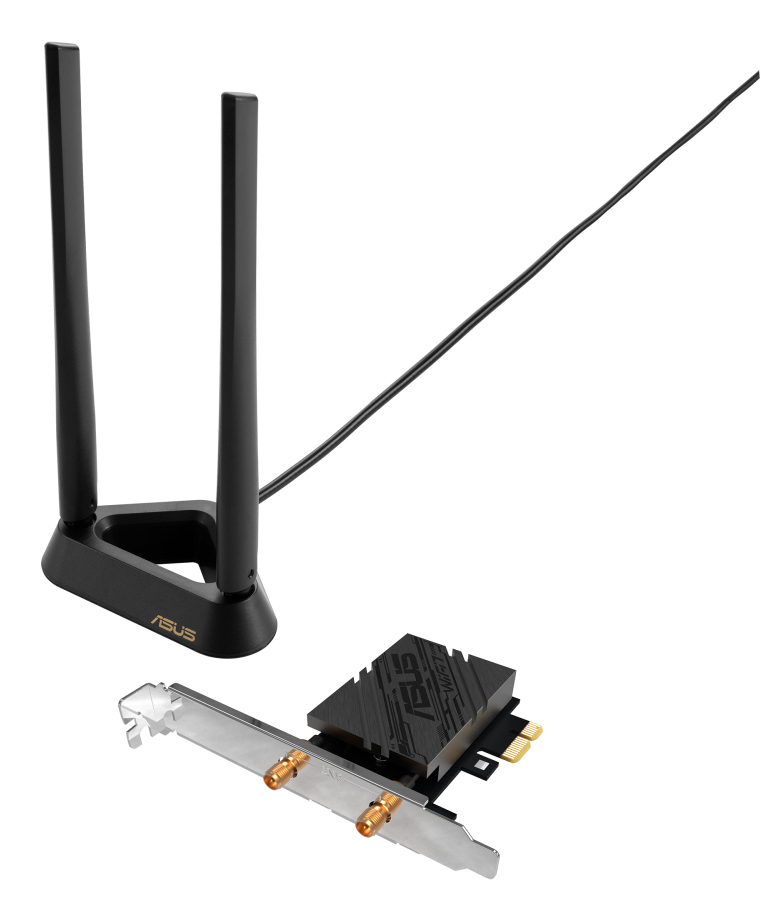

PCE-BE90BT Internal WLAN / Bluetooth 2882 Mbit/s
Model PCE-BE90BTPart no. 90IG09G0-MA0B1TEAN 197105733602
24 specifications
- Speed2882 Mbit/s
- ConnectivityWireless
- Weight85.2 g
- ColourBlack, Stainless steel
- InternalYes
- Width120.5 mm
Overview
- Speed
- 2882 Mbit/s
- Connectivity
- Wireless
- Weight
- 85.2 g
- Colour
- Black, Stainless steel
- Internal
- Yes
- Width
- 120.5 mm
- Brand
- ASUS
- Category
- Network Card
- Model
- PCE-BE90BT
- Part number
- 90IG09G0-MA0B1T
- EAN / UPC
- 197105733602
- Also known as
- ASUS PCE-BE90BT Internal WLAN / Bluetooth 2882 Mbit/s
Specifications
24 specifications in 6 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wireless |
| Host interface | PCI Express |
| Interface | WLAN / Bluetooth |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 2882 Mbit/s |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11n |
| Wi-Fi | Yes |
| Wi-Fi band | Tri-band (2.4 GHz / 5 GHz / 6 GHz) |
| Top Wi-Fi standard | Wi-Fi 7 (802.11be) |
| Wi-Fi standards | Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be) |
| Security algorithms | WPA3 |
| Bluetooth | Yes |
| Bluetooth version | 5.4 |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Component for | PC |
| Product colour | Black, Stainless steel |

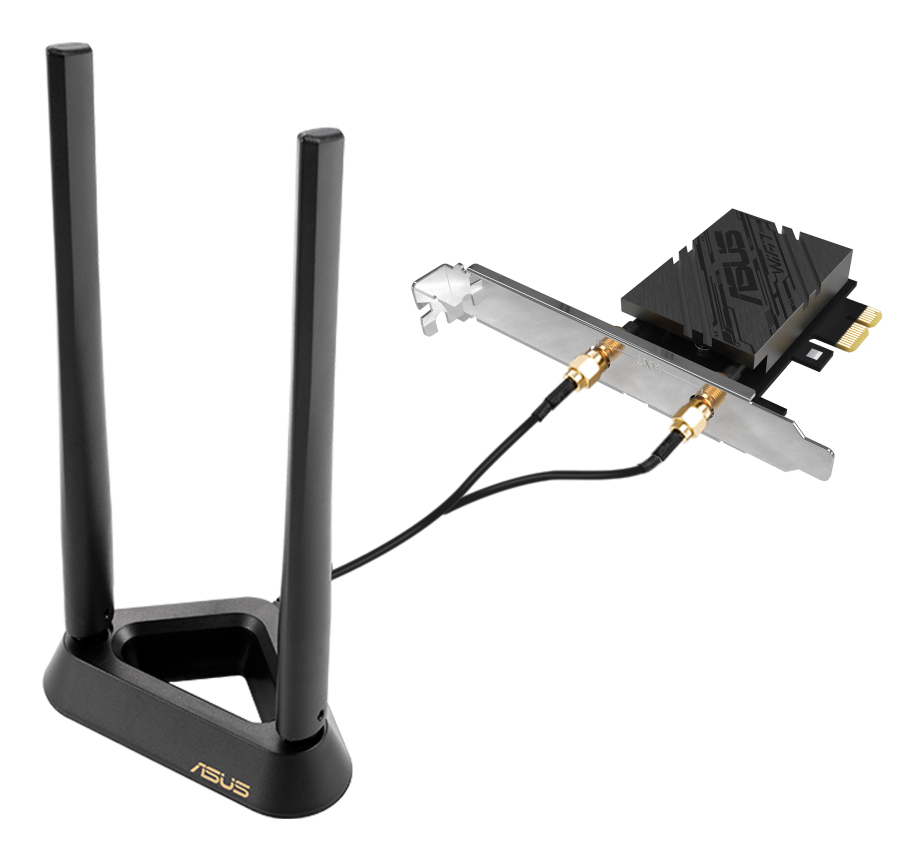

| Antenna | Yes |
| Antenna design | External |
| Antenna type | 1x1 |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education x64, Windows 11 Enterprise x64 |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 120.5 mm |
| Depth | 88.5 mm |
| Height | 21.6 mm |
| Weight | 85.2 g |
Packaging content
| Specification | Value |
|---|---|
| Quick installation guide | Yes |
