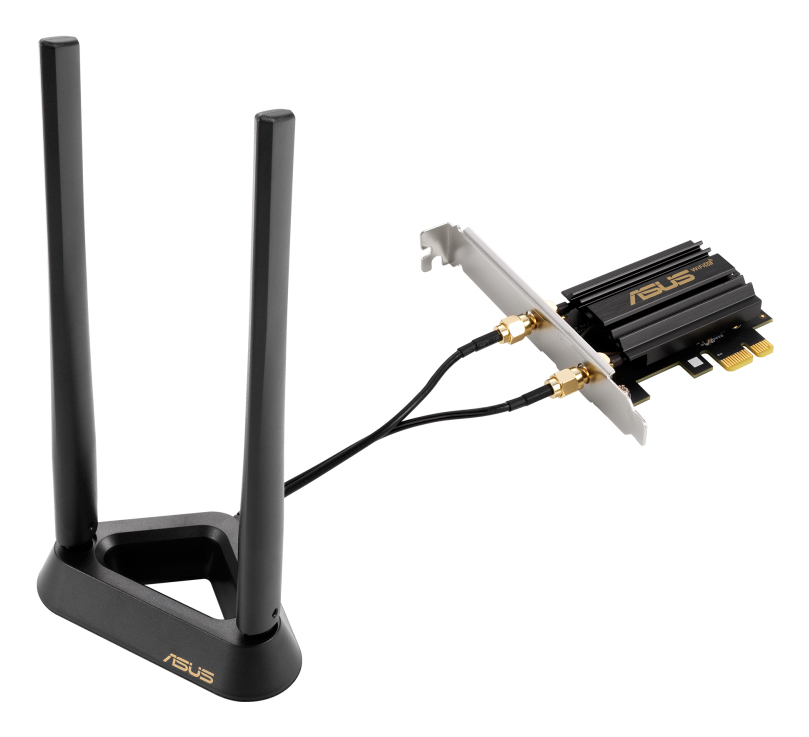

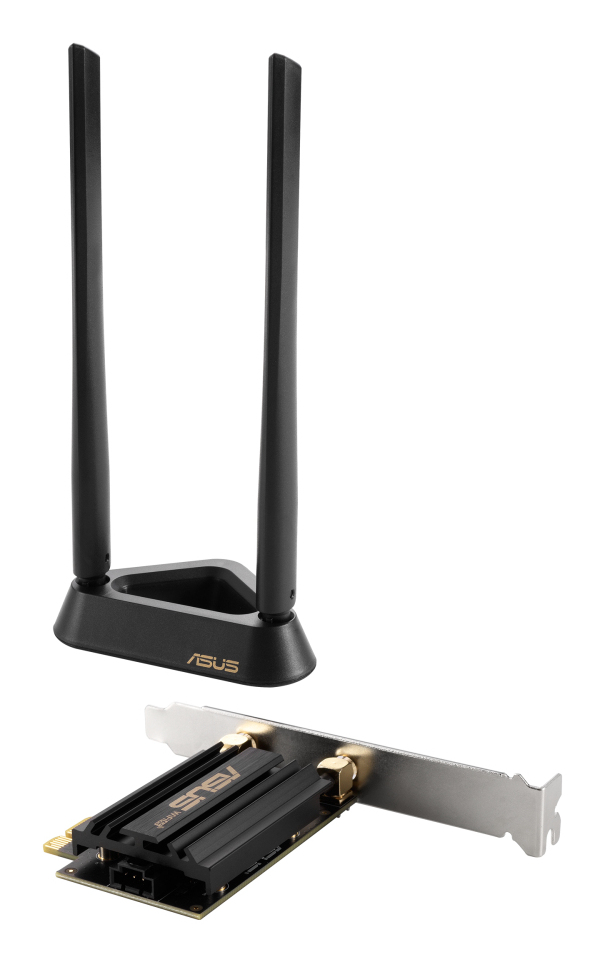

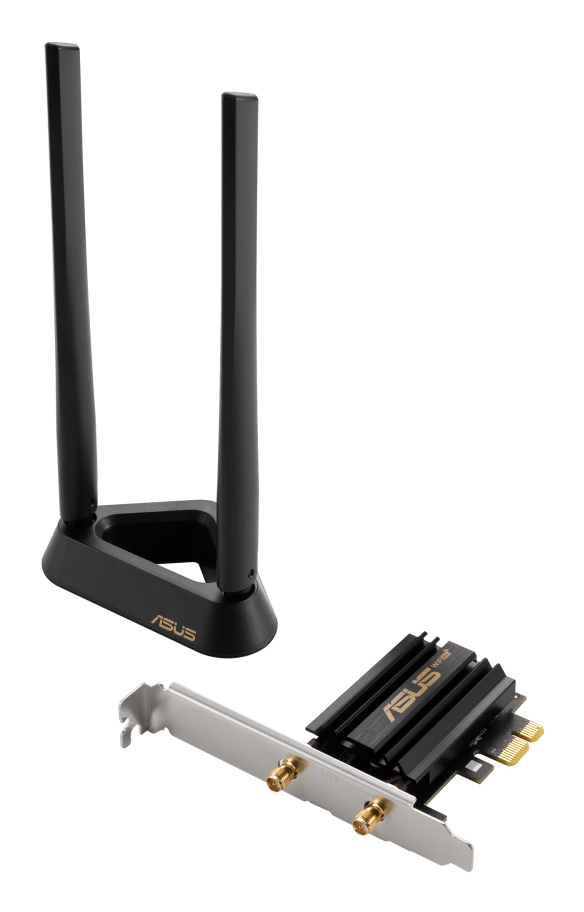

ASUS PCE-AXE58BT Internal WLAN / Bluetooth 2402 Mbit/s

PCE-AXE58BT Internal WLAN / Bluetooth 2402 Mbit/s

Model PCE-AXE58BTPart no. 90IG06Y0-MA0R4TEAN 195553255103

25 specifications

Speed2402 Mbit/s
ConnectivityWireless
Weight77.1 g
ColourBlack, Stainless steel
InternalYes
Width120.5 mm

See all specifications

Overview

Speed: 2402 Mbit/s
Connectivity: Wireless
Weight: 77.1 g
Colour: Black, Stainless steel
Internal: Yes
Width: 120.5 mm

Brand: ASUS
Category: Network Card
Model: PCE-AXE58BT
Part number: 90IG06Y0-MA0R4T
EAN / UPC: 195553255103
Also known as: ASUS PCE-AXE58BT Internal WLAN / Bluetooth 2402 Mbit/s

Specifications

25 specifications in 6 groups

Ports & interfaces

Specification	Value
Connectivity technology	Wireless
Host interface	PCI Express
Interface	WLAN / Bluetooth

Network

Specification	Value
Maximum data transfer rate	2402 Mbit/s
Networking standards	IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11be, IEEE 802.11n
Wi-Fi	Yes
Wi-Fi band	Tri-band (2.4 GHz / 5 GHz / 6 GHz)
Frequency range	2.4 - 6 GHz
Top Wi-Fi standard	Wi-Fi 7 (802.11be)
Wi-Fi standards	Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax), Wi-Fi 6E (802.11ax), Wi-Fi 7 (802.11be)
Security algorithms	WPA3
Bluetooth	Yes
Bluetooth version	5.4

Design

Specification	Value
Internal	Yes
Component for	PC
Product colour	Black, Stainless steel
Antenna	Yes
Antenna design	External

System requirements

Specification	Value
Windows operating systems supported	Windows 10 Education x64, Windows 11 Enterprise x64
Linux operating systems supported	Yes

Weight & dimensions

Specification	Value
Width	120.5 mm
Depth	88 mm
Height	21.6 mm
Weight	77.1 g

Packaging content

Specification	Value
Quick installation guide	Yes
