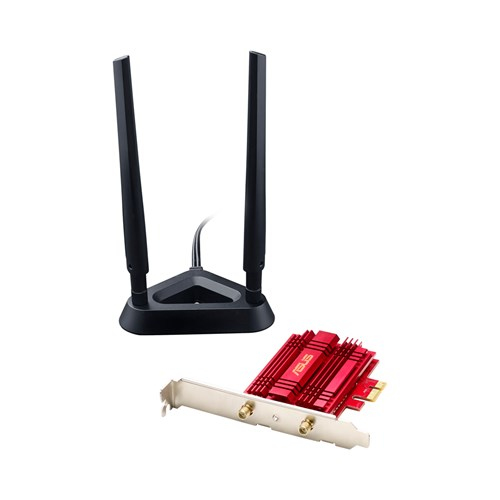

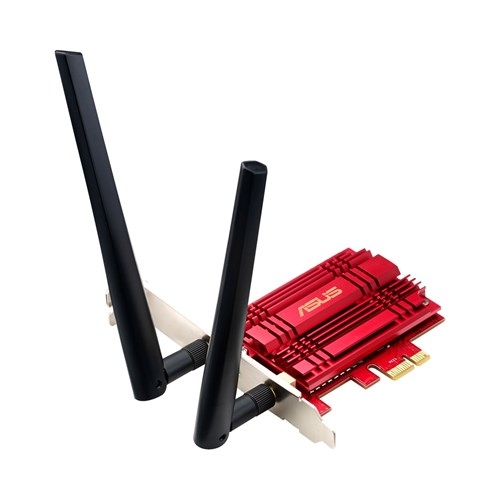

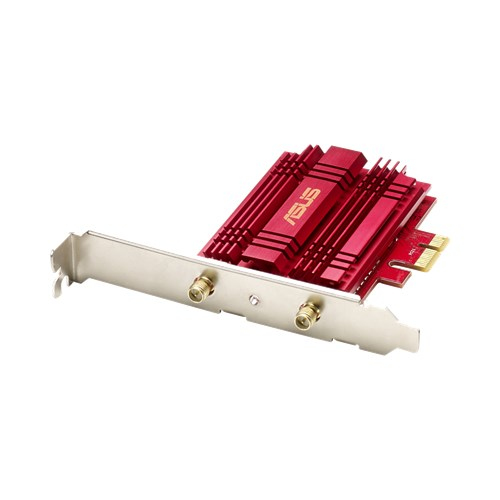

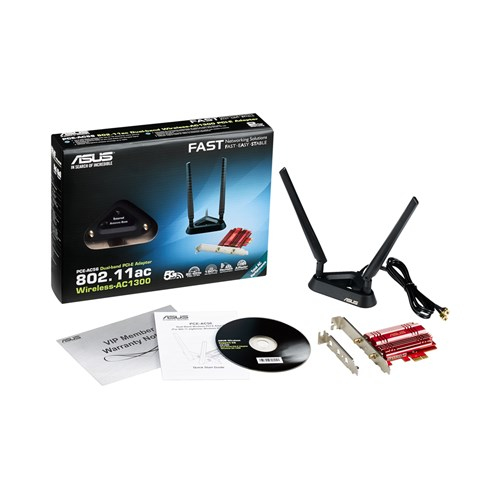

ASUS PCE-AC56 network card Internal WLAN 1300 Mbit/s

ASUS PCE-AC56 network card Internal WLAN 1300 Mbit/s

Model PCE-AC56Part no. 90IG00K0-BM0000EAN 5054629720608

30 specifications
  • Speed1300 Mbit/s
  • ConnectivityWireless
  • Weight105 g
  • ColourRed
  • InternalYes
  • Operating temperature (T-T)0 - 40 °C
See all specifications

Overview

Speed
1300 Mbit/s
Connectivity
Wireless
Weight
105 g
Colour
Red
Internal
Yes
Operating temperature (T-T)
0 - 40 °C
Brand
ASUS
Category
Network Card
Model
PCE-AC56
Part numbers
90IG00K0-BM0000, PCE-AC56
EAN / UPC
5054629720608, 012300426107, 724627231912, 731215289071 +10 more
Also known as
ASUS PCE-AC56 network card Internal WLAN 1300 Mbit/s

Specifications

30 specifications in 8 groups

Ports & interfaces

Connectivity technologyWireless
Host interfacePCI Express
InterfaceWLAN

Network

Maximum data transfer rate1300 Mbit/s
Networking standardsIEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
Wi-FiYes
Wi-Fi bandDual-band (2.4 GHz / 5 GHz)
Frequency range2.4 - 5 GHz
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi standards802.11a, Wi-Fi 5 (802.11ac), 802.11b, 802.11g, Wi-Fi 4 (802.11n)
WLAN data transfer rates supported1300 Mbit/s
Modulation16-QAM, 64-QAM, CCK, DBPSK, DQPSK, OFDM
Security algorithms64-bit WEP, 128-bit WEP, WPA-PSK, WPA2-PSK, WPS

Design

InternalYes
Product colourRed

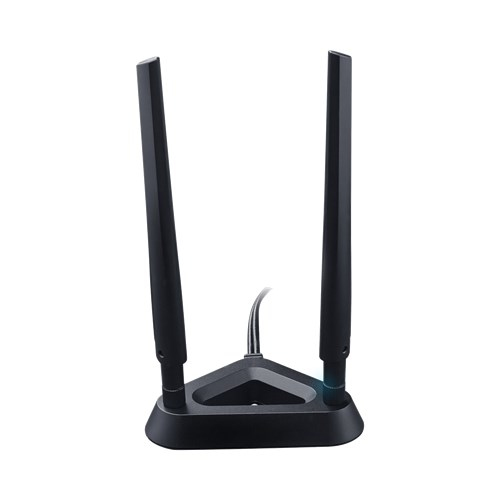

AntennaYes
Antenna designExternal
Antenna connector typeR-SMA
CertificationCE, FCC, C-Tick, IC

System requirements

Windows operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-20 - 65 °C
Operating relative humidity (H-H)10 - 90%
Storage relative humidity (H-H)10 - 90%

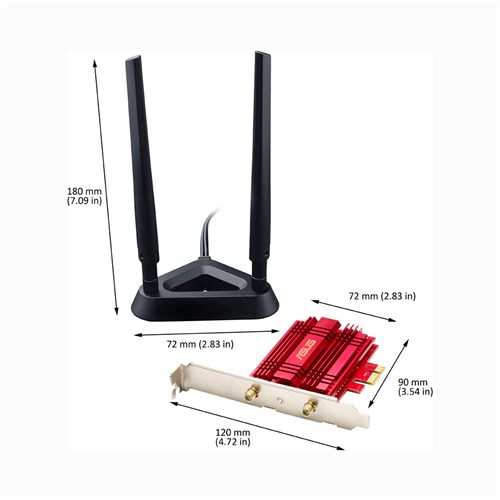

Weight & dimensions

Width99.1 mm
Depth120.9 mm
Height21.6 mm
Weight105 g

Packaging data

AC adapter includedYes

Other features

Antennas quantity2
