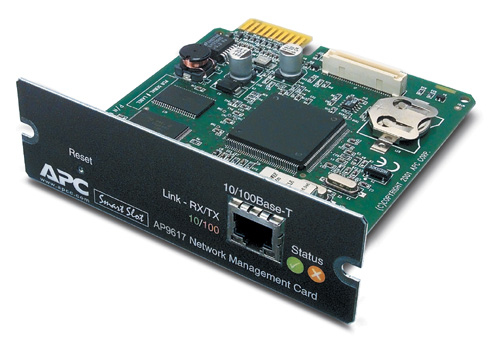

UPS Network Management Card
Model UPS Network Management CardPart no. AP9617EAN 731304122951
18 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight140 g
- Component forPC
- Operating temperature (T-T)0 - 45 °C
- Width121 mm
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 140 g
- Component for
- PC
- Operating temperature (T-T)
- 0 - 45 °C
- Width
- 121 mm
- Brand
- APC
- Category
- Network Card
- Model
- UPS Network Management Card
- Part number
- AP9617
- EAN / UPC
- 731304122951, 999992315608, 7313041229518
- Also known as
- APC UPS Network Management Card 100 Mbit/s
Specifications
18 specifications in 7 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PC Card |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Ethernet LAN | Yes |
Design
| Specification | Value |
|---|---|
| Component for | PC |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -15 - 65 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 121 mm |
| Depth | 108 mm |
| Height | 38 mm |
| Weight | 140 g |
Packaging data
| Specification | Value |
|---|---|
| Package weight | 910 g |
Other features
| Specification | Value |
|---|---|
| Dimensions (WxDxH) | 121 x 108 x 38 mm |
| Link/Act LED | Yes |
| Package dimensions (WxDxH) | 229 x 165 x 73 mm |
