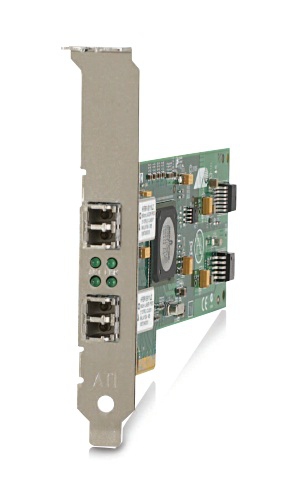

Allied Telesis AT-2973SX Internal Ethernet 1000 Mbit/s

Allied Telesis AT-2973SX Internal Ethernet 1000 Mbit/s

Model AT-2973SXPart no. AT-2973SX/LC-001EAN 5054629308882

29 specifications
  • Speed1000 Mbit/s
  • ConnectivityWired
  • Weight50 g
  • ColourSilver
  • InternalYes
  • Power consumption (typical)4.1 W
See all specifications

Overview

Speed
1000 Mbit/s
Connectivity
Wired
Weight
50 g
Colour
Silver
Internal
Yes
Power consumption (typical)
4.1 W
Brand
Allied Telesis
Category
Network Card
Model
AT-2973SX
Part number
AT-2973SX/LC-001
EAN / UPC
5054629308882, 7670351918816, 7670351918984
Also known as
Allied Telesis AT-2973SX Internal Ethernet 1000 Mbit/s

Specifications

29 specifications in 8 groups

Ports & interfaces

Connectivity technologyWired
Host interfacePCI Express
InterfaceEthernet

Network

Maximum data transfer rate1000 Mbit/s
Networking standardsIEEE 802.1p, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x
Wake-on-LAN readyYes
Full duplexYes
Web-based managementYes
Jumbo frames supportYes

Design

InternalYes
Component forPC
Product colourSilver
CertificationRoHS, UL, FCC/EN55022, TUV, EN55024, CE, C-Tick, VCCI.

Power

Power consumption (typical)4.1 W

System requirements

Compatible operating systemsCitrix XenServer, Windows 2003/2003 64-bit, 2008/2008 64-bit, Windows 7, Windows Hyper-V; Linux 2.6, VMware, Solaris, NetWare.

Operational conditions

Operating temperature (T-T)0 - 40 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 90%

Weight & dimensions

Width144.7 mm
Depth144.7 mm
Height56.1 mm
Weight50 g

Other features

Compliance industry standardsIEEE 802.3ad/ab/x/ac, 802.1p/Q
Power requirements3.3 V
Flow control supportYes
Dimensions (WxDxH)144.7 x 144.7 x 56.1 mm
Link/Act LEDYes
Management protocolsWMI, ACPI 1.1, PXE 2.1 Boot ROM, SNMP
PCI BusPCIe x4
