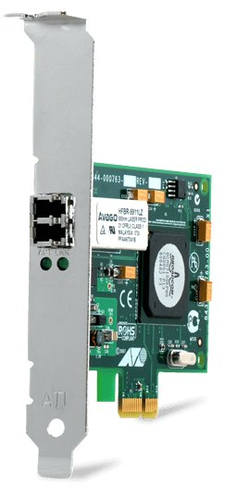

Allied Telesis AT-2914SX/SC-001 network card Internal Fiber 1000 Mbit/s

Allied Telesis AT-2914SX/SC-001 network card Internal Fiber 1000 Mbit/s

Model AT-2914SX/SC-001EAN 767035210612

29 specifications
  • Speed1000 Mbit/s
  • ConnectivityWired
  • Weight68 g
  • ColourGreen, Metallic
  • InternalYes
  • Power consumption (typical)1.7 W
See all specifications

Overview

Speed
1000 Mbit/s
Connectivity
Wired
Weight
68 g
Colour
Green, Metallic
Internal
Yes
Power consumption (typical)
1.7 W
Brand
Allied Telesis
Category
Network Card
Model
AT-2914SX/SC-001
Part number
AT-2914SX/SC-001
EAN / UPC
767035210612
Also known as
Allied Telesis AT-2914SX/SC-001 network card Internal Fiber 1000 Mbit/s

Specifications

29 specifications in 9 groups

Ports & interfaces

Connectivity technologyWired
Host interfacePCI Express
InterfaceFiber
Fiber optic connectorSC
Fiber ports quantity2

Network

Maximum data transfer rate1000 Mbit/s
Networking standardsIEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3x, IEEE 802.3z
Fiber ethernet cabling technology1000BASE-X
Security algorithmsSNMP
Wake-on-LAN readyYes
Auto-negotiationYes
Jumbo frames9.6
Jumbo frames supportYes
Load balancing systemYes
Quality of Service (QoS) supportYes

Design

InternalYes
Product colourGreen, Metallic
CertificationUL, FCC/EN55022 Class A, TUV, EN55024, CE, C-TICK, VCCI

Power

Power consumption (typical)1.7 W

System requirements

Windows operating systems supportedWindows 10, Windows 7, Windows 8, Windows Vista
Server operating systems supportedWindows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2012 R2 x64, Windows Server 2012 x64

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)-25 - 70%

Weight & dimensions

Width88 mm
Height69 mm
Weight68 g

Technical details

Compliance certificatesRoHS

Other features

Flow control supportYes
