Allied Telesis AT-2911T/2 Internal Ethernet 1000 Mbit/s
Model AT-2911T/2Part no. AT-2911T/2-901EAN 767035197678
29 specifications
- Speed1000 Mbit/s
- ConnectivityWired
- Weight68 g
- InternalYes
- Output voltage3.3 V
- Operating temperature (T-T)0 - 40 °C
Overview
- Speed
- 1000 Mbit/s
- Connectivity
- Wired
- Weight
- 68 g
- Internal
- Yes
- Output voltage
- 3.3 V
- Operating temperature (T-T)
- 0 - 40 °C
- Brand
- Allied Telesis
- Category
- Network Card
- Model
- AT-2911T/2
- Part number
- AT-2911T/2-901
- EAN / UPC
- 767035197678, 7670351976786
- Also known as
- Allied Telesis AT-2911T/2 Internal Ethernet 1000 Mbit/s
Specifications
29 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| PCI version | 2.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.2, IEEE 802.3ab, IEEE 802.3ac, IEEE 802.3ad, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z |
| Ethernet LAN | Yes |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Jumbo frames support | Yes |
| Quality of Service (QoS) support | Yes |
| VLAN tagging | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| Certification | UL, FCC/EN55022, TUV, EN55024, CE, C-TICK, VCCI |
Power
| Specification | Value |
|---|---|
| Output voltage | 3.3 V |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows |
| Linux operating systems supported | Yes |
| Server operating systems supported | Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 R2 x64, Windows Server 2008 x64, Windows Server 2012, Windows Server 2012 R2, Windows Server 2012 R2 x64, Windows Server 2012 x64 |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 88 mm |
| Height | 69 mm |
| Weight | 68 g |
Packaging data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Compare Allied Telesis AT-2911T/2 Internal Ethernet 1000 Mbit/s
Compare any products- Allied Telesis AT-2911T/2 Internal Ethernet 1000 Mbit/s vsAllied Telesis AT-2911LX/SC network card Internal Fiber 1000 Mbit/sCompare specs

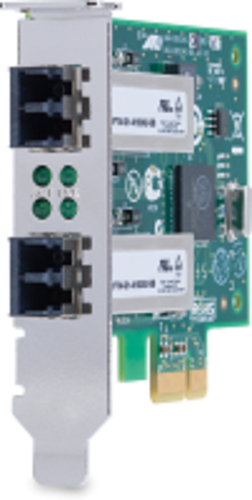

- Allied Telesis AT-2911T/2 Internal Ethernet 1000 Mbit/s vsAllied Telesis AT-2911LX/LC network card Internal Fiber 1000 Mbit/sCompare specs

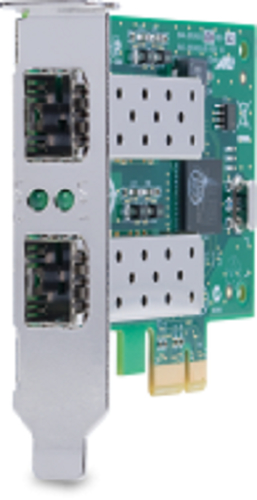

- Allied Telesis AT-2911T/2 Internal Ethernet 1000 Mbit/s vsAllied Telesis AT-2911SFP/2-901 network card Internal Fiber 1000 Mbit/sCompare specs
- Allied Telesis AT-2911T/2 Internal Ethernet 1000 Mbit/s vsAllied Telesis AT-2911LX/2LC-901 network card Internal Ethernet 1000 Mbit/sCompare specs

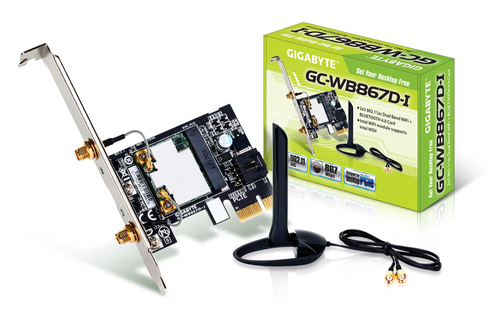

- Allied Telesis AT-2911T/2 Internal Ethernet 1000 Mbit/s vsGIGABYTE GC-WB867D-I network card Internal WLAN / Bluetooth 867 Mbit/sCompare specs

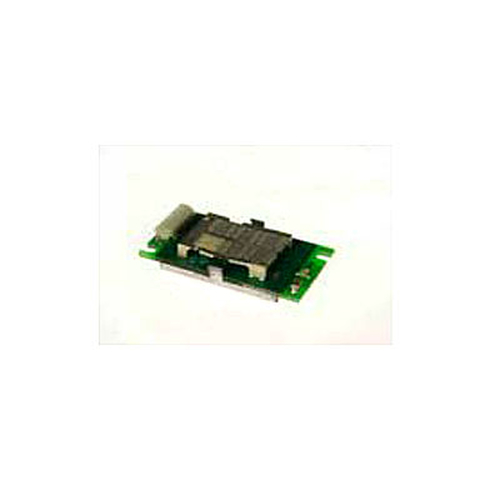

- Allied Telesis AT-2911T/2 Internal Ethernet 1000 Mbit/s vsAcer 54.A14V5.004 network card Internal BluetoothCompare specs

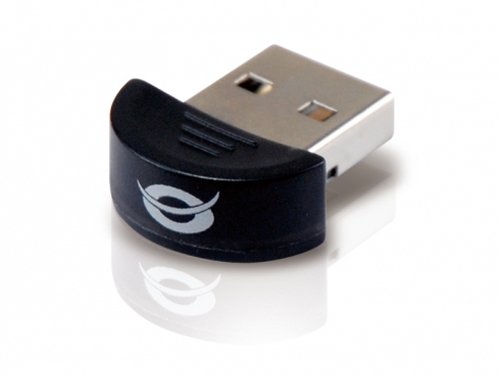

- Allied Telesis AT-2911T/2 Internal Ethernet 1000 Mbit/s vsConceptronic Bluetooth 4.0 Nano USB Adapter 100MCompare specs

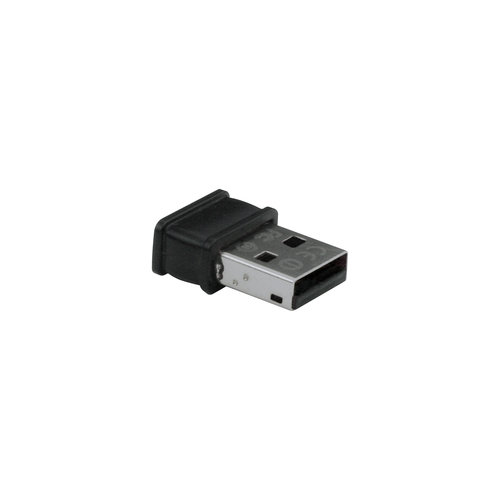

- Allied Telesis AT-2911T/2 Internal Ethernet 1000 Mbit/s vsARCTIC Wifi N150Compare specs
