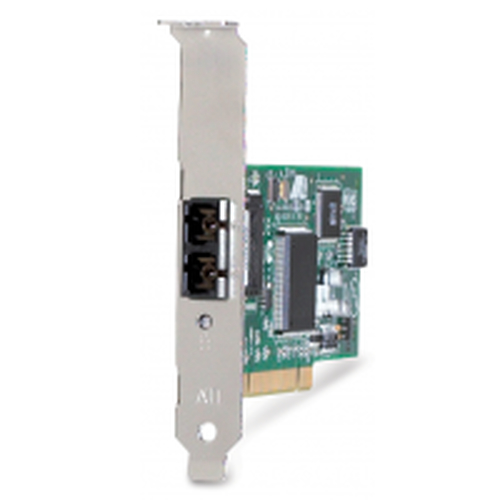

Allied Telesis AT-2711FX/LC-901 network card Internal Fiber 100 Mbit/s
Model AT-2711FX/LC-901EAN 092897314636
34 specifications
- Speed100 Mbit/s
- ConnectivityWired
- Weight50 g
- InternalYes
- Power consumption (typical)2 W
- Operating temperature (T-T)0 - 50 °C
Overview
- Speed
- 100 Mbit/s
- Connectivity
- Wired
- Weight
- 50 g
- Internal
- Yes
- Power consumption (typical)
- 2 W
- Operating temperature (T-T)
- 0 - 50 °C
- Brand
- Allied Telesis
- Category
- Network Card
- Model
- AT-2711FX/LC-901
- Part number
- AT-2711FX/LC-901
- EAN / UPC
- 092897314636, 767035196534, 5715063681763, 7670351965346
- Also known as
- Allied Telesis AT-2711FX/LC-901 network card Internal Fiber 100 Mbit/s
Specifications
34 specifications in 10 groups
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber optic connector | LC |
| Fiber ports quantity | 1 |
| PCI version | 1.0 |
Network
| Specification | Value |
|---|---|
| Maximum data transfer rate | 100 Mbit/s |
| Networking standards | IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.2, IEEE 802.3ac, IEEE 802.3u, IEEE 802.3x |
| Ethernet LAN | Yes |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100BaseT(X) |
| Security algorithms | SNMP |
| Wake-on-LAN ready | Yes |
| Full duplex | Yes |
| Jumbo frames support | Yes |
| Quality of Service (QoS) support | Yes |
| VLAN tagging | Yes |
Design
| Specification | Value |
|---|---|
| Internal | Yes |
| LED indicators | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (typical) | 2 W |
System requirements
| Specification | Value |
|---|---|
| Windows operating systems supported | Windows 2000, Windows 2000 Professional, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimat |
| Linux operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -25 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 121 mm |
| Height | 69 mm |
| Weight | 50 g |
Technical details
| Specification | Value |
|---|---|
| Compliance certificates | RoHS |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
Other features
| Specification | Value |
|---|---|
| Flow control support | Yes |
| ACPI version | 2.0 |
| Receive Side Scaling (RSS) | Yes |
Compare Allied Telesis AT-2711FX/LC-901 network card Internal Fiber 100 Mbit/s

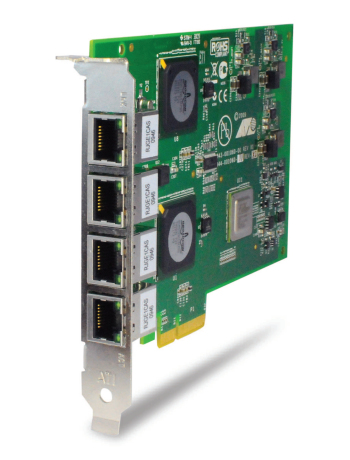

Compare any products- Allied Telesis AT-2711FX/LC-901 network card Internal Fiber 100 Mbit/s vsAllied Telesis AT-2973T/4 Internal Ethernet 1000 Mbit/sCompare specs
- Allied Telesis AT-2711FX/LC-901 network card Internal Fiber 100 Mbit/s vsAllied Telesis AT-2701LX20/SC Internal Fiber 100 Mbit/sCompare specs
- Allied Telesis AT-2711FX/LC-901 network card Internal Fiber 100 Mbit/s vsAllied Telesis AT-2911SX/SC-901 network card Internal Fiber 1000 Mbit/sCompare specs
- Allied Telesis AT-2711FX/LC-901 network card Internal Fiber 100 Mbit/s vsAllied Telesis AT-2911SX/LC-901 network card Internal Fiber 1000 Mbit/sCompare specs

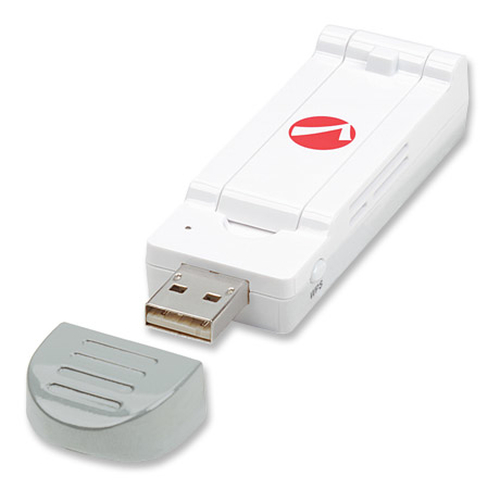

- Allied Telesis AT-2711FX/LC-901 network card Internal Fiber 100 Mbit/s vsIntellinet 525275 network card WLAN 450 Mbit/sCompare specs

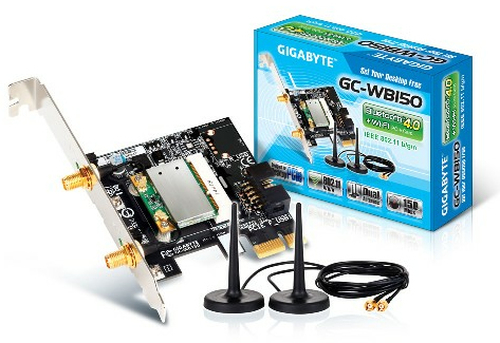

- Allied Telesis AT-2711FX/LC-901 network card Internal Fiber 100 Mbit/s vsGIGABYTE GC-WB150 network card Internal WLAN / Bluetooth 150 Mbit/sCompare specs

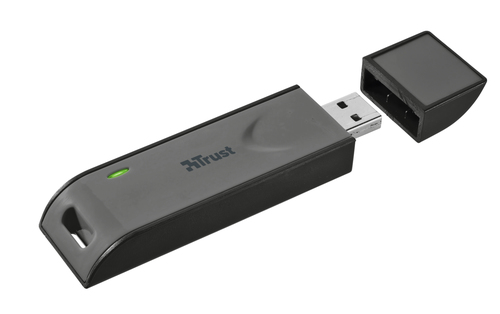

- Allied Telesis AT-2711FX/LC-901 network card Internal Fiber 100 Mbit/s vsTrust 300N WLAN 300 Mbit/sCompare specs

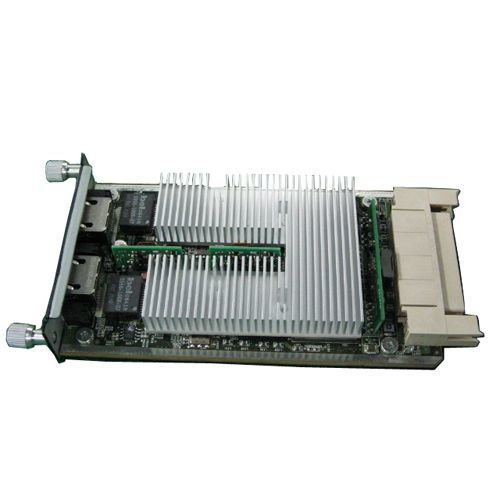

- Allied Telesis AT-2711FX/LC-901 network card Internal Fiber 100 Mbit/s vsDell 409-10137 network card Internal Ethernet 10000 Mbit/sCompare specs
