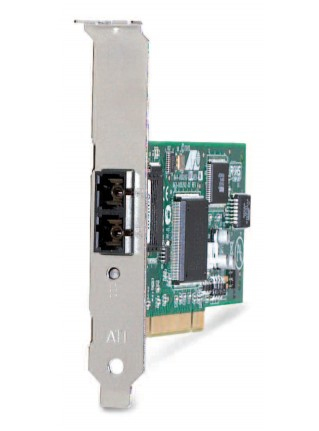

Allied Telesis AT-2701LX20 Internal Fiber 100 Mbit/s

Allied Telesis AT-2701LX20 Internal Fiber 100 Mbit/s

Model AT-2701LX20Part no. AT-2701LX20/SC-001EAN 767035193496

27 specifications
  • Speed100 Mbit/s
  • ConnectivityWired
  • InternalYes
  • Output voltage3.3 V
  • Operating temperature (T-T)0 - 50 °C
  • Width168 mm
See all specifications

Overview

Speed
100 Mbit/s
Connectivity
Wired
Internal
Yes
Output voltage
3.3 V
Operating temperature (T-T)
0 - 50 °C
Width
168 mm
Brand
Allied Telesis
Category
Network Card
Model
AT-2701LX20
Part number
AT-2701LX20/SC-001
EAN / UPC
767035193496, 767035193502
Also known as
Allied Telesis AT-2701LX20 Internal Fiber 100 Mbit/s

Specifications

27 specifications in 9 groups

Ports & interfaces

Connectivity technologyWired
Host interfacePCI
InterfaceFiber
Fiber optic connectorSC
Fiber ports quantity2

Network

Maximum data transfer rate100 Mbit/s
Networking standardsIEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3, IEEE 802.3ac, IEEE 802.3u
Ethernet LAN data rates10,100 Mbit/s
Fiber ethernet cabling technology100BASE-FX
Wake-on-LAN readyYes
Full duplexYes
Supported network protocolsTCP/IP, IPv6
LAN controllerAMD AM79C976

Design

InternalYes
LED indicatorsActivity, Link
CertificationUL, FCC/EN55022 B, TUV, EN55024, CE, C-TICK, VCCI

Power

Output voltage3.3 V
Power consumption (typical)2 W

System requirements

Windows operating systems supportedWindows 2000, Windows 7 Home Premium, Windows Vista Home Premium, Windows XP Home
Linux operating systems supportedYes

Operational conditions

Operating temperature (T-T)0 - 50 °C
Storage temperature (T-T)-25 - 70 °C
Operating relative humidity (H-H)5 - 90%

Weight & dimensions

Width168 mm
Height65 mm

Technical details

Compliance certificatesRoHS

Other features

Management protocolsWMI, ACPI 2.0, PXE 2.1 Boot ROM
