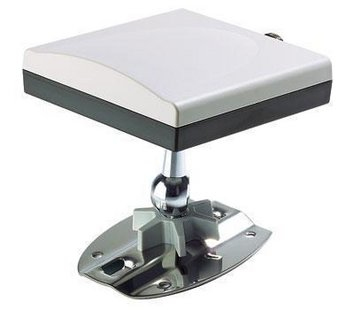

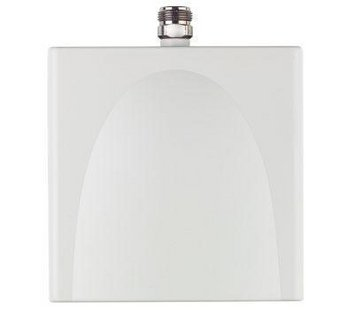

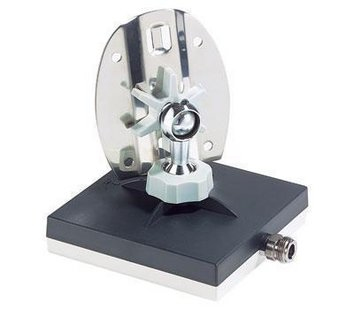

Ext 109
Model Ext 109Part no. EXT 109
16 specifications
- Weight107 g
- ColourWhite
- Antenna gain level (max)9 dBi
- Antenna typeDirectional antenna
- Operating temperature (T-T)-40 - 80 °C
- Width114 mm
Overview
- Weight
- 107 g
- Colour
- White
- Antenna gain level (max)
- 9 dBi
- Antenna type
- Directional antenna
- Operating temperature (T-T)
- -40 - 80 °C
- Width
- 114 mm
- Brand
- Zyxel
- Category
- Network Antenna
- Model
- Ext 109
- Part number
- EXT 109
- Also known as
- Zyxel Ext 109 network antenna Directional antenna N-type 9 dBi
Specifications
16 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 9 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Impedance | 50 Ω |
| Horizontal beam width | 65° |
| Vertical beam width | 60° |
Features
| Specification | Value |
|---|---|
| Antenna type | Directional antenna |
| Antenna connector type | N-type |
| Polarization | Vertical polarization |
| Product colour | White |
| Power handling | 20 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -40 - 80 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 114 mm |
| Depth | 114 mm |
| Height | 40 mm |
| Weight | 107 g |
