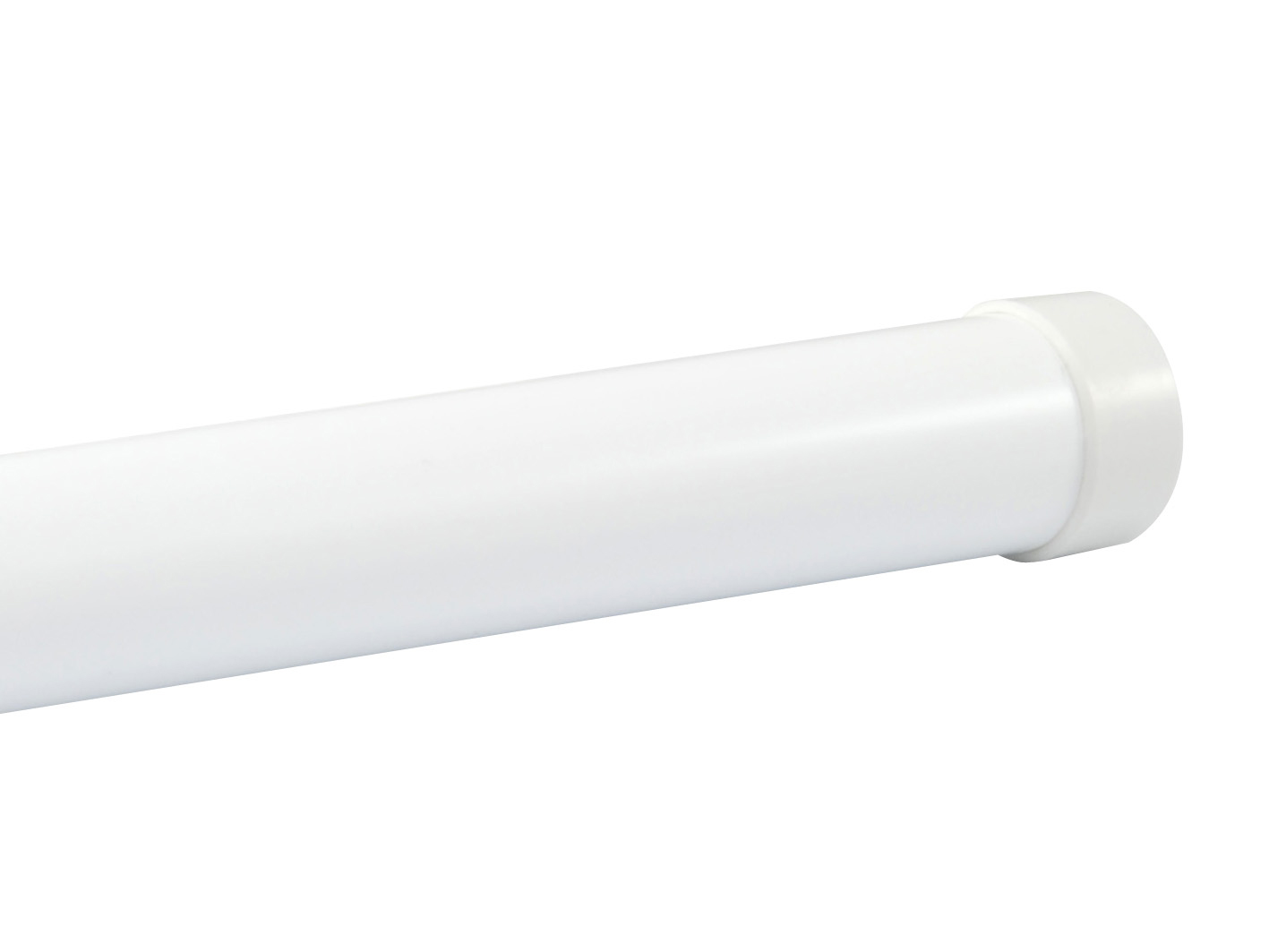

5dBi/8dBi 2.4GHz/5GHz Dual Band Omnidirectional Antenna, Indoor/Outdoor
Model OAN-4058EAN 846359050668
37 specifications
- Weight860 g
- ColourWhite
- Antenna gain level (max)8 dBi
- Antenna typeOmni-directional antenna
- Operating temperature (T-T)-30 - 60 °C
- Width22 mm
Overview
- Weight
- 860 g
- Colour
- White
- Antenna gain level (max)
- 8 dBi
- Antenna type
- Omni-directional antenna
- Operating temperature (T-T)
- -30 - 60 °C
- Width
- 22 mm
- Brand
- LevelOne
- Category
- Network Antenna
- Model
- OAN-4058
- Part number
- OAN-4058
- EAN / UPC
- 846359050668, 4015867205020
- Also known as
- LevelOne 5dBi/8dBi 2.4GHz/5GHz Dual Band Omnidirectional Antenna, Indoor/Outdoor
Specifications
37 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 8 dBi |
| Frequency band | 2.4 - 5 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Gain | 5 / 8 dBi |
| Antenna gain (2.4 GHz) | 5 dBi |
| Antenna gain (5 GHz) | 8 dBi |
| Impedance | 50 Ω |
| Horizontal beam width (2.4 GHz) | 360° |
| Vertical beam width (2.4 GHz) | 51.7° |
| Horizontal beam width (5 GHz) | 360° |
| Vertical beam width (5 GHz) | 27.7° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |

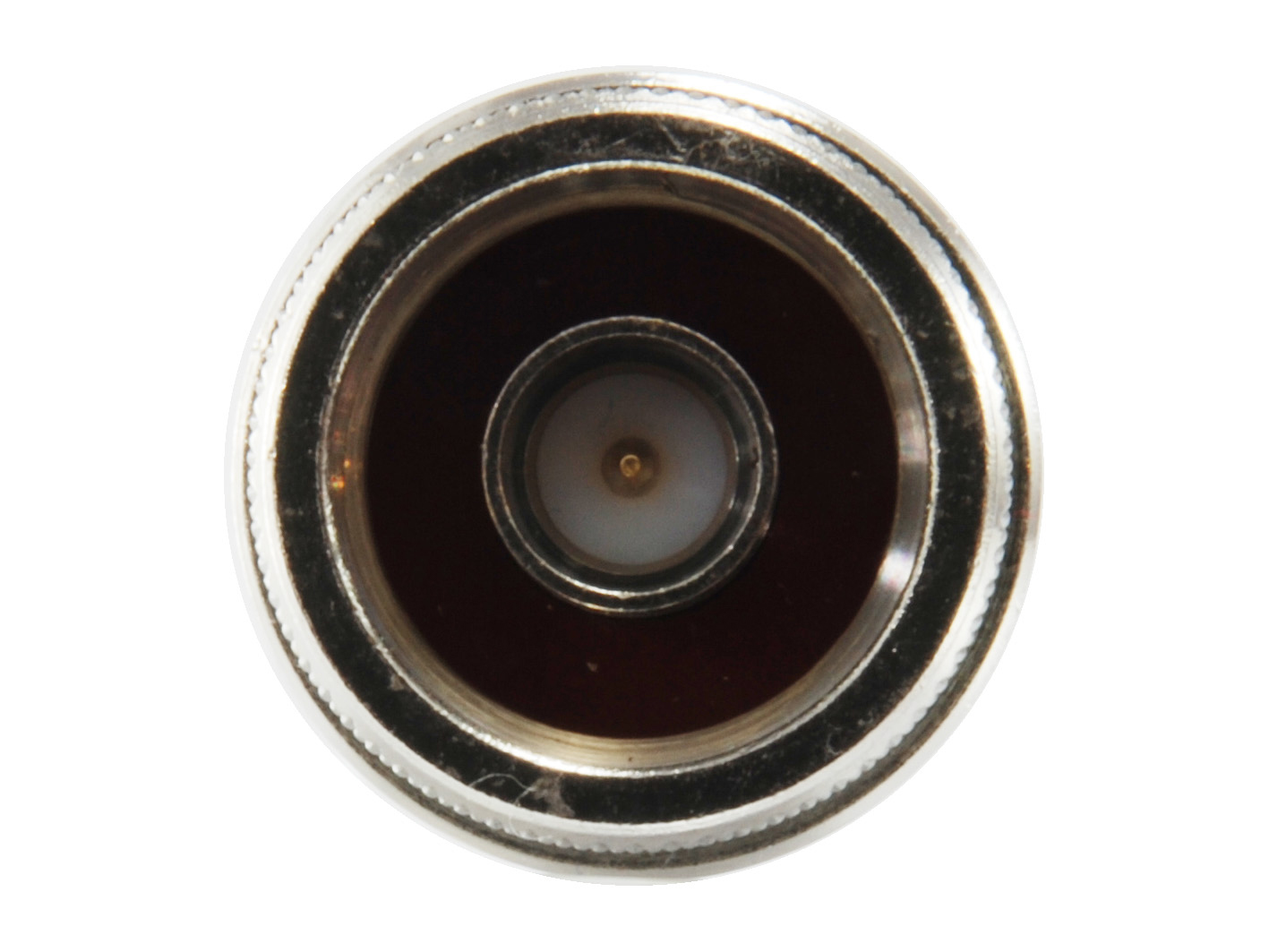

| Antenna connector type | N-type |
| Connector gender | Female |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2 |
| Product colour | White |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 22 mm |
| Depth | 203 mm |
| Height | 22 mm |
| Weight | 860 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 70 mm |
| Package depth | 60 mm |
| Package height | 265 mm |
| Package weight | 192 g |
| Package type | Blister |
Packaging content
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85177100 |
| Country of origin | Taiwan |
| Master (outer) case width | 480 mm |
| Master (outer) case length | 560 mm |
| Master (outer) case height | 290 mm |
| Master (outer) case gross weight | 11 kg |
| Master (outer) case volume | 50 cm³ |
| Products per master (outer) case | 50 pc(s) |
