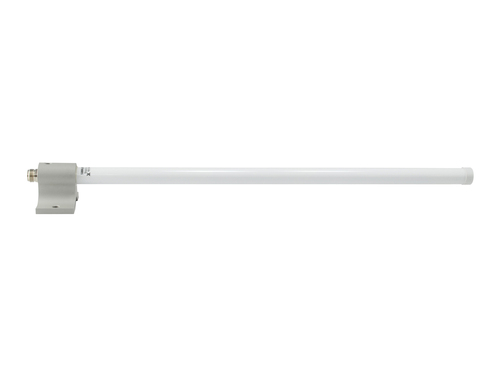

12dBi 5GHz Omnidirectional Antenna, Indoor/Outdoor
Model OAN-4121EAN 4015867203200
36 specifications
- Weight300 g
- ColourWhite
- Antenna gain level (max)12 dBi
- Antenna typeOmni-directional antenna
- Operating temperature (T-T)-30 - 60 °C
- Width70 mm
Overview
- Weight
- 300 g
- Colour
- White
- Antenna gain level (max)
- 12 dBi
- Antenna type
- Omni-directional antenna
- Operating temperature (T-T)
- -30 - 60 °C
- Width
- 70 mm
- Brand
- LevelOne
- Category
- Network Antenna
- Model
- OAN-4121
- Part number
- OAN-4121
- EAN / UPC
- 4015867203200
- Also known as
- LevelOne 12dBi 5GHz Omnidirectional Antenna, Indoor/Outdoor
Specifications
36 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 12 dBi |
| Frequency band | 5.45 ~ 5.835 GHz |
| Networking standards | IEEE 802.11a, IEEE 802.11n |
| Impedance | 50 Ω |
| Horizontal beam width | 360° |
| Vertical beam width | 17.5° |
Features
| Specification | Value |
|---|---|
| Antenna type | Omni-directional antenna |

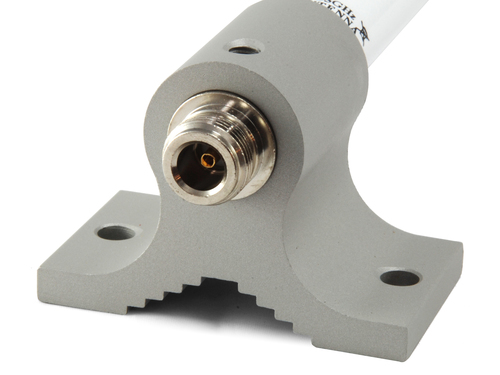

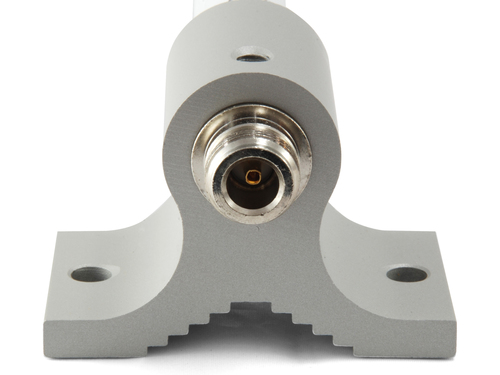

| Antenna connector type | N-type |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0 |
| Product colour | White |
| Protection features | Dust resistant, Snow resistant, Water resistant |
| Survival wind speed | 180 km/h |
| Maximum cable loss with connectors | -10 dB |
| Mounting | Pole |
| Purpose | Indoor & outdoor |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 70 mm |
| Depth | 558.5 mm |
| Height | 53 mm |
| Weight | 300 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 83 mm |
| Package depth | 650 mm |
| Package height | 72 mm |
| Package weight | 504 g |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|

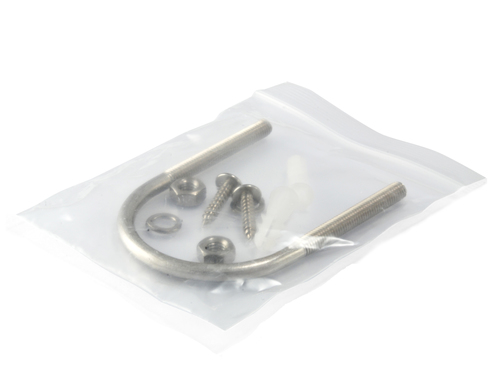

| Mounting kit | Yes |
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85177100 |
| Country of origin | Taiwan |
| Master (outer) case width | 385 mm |
| Master (outer) case length | 205 mm |
| Master (outer) case height | 670 mm |
| Master (outer) case gross weight | 6 kg |
| Products per master (outer) case | 10 pc(s) |
