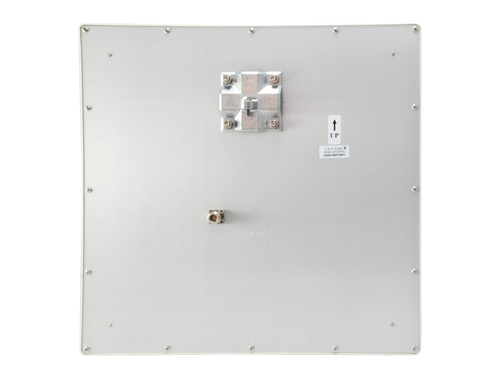

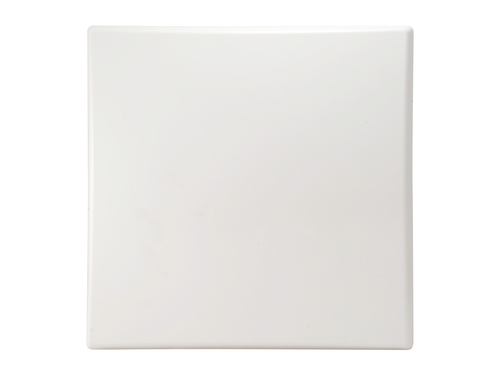

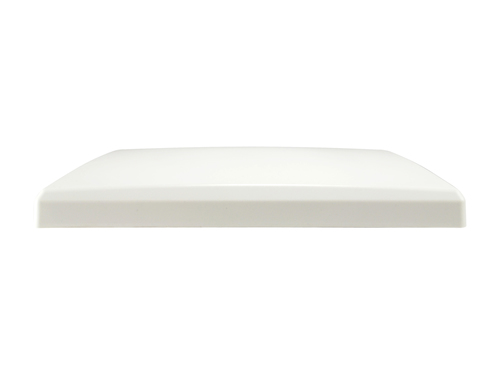

20dBi 2.4GHz Directional Panel Antenna, Indoor/Outdoor
Model WAN-2201EAN 4015867203552
35 specifications
- Weight1.68 kg
- ColourGrey
- Antenna gain level (max)20 dBi
- Antenna typeDirectional antenna
- Operating temperature (T-T)-30 - 60 °C
- Width410 mm
Overview
- Weight
- 1.68 kg
- Colour
- Grey
- Antenna gain level (max)
- 20 dBi
- Antenna type
- Directional antenna
- Operating temperature (T-T)
- -30 - 60 °C
- Width
- 410 mm
- Brand
- LevelOne
- Category
- Network Antenna
- Model
- WAN-2201
- Part number
- WAN-2201
- EAN / UPC
- 4015867203552
- Also known as
- LevelOne 20dBi 2.4GHz Directional Panel Antenna, Indoor/Outdoor
Specifications
35 specifications in 7 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 20 dBi |
| Frequency band | 2.3 ~ 2.7 GHz |
| Networking standards | IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Impedance | 50 Ω |
| Horizontal beam width | 20° |
| Vertical beam width | 20° |
Features
| Specification | Value |
|---|---|
| Antenna type | Directional antenna |
| Antenna connector type | N-type |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 2.0 |
| Product colour | Grey |
| Protection features | Dust resistant, Snow resistant, Water resistant |
| Survival wind speed | 180 km/h |
| Maximum cable loss with connectors | -10 dB |
| Purpose | Indoor & outdoor |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -30 - 60 °C |
| Operating relative humidity (H-H) | 0 - 95% |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 410 mm |
| Depth | 410 mm |
| Height | 44 mm |
| Weight | 1.68 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 415 mm |
| Package depth | 515 mm |
| Package height | 100 mm |
| Package weight | 2.87 kg |
| Package type | Box |
Packaging content
| Specification | Value |
|---|---|
| Mounting kit | Yes |
| Quick installation guide | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85177100 |
| Country of origin | Taiwan |
| Master (outer) case width | 530 mm |
| Master (outer) case length | 430 mm |
| Master (outer) case height | 430 mm |
| Master (outer) case gross weight | 16 kg |
| Products per master (outer) case | 5 pc(s) |
