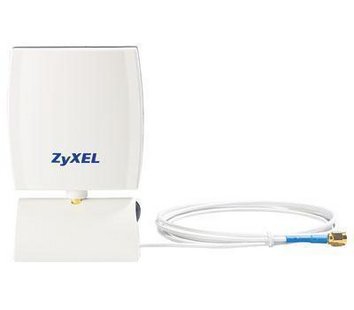

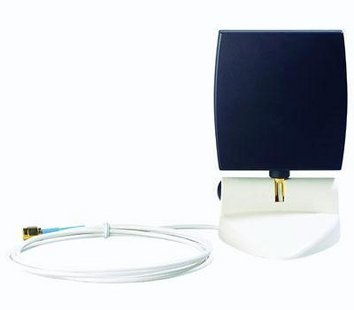

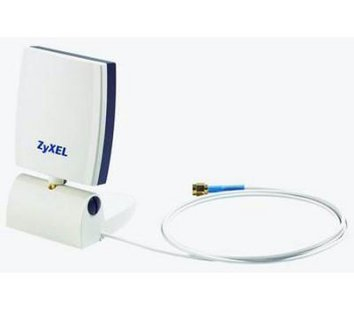

EXT 106
Model EXT 106
16 specifications
- Weight110 g
- Antenna gain level (max)6 dBi
- Antenna typeDirectional antenna
- Operating temperature (T-T)-10 - 55 °C
- Width118 mm
Overview
- Weight
- 110 g
- Antenna gain level (max)
- 6 dBi
- Antenna type
- Directional antenna
- Operating temperature (T-T)
- -10 - 55 °C
- Width
- 118 mm
- Brand
- Zyxel
- Category
- Network Antenna
- Model
- EXT 106
- Part number
- EXT 106
- Also known as
- Zyxel EXT 106 network antenna Directional antenna RP-SMA 6 dBi
Specifications
16 specifications in 4 groups
Performance
| Specification | Value |
|---|---|
| Antenna gain level (max) | 6 dBi |
| Frequency band | 2.4 - 2.5 GHz |
| Impedance | 50 Ω |
Features
| Specification | Value |
|---|---|
| Antenna type | Directional antenna |
| Antenna connector type | RP-SMA |
| Connector gender | Male |
| Polarization | Vertical polarization |
| Voltage Standing Wave Ratio (VSWR) | 1.5 |
| Cable length | 1.5 m |
| Mounting | Wall |
| Purpose | Indoor |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | -10 - 55 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 118 mm |
| Depth | 86 mm |
| Height | 76 mm |
| Weight | 110 g |
